36

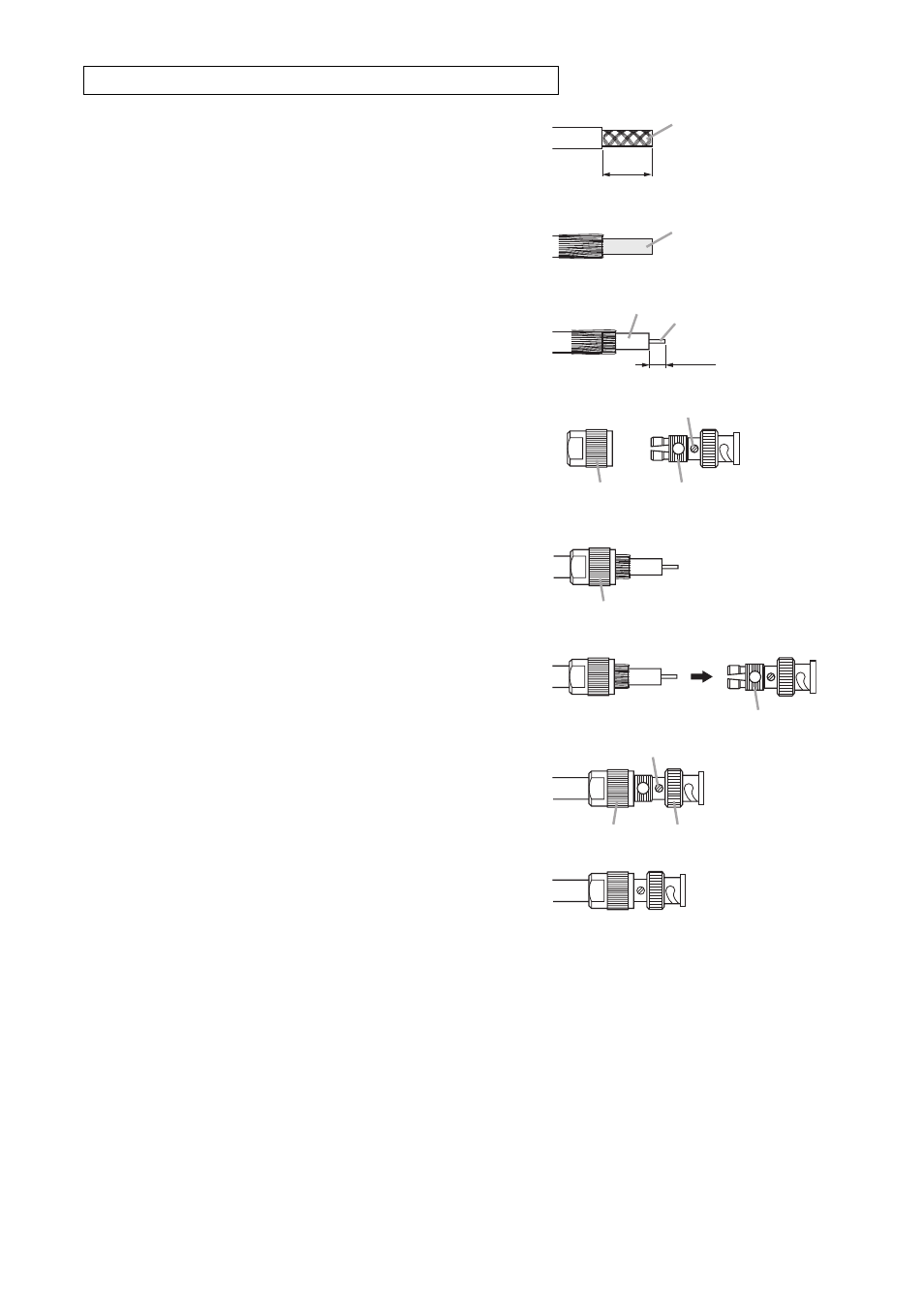

Attaching a YA-641 or CC-4901 BNC Plug to the 5C-FB Cable
Step 1. Strip the jacket 10 mm from the end of the
coaxial cable.
Step 2. Unravel the braided shield and turn it back, then
peel away the aluminum cladding.
Step 3. Strip the dielectric 4 mm from the cable end.
Step 4. Disassemble the BNC plug as shown in the
figure at right and turn the screw on the plug so
that it loosens partially but remains in position.
Step 5. Insert the coaxial cable into the clamping fixture.
Step 6. Insert the clamping fixture assembly into the
plug.
Step 7. Tighten the screw and then clamp the plug by
tightening the clamping fixture.
Aluminum cladding
Braided shield
10 mm
Conductor
4 mm
Dielectric
Plug
Plug Clamping fixture
Screw
Plug
Screw
Clamping fixture
Clamping fixture
(Finished)
