Toa TS-900 Series User Manual
Page 45

45
14. CENTRAL UNIT RACK MOUNTING

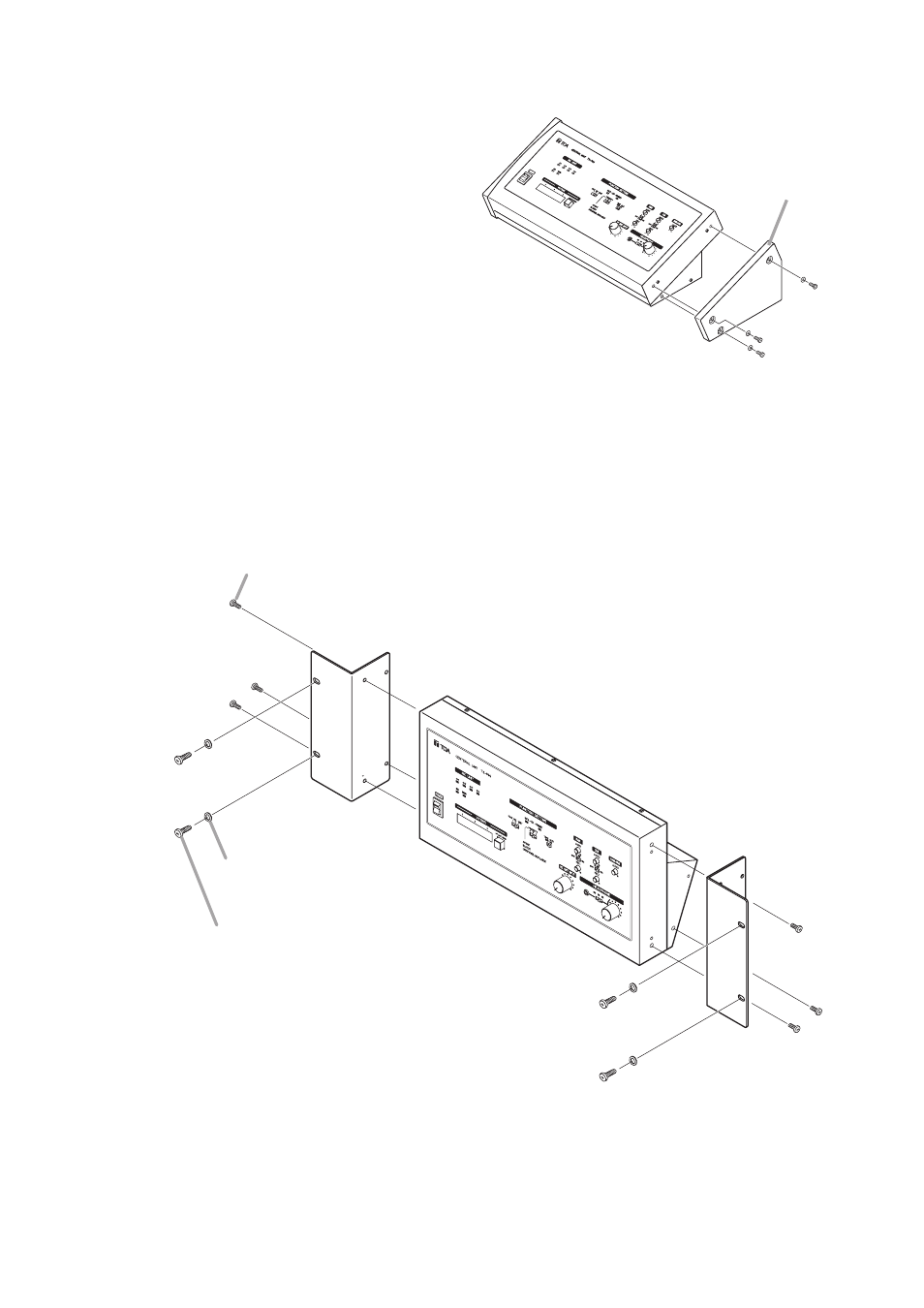

Step 1. Detach both side panels of the TS-900 Central Unit.
Removed screws are used in Step 2.
Side panel
Step 2. Attach the MB-TS900 Rack Mounting Bracket to both sides of the Central Unit.
Use the screws removed in Step 1.
Step 3. Mount the Central unit equipped with the mounting brackets in the rack.
Use the rack mounting screws and fiber washers supplied with the rack mounting bracket.
Fiber washers
(supplied with the MB-TS900)
Rack mounting screws 5 x 12
(supplied with the MB-TS900)
Screws removed in Step 1 (6 screws)
Note
Supplied 5 x 12 rack mounting screws are designed specifically
for TOA's equipment rack.
Avoid using them for other rack mounting.
2
3
