TeeJet TASC-6500 - Manual (Page 12)

TASC 6200/6500 999-1511
M-T 96162 12
2.10 STATUS SWITCH
An externally mounted status switch can be used to turn TASC on and off. So long as this switch is ON
(closed) TASC will operate normally. Whenever the switch is OFF (open), TASC will turn off the applica-
tor channels.
The intent of the status switch is to control TASC through the normal operation of the vehicle. The status
switch may sense the ON/OFF condition of the main applicator or it may sense an implement UP/DOWN
condition. Use of the status switch can lessen the operator work load.
2.11 FUSES AND POWER CONNECTIONS
TASC uses the inherent capacitance of the vehicle battery to protect the electronics against voltage
spikes and electrical ground reference variations. For this reason:
IT IS EXTREMELY IMPORTANT THAT ALL CONNECTIONS BE MADE DIRECTLY TO THE VEHICLE
BATTERY. ON VEHICLES WITH MORE THAN ONE BATTERY, ALL CONNECTIONS SHOULD BE
MADE TO THE SAME BATTERY.
All fuses will be located near the battery connection. TASC components use automotive type, in line
fuses that are readily available from any auto parts store or most automotive repair facilities.

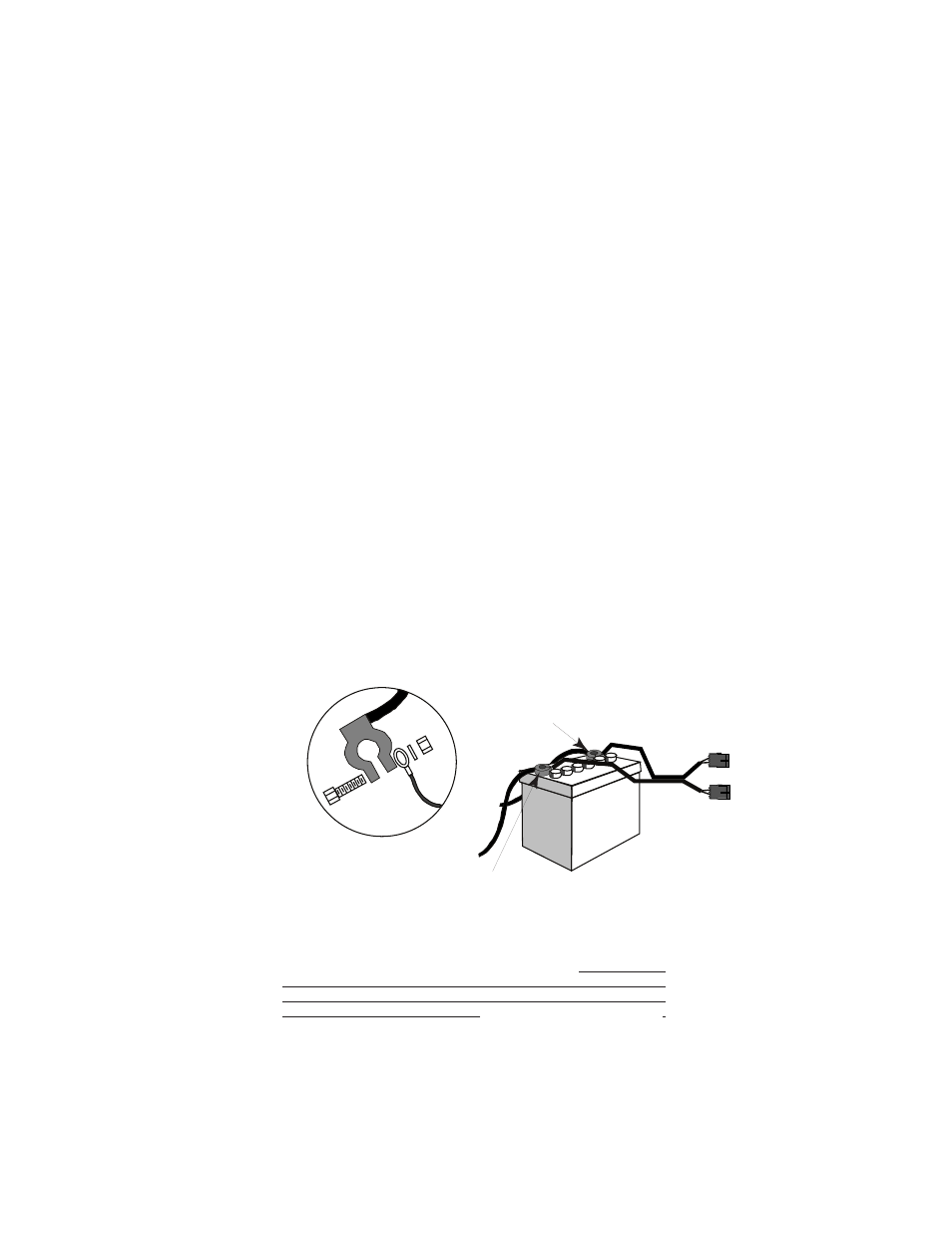

CONNECT ALL POWER LEADS DIRECTLY TO THE VEHICLE BATTERY
DO NOT SUBSTITUTE HIGHER AMPERAGE FUSES
12 Volts D.C.
Positive Terminal
Chassis Ground
Negative Terminal
A
B
A
B
Battery
Power
Cable
CAUTION!
THIS SYSTEM HAS BEEN DESIGNED TO GIVE OPTIMUM PER-
FORMANCE WHEN CONNECTED AS SHOWN. POWER CON-
NECTIONS OTHER THAN DIRECTLY TO THE VEHICLE BAT-
TERY AND/OR THE USAGE OF HIGHER AMPERAGE FUSES MAY
DAMAGE THE SYSTEM AND
VOID THE WARRANTY VOID THE WARRANTY VOID THE WARRANTY VOID THE WARRANTY VOID THE WARRANTY.
