2.5 BOOM SECTION "ON/OFF" INDICATORS
The boom section on/off indicators show which boom sections have been selected by the operator.
There are a maximum of nine boom sections available. When a boom section is selected, its indicator
light will light.
2.6 FLOW CONTROL CHANNELS, RATE SELECTION SWITCHES
Two channels on the TASC are designated as flow control channels. Both are designed to operate
positional control valves. Channel C is set aside to control the spreader conveyor using a positional
hydraulic control valve.
Channel L would be used to control a liquid application using either a positional flow control valve or a
positional hydraulic control valve. This could be either a wet boom applicator or a liquid impregnation
applicator.
Both channels can be preset for a standard rate and an alternate rate. When the switch is turned on, its
indicator will light to show the applicator has been selected at its standard rate. When the alternate rate
is selected, the indicator light will flash to indicate a non-standard application.
2.7 CHEMICAL APPLICATOR CHANNELS, RATE SELECTION SWITCHES
(not applicable to 6200) Channels will not run without either Channel L or C ON.
Channels 1,2 and 3 are used to turn on and select the rate of up to three separate chemical applicators.
These three channels control using proportionally switched DC voltage. Typical installations will control
liquid injection pumps on a wet boom or granular coapplicators with a dry conveyor.
All three channels can be set for a standard rate and an alternate rate. When the switch is turned on, its
indicator will light to show the applicator has been selected at its standard rate. When the alternate rate
is selected, the indicator light will flash to indicate a non-standard application.

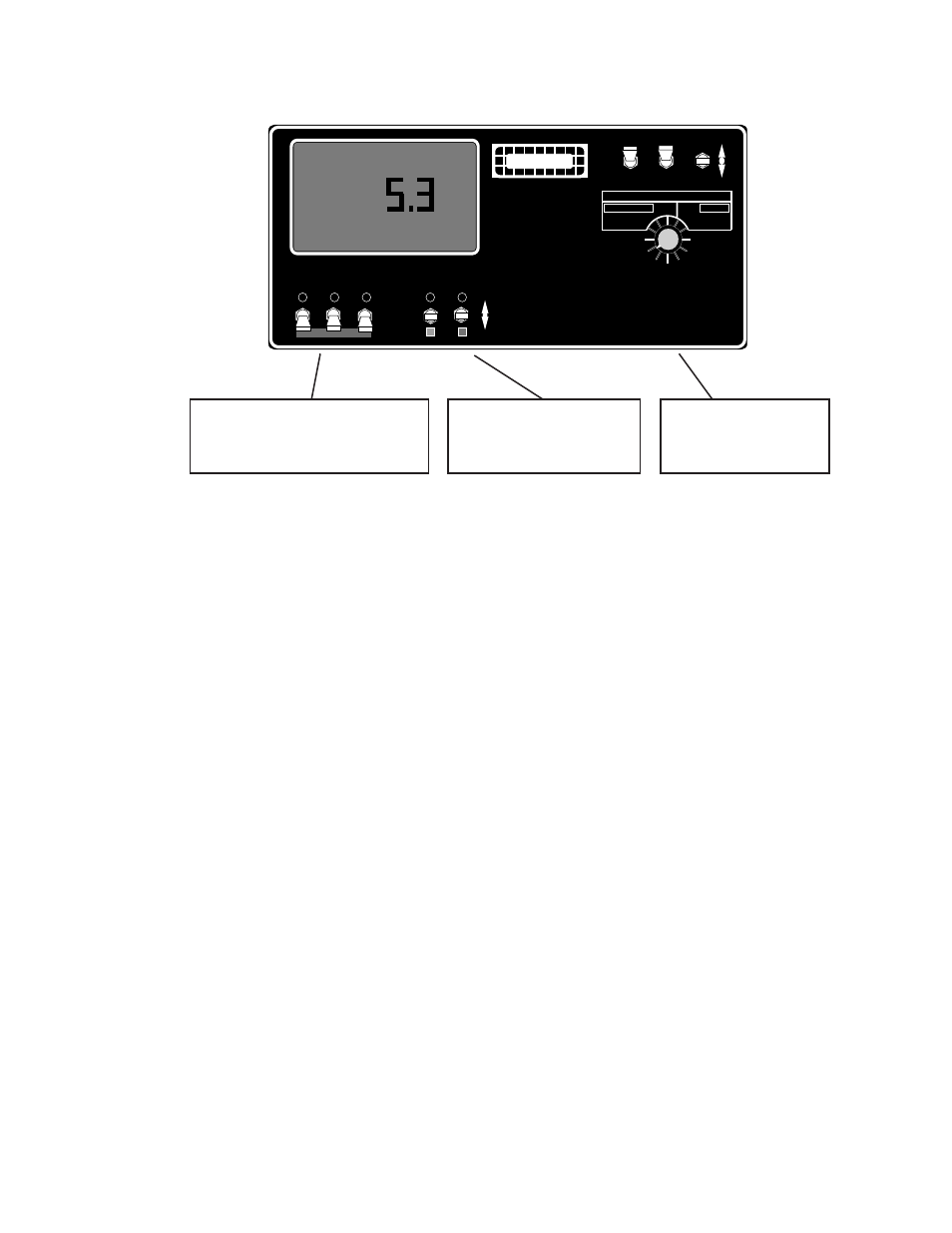

TASC-6500
