Disassembly
2 - 16 Removing the Bluetooth Module
2.Disassembly
Removing the Bluetooth Module
1. Turn off the computer, turn it over, and remove the battery ( page 2 - 5 ) and the component bay cover ( page 2 - 6 ).
2. The Bluetooth module will be visible at point on the mainboard.
3. Remove the screw and carefully disconnect the cable and separate the connector ( Figure 12b ) from the
Bluetooth Module.
4. Lift the Bluetooth Module ( Figure 12c ) up and off the computer.

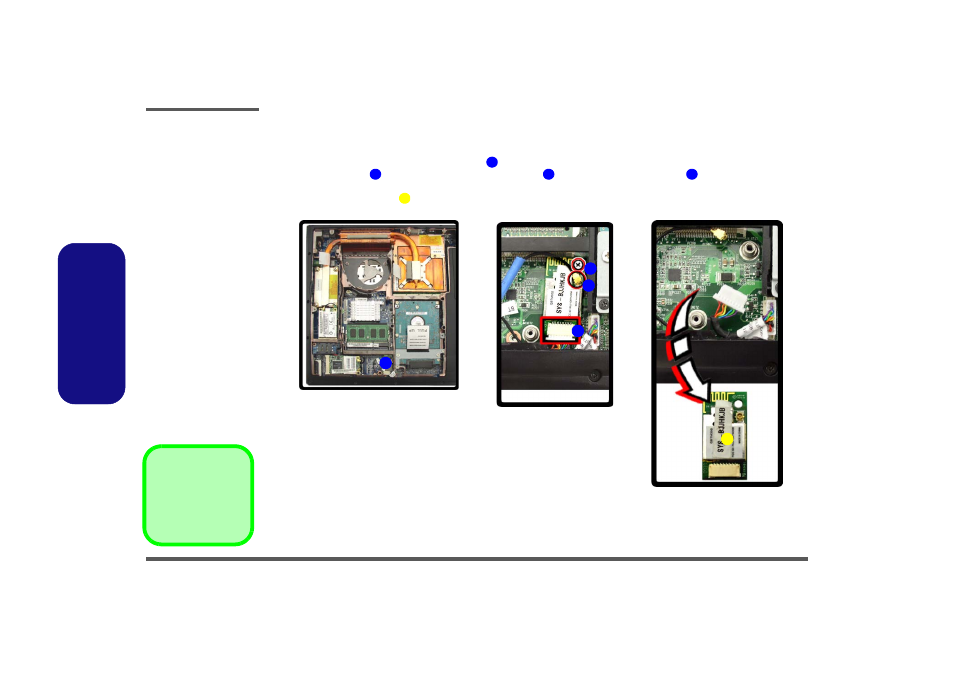

Figure 12
Bluetooth Module
Removal
a. Locate the Bluetooth
module.
b. Remove the screw and
disconnect the cable and
the connector from the
bluetooth module.
c. Lift the Bluetooth module
out.
1
2 3 4
5
c. a.
4
1
5
2
3
b.
5. Bluetooth Module
• 1 Screw
