Disassembly
2 - 10 Removing and Installing a Processor
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, turn it over, and remove the battery (
) and the component bay cover (
).
2. The heat sink will be visible at point
on the mainboard
3. Remove the screws
-
from the heat sink in the order indicated (
Figure 6b
).
4. Carefully lift the heat sink
(
Figure 6c
) up off the computer.
1
2
9
10
2
3
4
1
a.
c.
b.
5
8
6
7
9
10

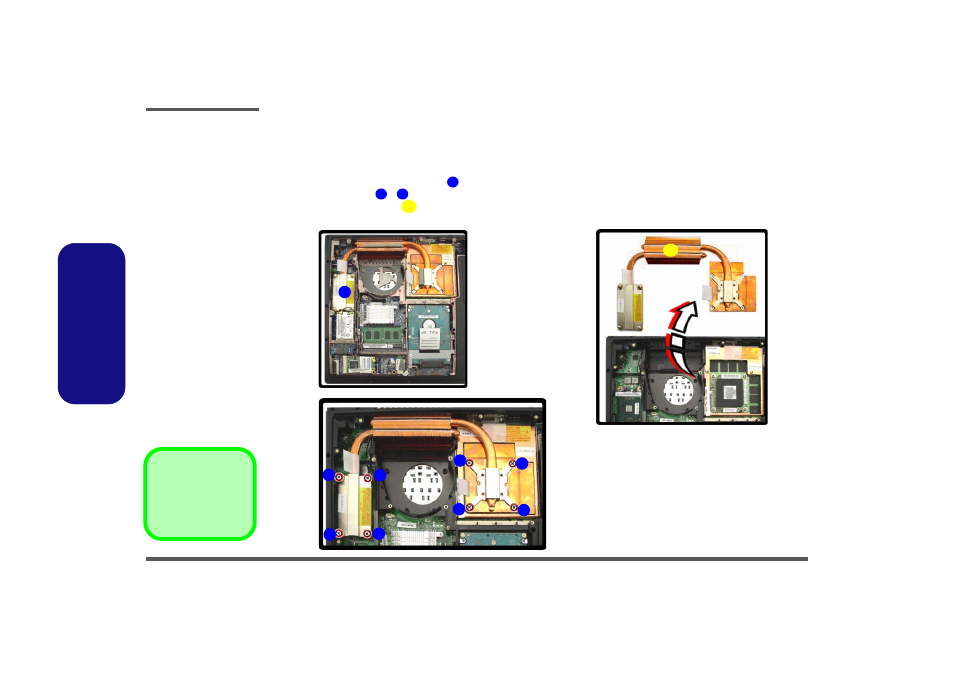

Figure 6
Processor Removal
a. Locate the heat sink.
b. Remove the screws in
the order indicated.
c. Remove the heat sink.
10. Heat Sink
• 8 Screws
