4.8.2.3 Selecting Synchronized System Sensor Configurations
To select the input/outputs for System Sensor synchronized appliances, set the DIP
switches as shown in Figure 4-11.

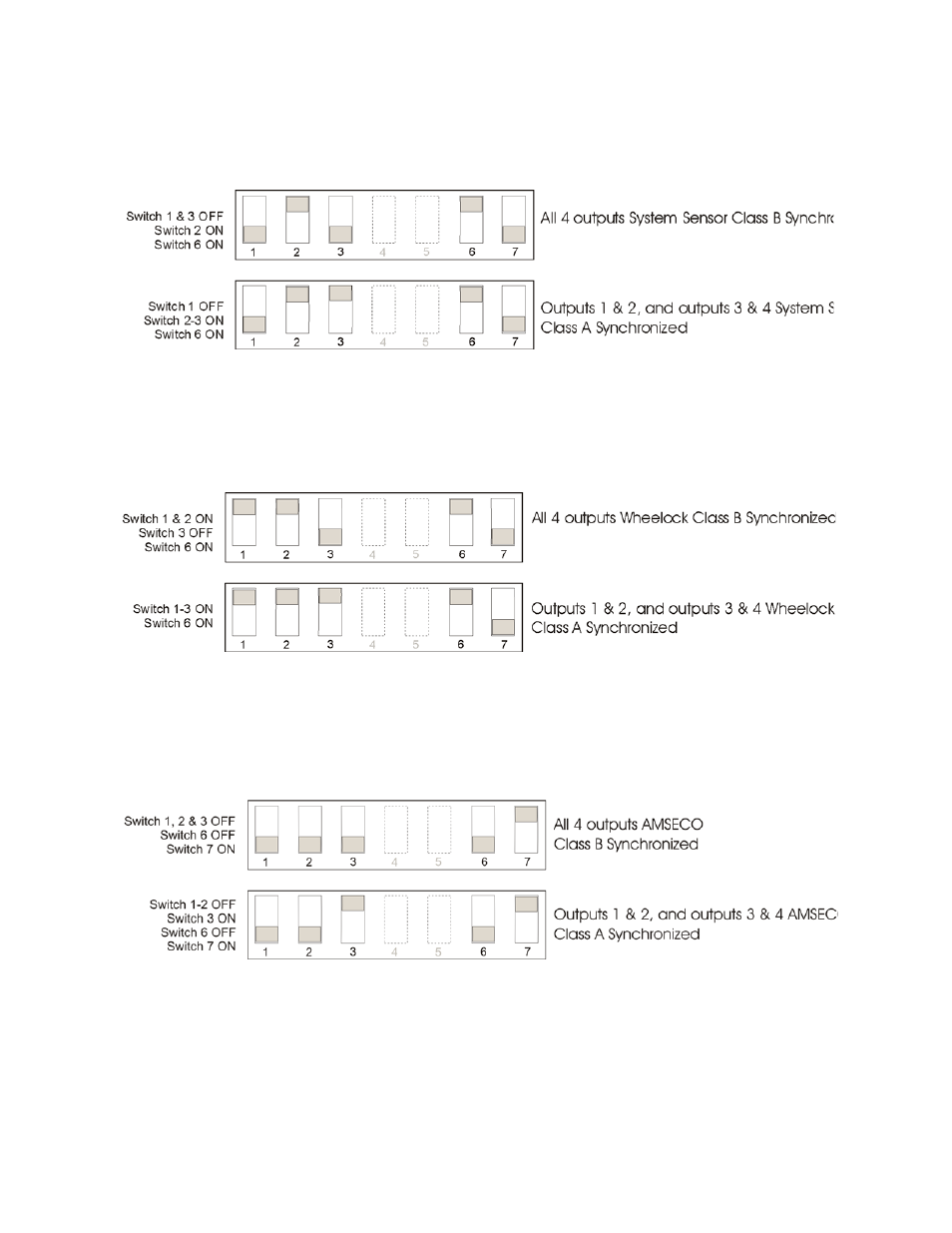

Figure 4-11 System Sensor Synchronized Configurations
4.8.2.4 Selecting Synchronized Wheelock Configurations
To select the input/outputs for Wheelock synchronized appliances, set the DIP
switches as shown in Figure 4-12.
Figure 4-12 Wheelock Synchronized Configurations
4.8.2.5 Selecting Synchronized AMSECO Configurations
To select the input/outputs for AMSECO synchronized appliances, set the DIP
switches as shown in Figure 4-13.
Figure 4-13 AMSECO Synchronized Configurations
