4 connecting the 5499 to a control panel – SilentKnight 5499 9A Distributed Power Module User Manual
Page 15
Installation
151253
11
4.4
Connecting the 5499 to a Control Panel
Figure 4-2 shows the general layout of the 5499 PC board. This section also provides
specific wiring details for accessories.

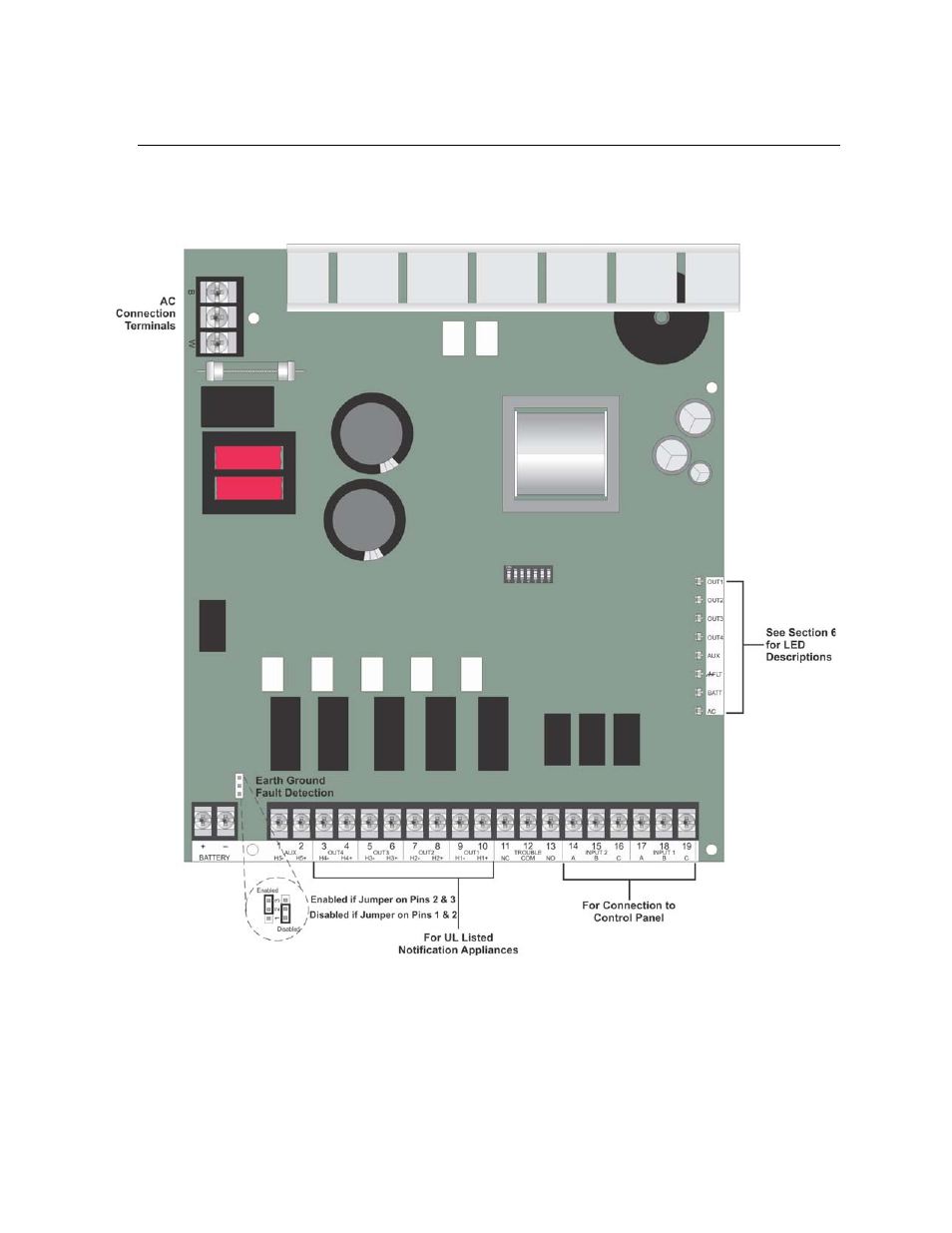

Figure 4-2 The Model 5499 PC Board Layout
Consult the installation manual for specific wiring information for the control panel
being used.
