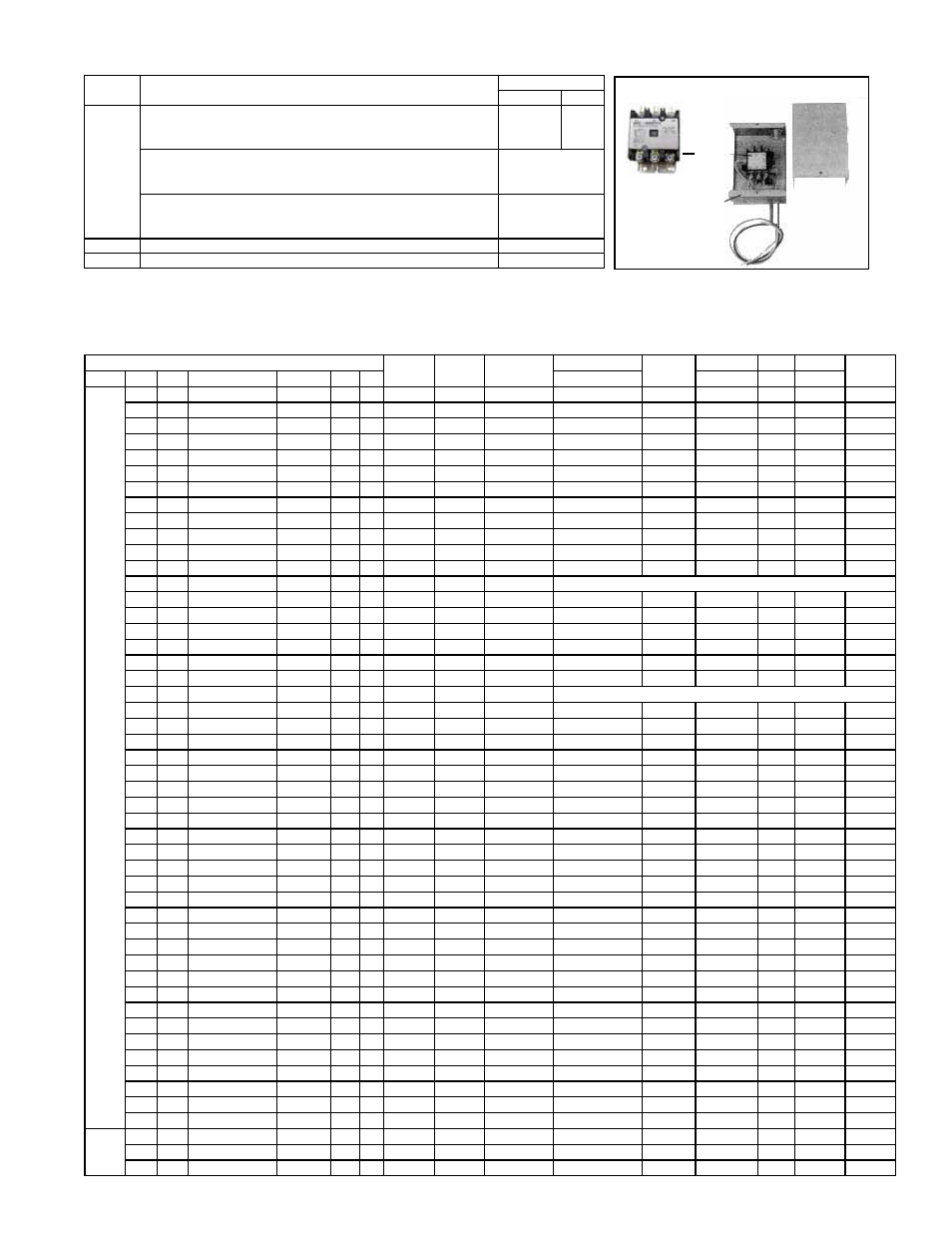

Form P-F/B (01-8-15), P/N 272436R5, Page 9
Belt-Driven Blo wer Motors and Motor Starters
Motors that do not list a contactor and overload have internal overload protection and are used with a contactor ( Code 47A). Motors
in the tables below with a contactor (starter) and overload listed do not have internal overload protection and must be used with the
motor starter and overload. All motor starters must be ordered with a NEMA 1 enclosure, P/N 151207, GE#CLXE1A.
47C
47B
47A
Blower Motor Contactor
Blower Motor Contactor
Code Description
Sizes
50-300 400
47A
Contactor, 115V, Hartland HCC-3XT01CY
(Important Note: If replacing a Gould contactor, order complete
contactor assembly including a new enclosure, P/N 95527)
119626
(replaces
93662)
--
Contactor, 230V, Hartland HCC-3XU01CY
(Important Note: If replacing a Gould contactor, order complete
contactor assembly including a new enclosure, P/N 95528)
119627 (replaces
93663)
Contactor, 460V, 24V Coil, Hartland HCC-3XQ01CY
(Important Note: If replacing a Gould contactor, order complete
contactor assembly including a new enclosure, P/N 95526)
216386 (replaces
93661 or 119625)
47B Contactor Enclosure 93917
47C Contactor Enclosure Cover 120302
Motor Service
Factor
Power
Factor Efficiency
Contactor Reznor ®
P/N
Overload o.l. o.l. Reznor ®
P/N Type HP fla Model No. P/N volt ph GE # GE # min max
Open
1/3 6 BF2034 202091 120 1 1.35 - - - - - -
1/3 3 BF2034 202091 208 1 1.35 62.8 61.30% - - - - - -
1/3 3 BF2034 202091 240 1 1.35 62.8 61.30% - - - - - -
1/3 1.4 AOS-H260 115863 208 3 1.35 CL00A310T-L 151150 RTA1-G 1.00 1.50 151187
1/3 1.6 AOS-H260 115863 240 3 1.35 CL00A310T-S 151147 RTA1-H 1.30 1.90 151188
1/3 0.8 AOS-H260 115863 480 3 1.35 CL00A310T-U 151148 RTA1-F 0.65 1.10 151186
1/2 8.8 BF2054 102627 120 1 1.15 - - - - - -
1/2 5.1 BF2054 102627 208 1 1.15 - - - - - -
1/2 4.4 BF2054 102627 240 1 1.15 - - - - - -
1/2 2.5 AOS-H880 159183 208 3 1.25 - - - - - -
1/2 3 AOS-H880 159183 240 3 1.25 - - - - - -
1/2 1.5 AOS-H880 159183 480 3 1.25 - - - - - -
1/2 AOS-H991 202089 575 3 Contact distributor or factory.
3/4 11 312P629 93548 120 1 1.25 - - - - - -
3/4 6.3 312P629 93548 208 1 1.25 - - - - - -
3/4 5.5 312P629 93548 240 1 1.25 - - - - - -
3/4 2.9 312P696 36951 208 3 1.25 - - - - - -
3/4 2.6 312P696 36951 240 3 1.25 - - - - - -
3/4 1.3 312P696 36951 480 3 1.25 - - - - - -
3/4 AOS-H992 202090 575 3 Contact distributor or factory.
1 13 C523 13685 120 1 1.25 - - - - - -
1 7.5 C523 13685 208 1 1.25 - - - - - -
1 6.5 C523 13685 240 1 1.25 - - - - - -
1 4 H882L 36580 208 3 1.15 79% - - - - - -
1 3.7 H882L 36580 240 3 1.15 79% - - - - - -
1 2 H882L 36580 480 3 1.15 79% - - - - - -
1 1.4 AOS-H959 158175 575 3 1.15 82.50% CL00A310T-Y 151149 RTA1-G 1.00 1.50 151187
1.5 15 C621 194202 120 1 1.2 86.4 77.20% - - - - - -
1.5 7.8 C621 194202 208 1 1.2 86.4 77.20% - - - - - -
1.5 7.5 C621 194202 240 1 1.2 86.4 77.20% - - - - - -
1.5 5.6 AOS-H884 115859 208 3 1.15 66.4 78.60% - - - - - -
1.5 5 AOS-H884 115859 240 3 1.15 66.4 78.60% - - - - - -
1.5 2.8 AOS-H884 115859 480 3 1.15 66.4 78.60% - - - - - -
1.5 1.6 AOS-H960 158162 575 3 1.15 85.3 86.30% CL00A310T-Y 151149 RTA1-H 1.30 1.90 151188
2 10.2 V102 202581 240 1 1.15 81.8 77.50% - - - - - -
2 7 AOS-H886 159327 208 3 1.15 67 79% CL00A310T-L 151150 RTA1-M 5.50 8.50 151192
2 6.6 AOS-H886 159327 240 3 1.15 67 79% CL00A310T-S 151147 RTA1-L 4.00 6.30 151191
2 3.5 AOS-H886 159327 480 3 1.15 67 79% CL00A310T-U 151148 RTA1-K 2.50 4.10 151190
2 2.1 AOS-H965V1 158176 575 3 1.15 86 84.80% CL00A310T-Y 151149 RTA1-J 1.90 2.70 151189
3 9 AOS-H845 159185 208 3 1.15 CL00A310T-L 151150 RTA1-M 5.50 8.50 151192
3 8.6 AOS-H845 159185 240 3 1.15 CL00A310T-S 151147 RTA1-M 5.50 8.50 151192
3 4.3 AOS-H845 159185 480 3 1.15 CL00A310T-1 151275 RTA1-K 2.50 4.10 151190
3 3.6 AOS-H954 120019 575 3 1.15 80.3 83.80% CL00A310T-Y 151149 RTA1-K 2.50 4.10 151190
5 13.4 196033 113371 208 3 1.15 87.2 85% CL01A310T-L 151155 RTA1-P 10.00 16.00 151194
5 13.2 196033 113371 240 3 1.15 87.2 85% CL01A310T-S 151152 RTA1-P 10.00 16.00 151194
5 6.6 196033 113371 480 3 1.15 87.2 85% CL00A310T-1 151275 RTA1-M 5.50 8.50 151192
5 5.4 H956 120020 575 3 1.15 85.9 85.30% CL00A310T-Y 151149 RTA1-L 4.00 6.30 151191
TEFC
1/3 4.6 Stock #906 115861 120 1 1 68.5 72.10% - - - - - -
1/3 2.3 C151 159501 208 1 1 67.2 69.50% - - - - - -
1/3 2.4 C151 159501 240 1 1 67.2 69.50% - - - - - -
