Form P-F/B (01-8-15), P/N 272436R5, Page 16

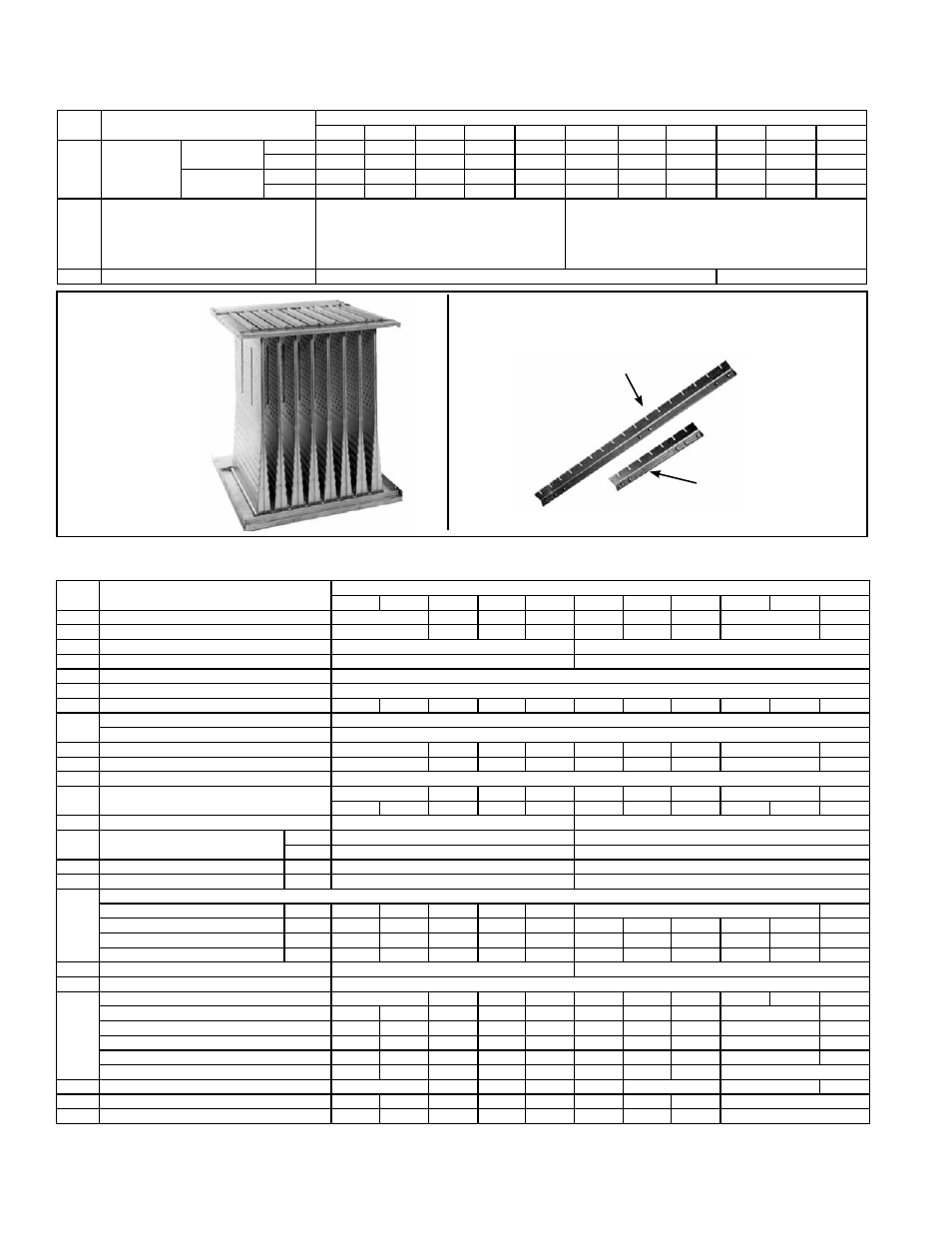

Heat Exchangers
A gasket kit is included with replacement heat exchangers for Model B and BE heaters. If a new burner rack support is required, order
P/N listed. Burner rack supports manufactured prior to 8/91 (Serial No. Date Code AQH) were not indexed.
P/N 113937 - Burner Rack
Support for Sizes 250-400
P/N 113936, Burner
Rack Support for
Sizes 25-200
Code 110 -
Heat
Exchanger
(Same as Code
52 on page 12)
Code 111 - Burner Rack Supports
Code Description
Size
25 50 75 100 125 130 165 200 250 300 400
110
Heat
Exchanger
Assembly
Aluminized
F/FE 102282 102283 102284 102285 132743 102286 102287 102288 102289 102290 102291
B/BE 173823 173824 173825 173826 173827 173828 173829 173830 173831 173832 173833
409
Stainless
F/FE 102311 102312 102313 102314 132745 102315 102316 102317 102318 102319 102320
B/BE 173834 173835 173836 173837 173838 173839 173840 173841 173842 173843 173844
110A
Gasket Kit included in Replacement
Heat Exchangers for blower models.
Kit includes five self-adhesive
gasket strips, a tube of sealant and
instructions.
102280 102281
111 Indexed Burner Rack Support 113936 113937
Code Description
Size
25 50 75 100 125 130 165 200 250 300 400
120 Top Front 94661 94662 94663 94665 94663 94664 94665 94666 94667
121 Bottom Front 94668 94669 94670 94672 94670 94671 94672 94673 94674
122 Right Side Outer Panel 104968 104970
123 Left Side Outer Panel 104969 104971
124 Fan/Limit Access Panel 94898
125 Wiring Access Panel 94897
126 Bottom Pan 94687 94688 94689 94690 131607 94691 94692 94693 94694 94695 94696
127 Right Hinge Pin Assy for Bottom Panel
96445
Left Hinge Pin Assy for Bottom Panel 99351
128 Fan Back Panel - Fan Model 94675 94676 161181 161184 N/A 161182 94680 161183 94682
129 Back Panel - Blower Model 99830 99831 99832 99835 99833 99834 99835 99836 99837
130 Latch Fastener for Fan Back (2) 96435 - used prior to 2/95
131 Horizontal Louver Assembly
94851 94855 94857 131803 94859 94863 94865 94867 94869
(4) (4) (4) (4) (6) (4) (6) (6) (8) (8) (10)
132 Inner Left Side Panel 94842 94837
133 Inner Right Side Panel (includes
plate for electrical supply)
F/FE 99025 99026
B/BE 102346 102347
134 Upper Stiffening Channel B/BE 100867 (2) 100869 (2)
135 Lower Stiffening Channel B/BE 100868 (2) 100870 (2)
136
Air Deflectors (not illustrated)
Horizontal - Right Side F/FE -- -- -- -- -- 96141 94899
Vertical - Right Side All 96714 -- -- -- -- -- -- -- -- -- --
Horizontal - Left Side F/FE -- 96140 -- -- 96140 96141 94900
Vertical - Left Side All 96714 -- -- -- -- -- -- -- -- -- --
137A Vertical Barrier 94749 94750
137B Horizontal Barrier 94751
138A
(See
NOTE
Below)
Drafthood for Gravity Vent Sizes 25-200 102449 102450 102451 131608 102838 102839 102840 -- -- --
Drafthood Assy for F/B Sizes 250-400 -- -- -- -- -- -- -- -- 101909 101910
Components: Drafthood Front -- -- -- -- -- -- -- -- 105310 105311
Drafthood Right Rear -- -- -- -- -- -- -- -- 101903 101904
Drafthood Left Rear -- -- -- -- -- -- -- -- 101906 101907
Screws, #10x1/2" -- -- -- -- -- -- -- -- 51489 (6)
138B Flue Collar Assy - Models F & B 102363 102364 102365 132765 102844 102845 102846 102847
138C Flue Collar Support - Models F & B -- -- -- -- 131992 -- -- -- 102857
138D Cover for Horizontal/Vertical Vent Outlet -- -- -- -- 132764 -- -- -- 102855
NOTE: Effective 4/1/91, all gravity-vent Model F and B heaters include a blocked vent system requiring holes in the drafthood. When
replacing a drafthood on a heater without a blocked vent switch, these holes will not affect heater operation.
Cabinet Parts
