Form P-F/B (01-8-15), P/N 272436R5, Page 8
33
33B
33A
30
32
30B

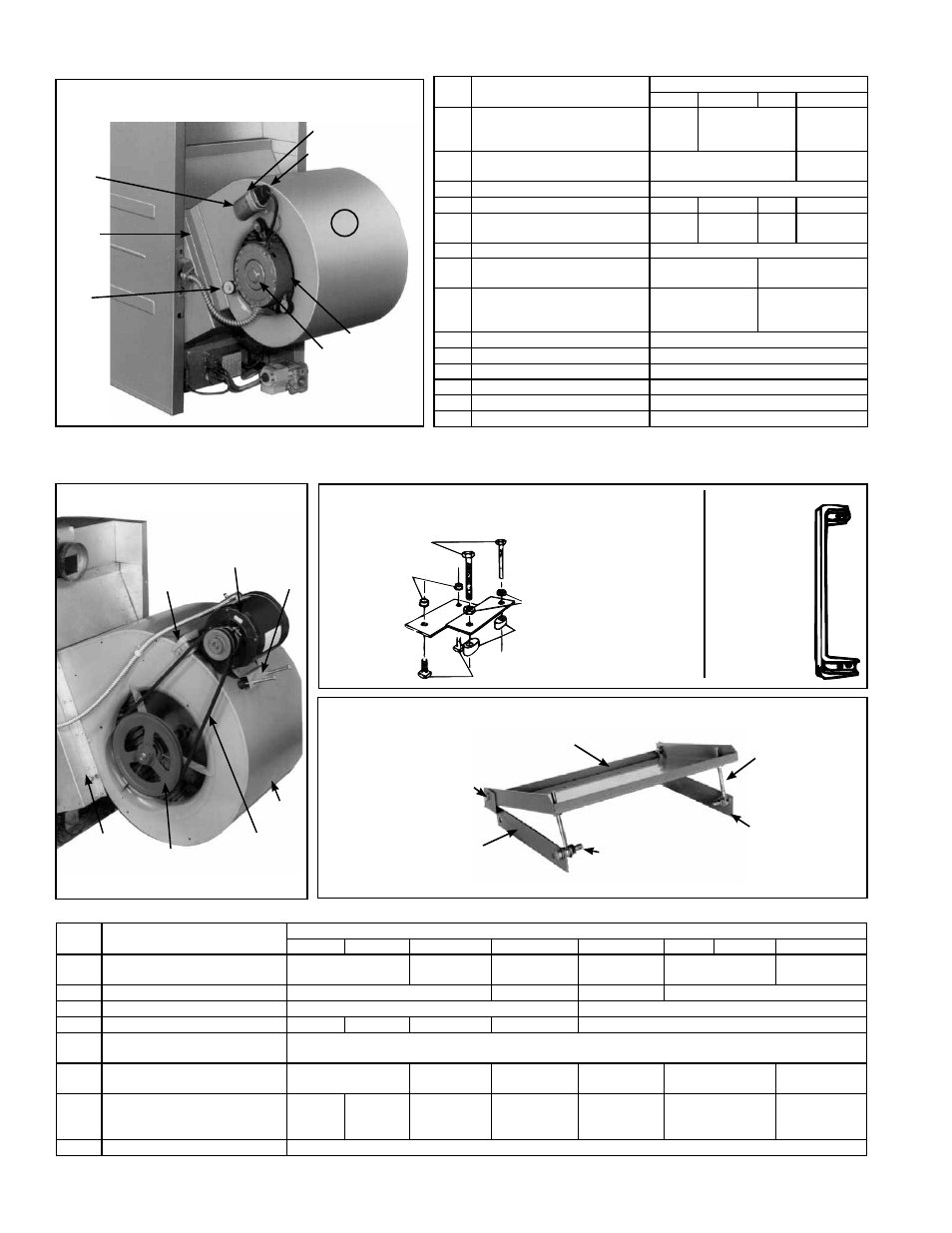

Model B with Direct Drive Motor
36
37
Blower Components - Models B and BE 25-100 with Direct Drive Motor
Code Description
Size
25
50
75
100
30
Blower Assy including blower
(Code 30A), mounting angle
(Code 30B), and restrictors
100897
100898
100899
30A Blower only including housing
and wheel
82111, Lau #DD9-6AP 43607, Lau
#DD9-9AP
30B Blower Mounting Angle
100888 (2)
30C Restrictor
100891
--
--
--
30D Restrictor Mounting Angle
100872
(3)
--
--
--
31 Blower Washer 3/4" x 1-1/2"
1087 (4)
32 Direct Drive Motors, 115 volt
201760, 1/6HP
(replaces 100491)
201761, 1/3HP
(replaces 100490)
33 Capacitor
1
01917,
5MFD/370V
(replaces 43614)
101918,
7.5MFD/370V
(replaces 82095)
33A Capacitor End Cap
82113 (Stone City #4522-07)
33B Capacitor Strap Bracket
82114 (Stone City #1614)
34 Washer 1-1/8" OD x 1/4" ID
82450 (3)
35 Screw #14x1-1/4" Slotted Hex
82451 (3)
36 Motor Band
51221
37 Motor Support
51223 (3)
Blower Components -
Models B and BE 50-400 with Belt-Driven Motor
44B
Motor
44A
42A
Belt
42B
Blower
Pulley
Model BE with a Belt-Driven
Motor
Bolt, P/N 16247(2)
Right Support
P/N 12577
Left Support
P/N 12576
Bolt, P/N
12489 (2)
Code 45 - Motor
Mounting Plate
Bolt, P/N 16248
Nut, P/N 6554 (10)
Washer 1087 (8)
Motor Adjustment
Mounting Assy - 1HP
and larger motor
Code 44B -
Blower
Motor
Mounting
Bracket
Code 44A - Motor Adjustment Mounting Assy -
used with less than 1HP Motor
5/16-18 x 4 lg
Hex Head Bolt
5/16-18
Lock Nut
5/16-18 x 3/4 lg Square Head Bolt
Rubber Grommet
5/16 - 18 Hex nut
Code Description
Size
50
75
100
125
130/165
200
250/300
400
42A Blower
(includes shaft & bearings)
100655, Lau #A9-
6ACD
100656, Lau
#A9-9A
1357, LAU
#10AC-10AC
100657, Lau
#A12-9ACD
100658, Lau #A15-
11ACD
100659, Lau
#A15-15ACD
42B Blower Mounting Angle
100888 (2)
131800 (2)
100889 (2)
100890 (2)
42C Blower Bearings
7310 (2)
10437 (2)
43
Blower Washer 3/4" x 1-1/2"
--
--
--
--
1087 (4)
44A Mtr Adjustment Mounting Assy -
3/4HP or less
44411
44B Blower Mtr Mounting Bracket -
3/4HP or less
102536
102537
44409
102533
102534
102535
45
Blower Mtr Mounting Plate - 1
HP and larger (plate only, see
illustration for additional parts)
--
--
--
--
114545
14205
101422
46
Key, 1/4" square x 1-1/4" long
16099
