Reznor B Parts Manuals - Manual (Page 15)

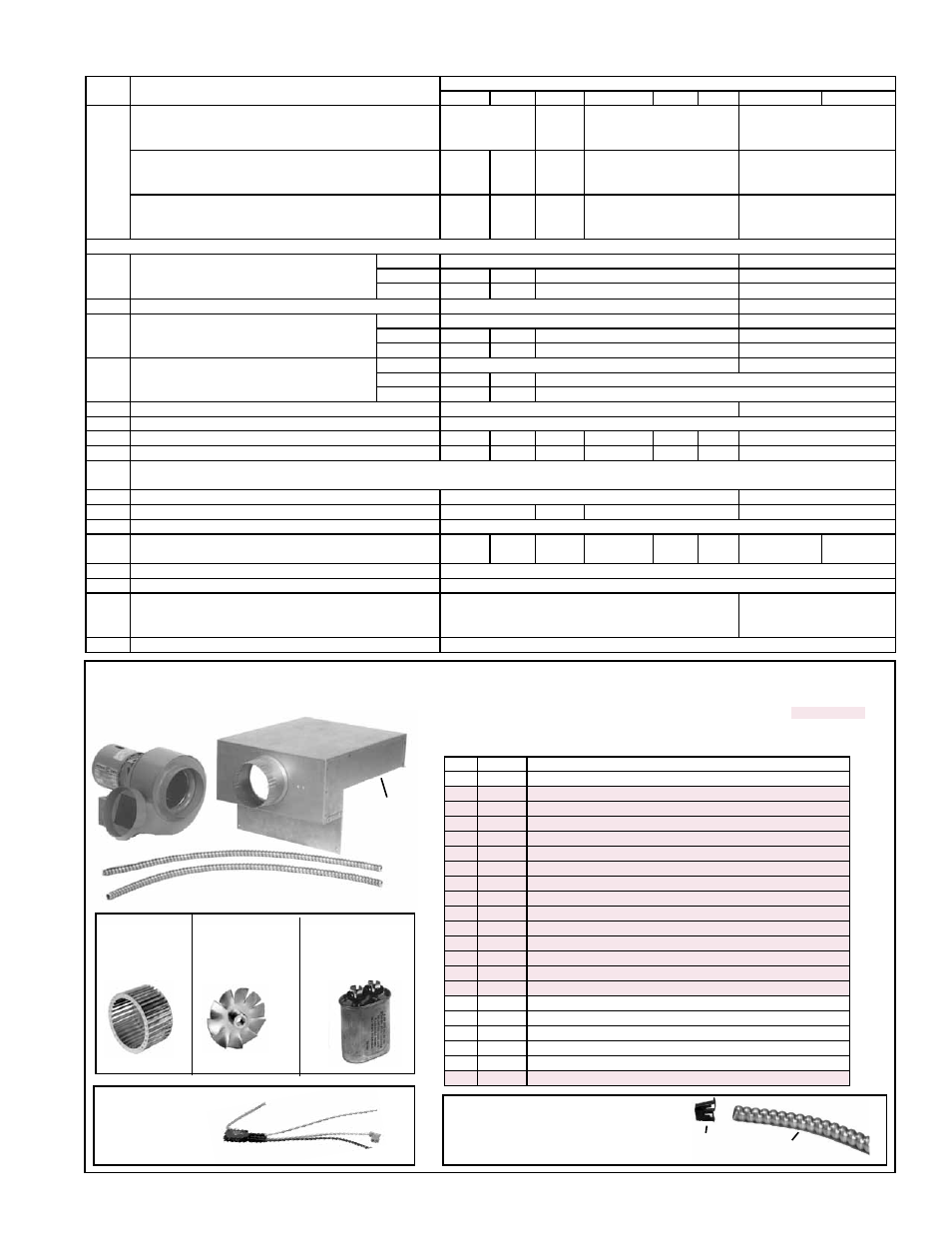

Form P-F/B (01-8-15), P/N 272436R5, Page 15
Optional Power Venter for Gravity-Vent Units - Models F and B
Code Description
Size
25/50 75/100 125 130 165 200 250/300 400
90 -
Power
Venter
Kits
115 volt Venter, Venter Adapter, & Parts Bag (Same as
Option CA1 - includes two hanger bracket assemblies
for converting fan units to 4-pt suspension.)
98467 136862 98468 98471
208 volt Venter, Venter Adapter, & Parts Bag (Same as
Option CA2 - includes two hanger bracket assemblies
for converting fan units to 4-pt suspension.)
-- -- 135441 98469 98472
230 volt Venter, Venter Adapter, & Parts Bag (Same as
Option CA3 - includes two hanger bracket assemblies
for converting fan units to 4-pt suspension.)
-- -- 135442 98470 98473
Replacement Component Parts for Optional Power Venters
91
Venter Assy including Blower and Motor
and Wheel Assy (includes 92, 93, 94, 96,
115 volt 97976 97955
208 volt -- -- 97977 97956
230 volt -- -- 97978 97957
92 Blower Housing Ass em by 6631 10529
93 Venter Motor and Wheel Ass em by
115 volt 97980 97958
208 volt -- -- 97981 97959
230 volt -- -- 97982 97960
93A Venter Motor only
115 volt 61069, Fasco #7121-4861 87434, Fasco #7161-1775
208 volt -- -- 30249, Fasco #7162-0186
230 volt -- -- 29571, Fasco #7162-0158
93B Wheel, Torrington 29791, #AA-326-215-1 29792, #AA408-228-1
93C Fan Blade, 3", RHG-0.3125 bore 29793
94A Capacitor -- -- -- -- -- -- 163894 (replaces 103181)
94B Capacitor Boot, Sysntex #147-78 -- -- -- -- -- -- 103182
95
Time Delay Relay, P/N 259518, replacement for venter kits manufactured beginning 2/2010. For kits manufactured before 2/2010, order
time delay replacement kit, P/N 259521. (Venters requiring this kit will have a TI #6000060-17 time delay relay.)
96 Sail Switch, Cemco 97908, #JMP-154 4B-A 97907, #JMP 102-4B-C
97 Venter Adapter Assembly 97823 146094 97824 97825
98 Parts Bag for installing all Option CA Power Venters 97966, (See component list below.)
98A Flue Restrictor (not illustrated, included in Code 90)
98665
2-3/4x6
98664
2x6
97943
1x7
97944
1-1/2x7-3/4
97943
1x7
None
97944
1-1/2x 7-3/4
None
99 Conduit Connector, Tinnerman #C54882-017 (2) 97941
100 Flexible Conduit, 5/16" x 24" (2) 17950
101
Vent Cap for Model F or B with optional power vent.
Vent cap is not included in Code 90 kit. (Illustration is
same as Code 80, page 14.)
111848 - 4" 1 11850 - 6"
102 Flue Exhaust Tape (not included in Code 90 kit) 98266, Aluminum tape 550°F, 1" x 10 yds (not illustrated)
Code 96 -
Sail Switch
100
99
Code 99 - Conduit Connector
Code 100 - Flexible Conduit
Code 90 - Power Venter Kit
(Parts Bag Not Illustrated - See Code 98)
97
91 - Venter Assy
100
Code 94A -
Capacitor,
P/N 163894
Code 93B -
Venter
Wheel
Code 93C -
Venter
Fan Blade
Code 98 Parts Bag - Parts Bag, P/N 97966, is standardized for
all sizes of power venters. It contains all of the items required for any
installation and may include parts that are not used. The highlighted
descriptions in bold type should always be used. Each parts bag
includes:
Qty P/N Description
2 96386 Hanger Assembly
1 98364 Brown Wire Assembly
2 97941 Conduit Connector, Tinnerman #C54882-017
13 16354 Twist-on Wire Connector, Ideal #3-0273
11 11813 Sheetmetal Screws, #10 x 1/2"
1 16199 Box Connector, %&B #253
1 1417 90° Box Connector
2 16358 Anti-Short Bushing (red)
1 91453 Orange Wire, 18 Gauge x 60", 105°C
1 38463 Yellow Wire, 18 Gauge x 60", 105°C
1 38464 Brown Wire, 18 Gauge x 60", 105°C
1 3841 Black Wire, 18 Gauge x 36", 105°C
1 87880 White Wire, 18 Gauge x 36", 105°C
1 38462 Blue Wire 18 Gauge x 60", 105°C
2 148086 Open/Closed Bushing, Heyco #OCB625
1 97843 Restrictor, 1" Wide
1 97944 Restrictor, 1-1/2" Wide
1 98664 Restrictor, 2" Wide
1 99665 Restrictor, 2-3/4" Wide
2 16355 Wire Nuts (used for field connection on blower models)
1 103171 Warning Label
