Reznor B Parts Manuals - Manual (Page 17)

Form P-F/B (01-8-15), P/N 272436R5, Page 17

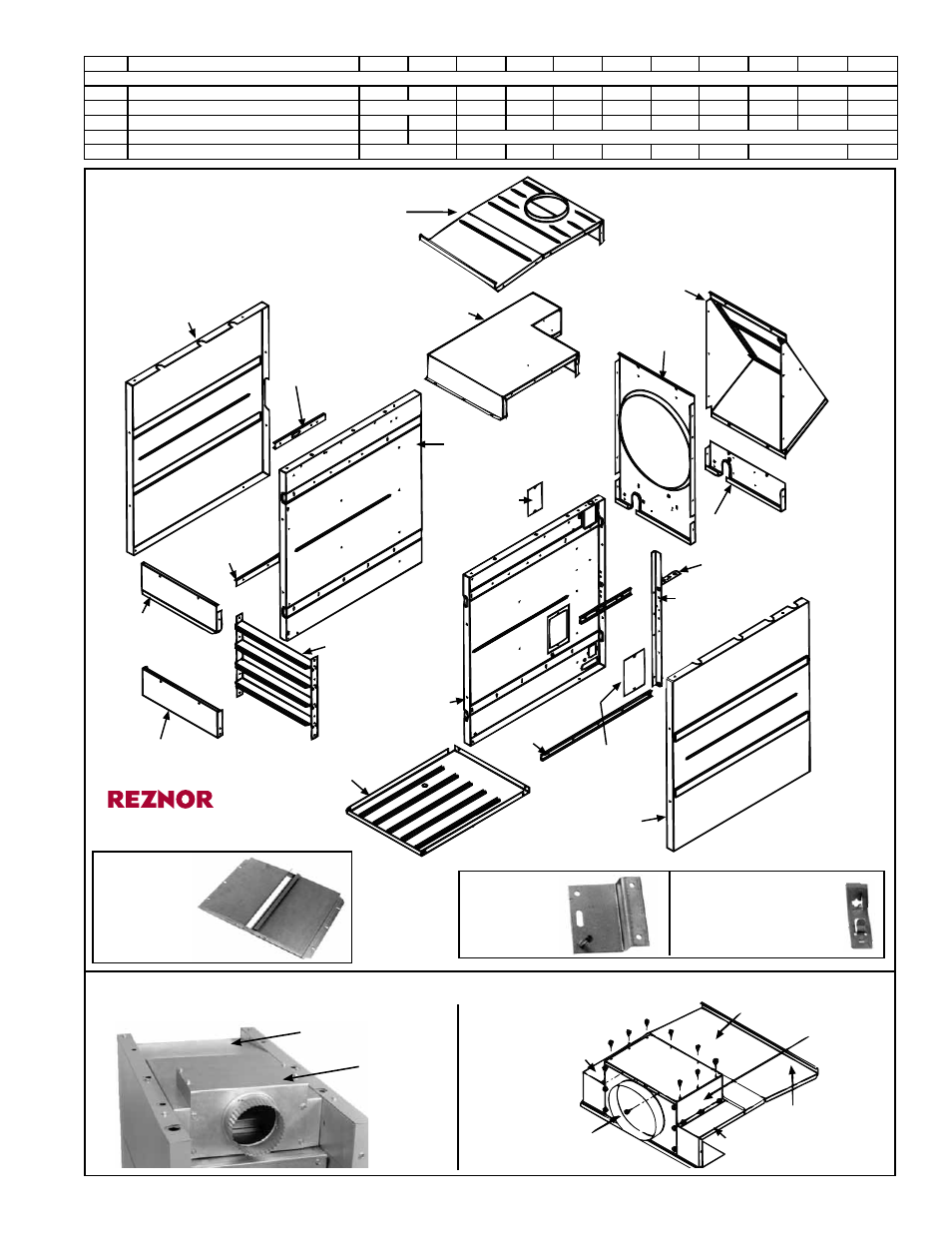

140 - Flue Collection
Box Assembly
(FE & BE Models)
Original Vertical-only drafthood
(Models F&B mfgd before 10/89)
Replace w/applicable Codes 138A,
138B, 138C, 138D illustrated below.
123 - Outer Side
Panel - left
134 - Upper
Stiffening
Channel
(B&BE Models)
132 - Inner Side
Panel - left
125 - Wiring
Access
Panel Assy
135 - Lower
Channel
(BE)
120 -
Top
Front
121 - Bottom Front
131 - Louver
Assembly
133 - Inner Side
Panel- right
126 - Bottom Pan
122 - Outer Side
Panel - right
137B
124 - Fan/
Limit Access
Panel
137A Vertical
Barrier
137B Horizontal
Barrier
129 - Back
Panel (B&BE)
128 - Fan Back
(F&FE Models)
142 - Adapter Back
(B&BE Models)
147 - Reznor ® Logo Label
Code 139-
Flue Baffle
Assembly -
Models F & B
®
Code Description 25 50 75 100 125 130 165 200 250 300 400
(On sizes 25-100 and 130-200, the cover and flue collar assembly are one piece)
139 Flue Baffle Assy - Models F & B 100859 100886 100887 100860 131811 100861 100862 100863 100864 100865 100866
140 Flue Collection Box Assy - FE & BE 97744 97746 97747 131804 97748 97749 97750 97751 97752 97753
141A Flue Baffle - Models FE & BE -- -- 97783 97784 134766 97785 97786 97787 101008 101009 101010
141B Flue Baffle Clamp - Models FE & BE -- -- 98196
142 Adapter Back including Baffles - B/BE 100871 100872 100873 131975 100874 100875 100876 100877 100878
Drafthood
Left Rear
138B Flue
Collar Assembly
Drafthood Front
138C Flue
Collar
Support
138A 3-pc
Drafthood
Assembly
Drafthood
Right Rear
138D Cover
Sizes 25-100, 130-200
138A (1-pc
drafthood)
138B -
Flue Collar
Assembly
Sizes
125,
250-400
Model F/B Drafthoods (heaters manufactured beginning 10/89)
Code 130 - Latch
Fastener for Fan Back
(used on heaters
mfgd prior to 2/95)
Code 127 -
Hinge Pin
Assy
