VL6C+ ™ SPOT LUMINAIRE USER MANUAL

Connect Series 300 Modular Rack to power source:

Three-phase power will need to be supplied to the system. The maximum recommended Modular Rack power
requirement is 200 amps, using 2/0 feeder with 4/0 Cam-Lok connectors and a 200A line disconnect. A SixPack
Chassis requires 30 amps, and uses Hubbell or Epic connectors on 8/5 multicore cable. Connector choice is
dependent upon location. This cable will need to be run from a house disconnect through a 30A line disconnect to the
racks.

WARNING:

The high voltages required to run this equipment are dangerous. Electrical "tie-ins" should be

handled by a qualified electrician.

Note: Some equipment in Europe will work using single-phase power. Check with an Account Manager regarding
your event.

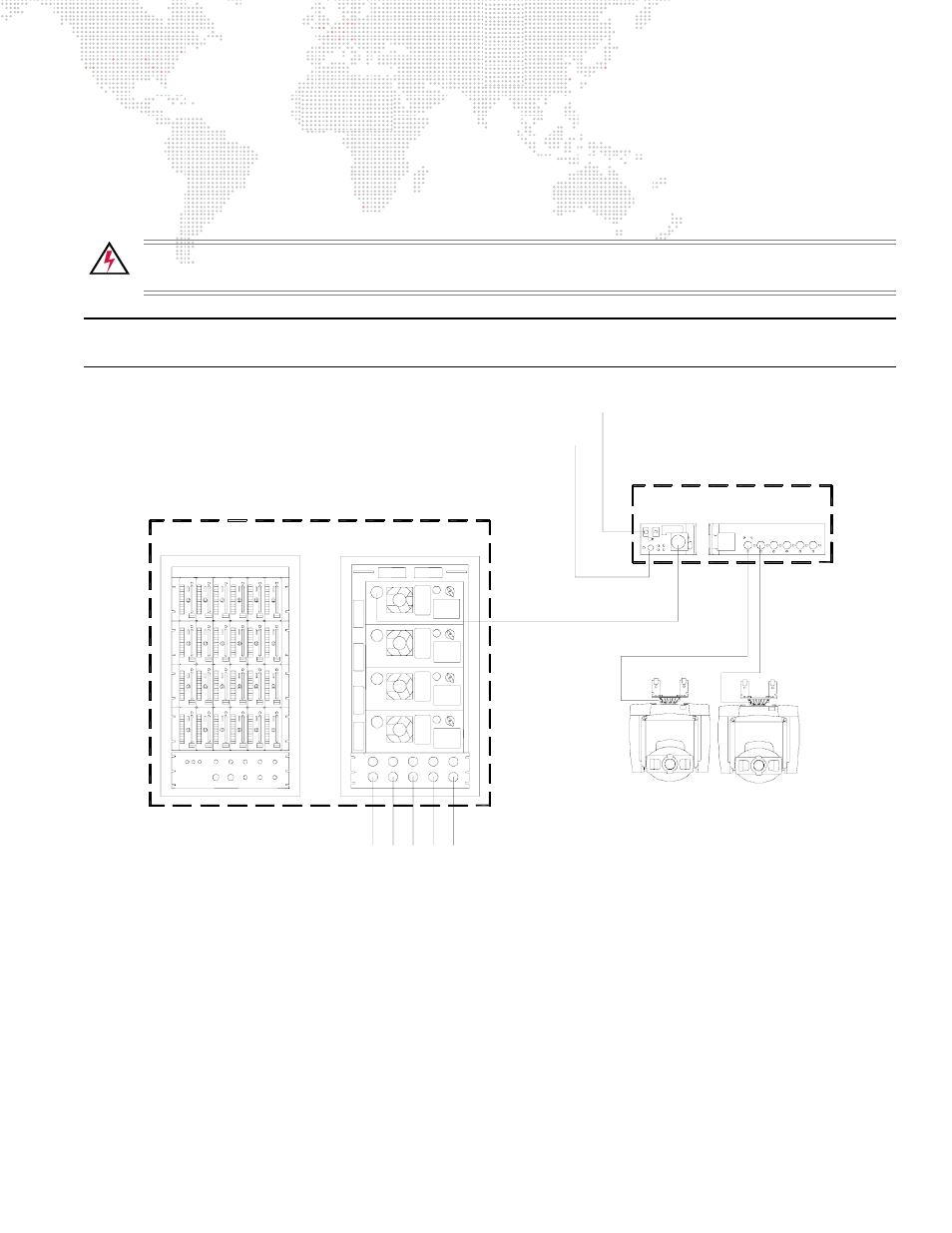

Figure 2-9: Power and Data Configuration (Typical)

Power Input

VL6C+

Series 300 Smart Repeater
or Smart Repeater Plus Unit *

FRONT

REAR

FRONT

SIDE

Series 300 Lamp Run

(Lamp Power)

A maximum of three (3) VL6C+ Luminaires may be
powered from a Smart Repeater unit and a maximum
of six (6) VL6C+ Luminaires from a Smart Repeater
Plus unit.

Series 300
APS Trunk Cable

120/208 Volt
3Ø AC Line

Series 300 Modular Rack
w/ APS6 Power Supply Modules

AC Power

DMX512 From Console
