24 VL6C+ ™ SPOT LUMINAIRE USER MANUAL
Configuring Modular Rack and APS6 Modules
Set Modular Rack SixPack chassis delta/wye switch(es) to correct setting:
Determine requirements for either delta or wye load.
+ While operation as a delta load is typical in the U.S., most European countries require the system to be configured
as a wye load. For example, if the house service is a wye-connected source and the phase-to-neutral voltage is
220, the system must be configured as a wye load.
+ Also note that if line voltage is 120 phase-to-neutral, the system must be configured as a delta load. If line voltage
is 220 phase-to-neutral, the system must be configured as a wye load.
At rear of SixPack chassis, set switch to required setting (Figure 2-8).

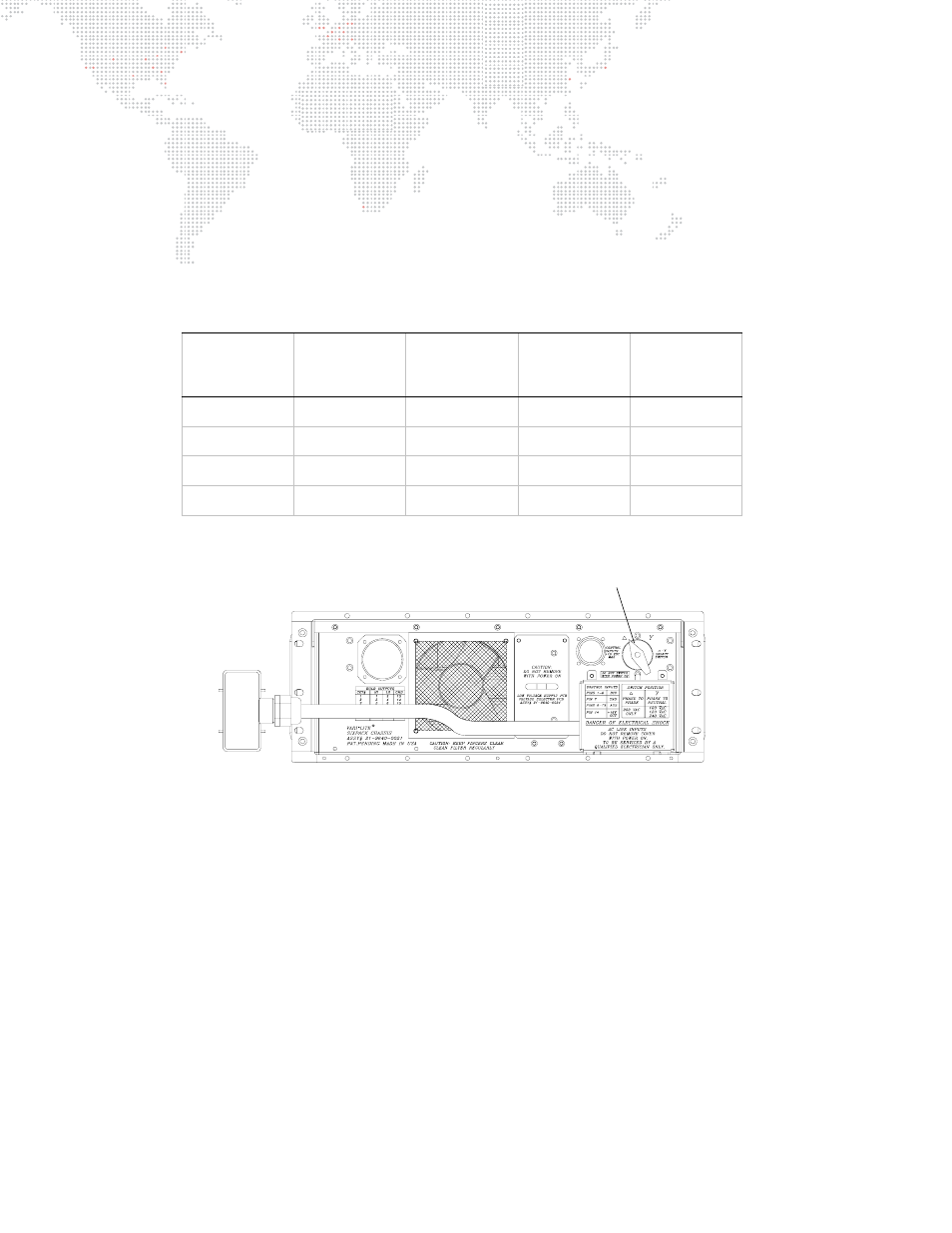

Figure 2-8: Series 300 Modular Rack SixPack Chassis
Table 2-2: Requirements For Delta and Wye Loads
Type
VAC
Phase to
Neutral
VAC
Phase to
Phase
Delta/Wye
Jumper
Position
Voltage
to
Modules
Wye 100-130 175 - 225 Delta 175 - 225
Wye 180 - 240 310 - 415 Wye 180 - 240
Delta - 180 - 240 Delta 180 - 240
Single Phase 180 - 240 - Wye 180 - 240
Delta/Wye Switch
SIXPACK CHASSIS REAR VIEW
