Carrier GT-S - Manual (Page 13)

Single-Stage Outdoor Split
R22 Systems
11 Carrier Indoor & Outdoor Split Geothermal Heat Pumps - Rev.: 08/10/05
The GT-S does not need to be located outside.
It can be placed in garages, carports, basements,
crawl spaces, etc. This may be important to some
homeowners who may be very concerned about
outdoor aesthetics. They also can utilize ground
water if placed in an appropriate indoor location.
Noise is not a problem as the GT-S is extremely
quiet (the box is sealed and insulated). The GT-S also
has excellent heating and latent cooling capacities
compared with competitive high effi ciency geothermal
units. In many cases a GT-S produces the heating output of one size larger competitor unit. And the
GT-S is likely to be the highest EER per dollar cost
unit available in the geothermal industry today.
The goal for the GT-S Series is based upon
application fl exibility, effi ciency, reliability and a solid
state microprocessor compressor control, producing
a reliable, simple product both easy to service and
install. Its effi ciency and application fl exibility make it
the “Paradigm” of geothermal heat pumps.
Insulated line
set with UV
Paint
Power
Disconnects
PVC Condensate
with vented trap
Air Pad
Low Voltage Wiring
Return Plenum
Condensing
Unit
Air Handler
TXV “IN” toward
outdoor
condensing Unit
Insulated line
set with
UV Paint
Power
Disconnects
PVC Condensate
with vented trap
Air Pad
Low Voltage Wiring
Return Plenum
Condensing
Unit
Fossil Furnace
Add-On
“A” Coil
Air
Temperature
Limit Switch
TXV “IN” toward outdoor
condensing unit

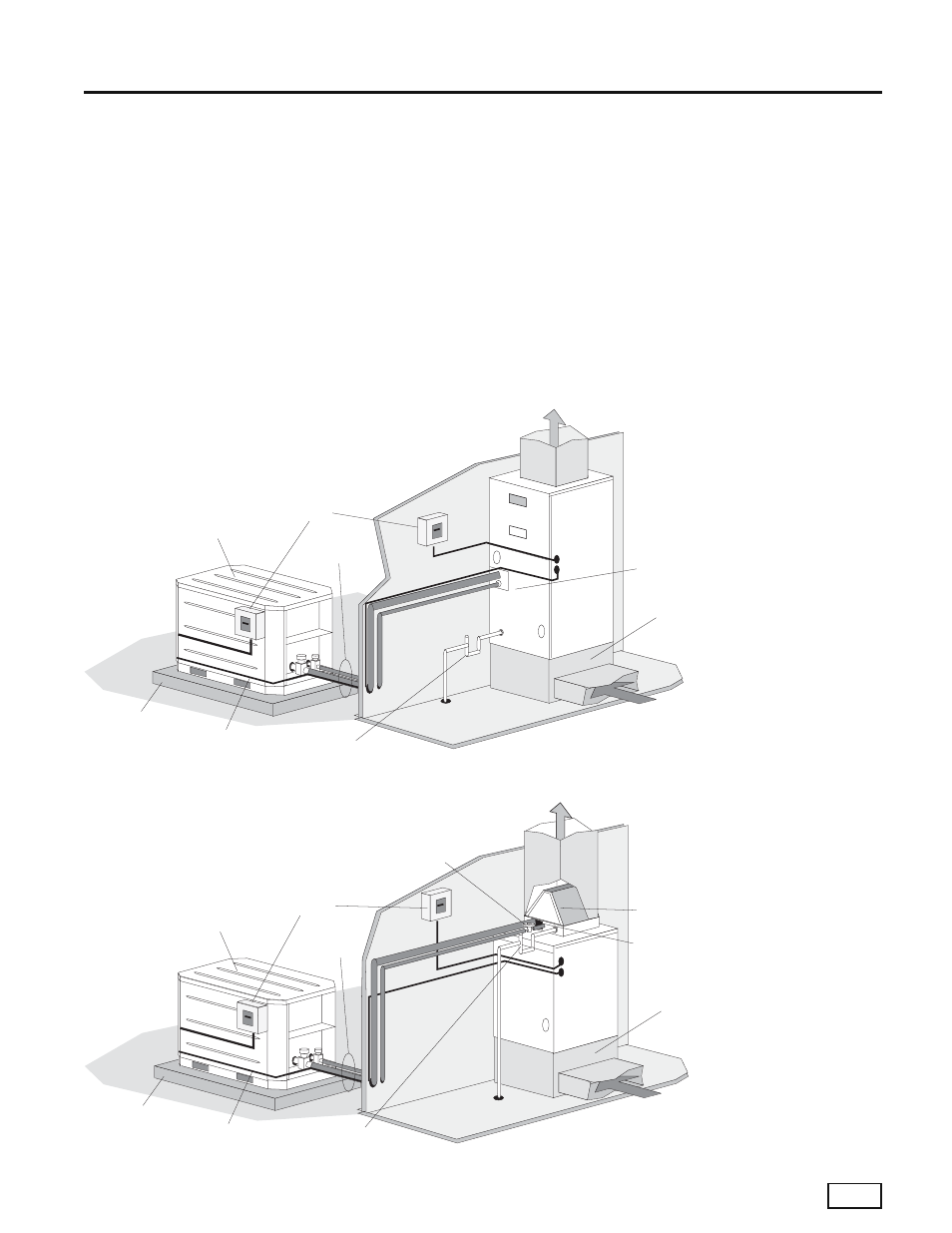

Typical GT-S / Air Handler Installation
Typical GT-S / Add-on Coil Installation
