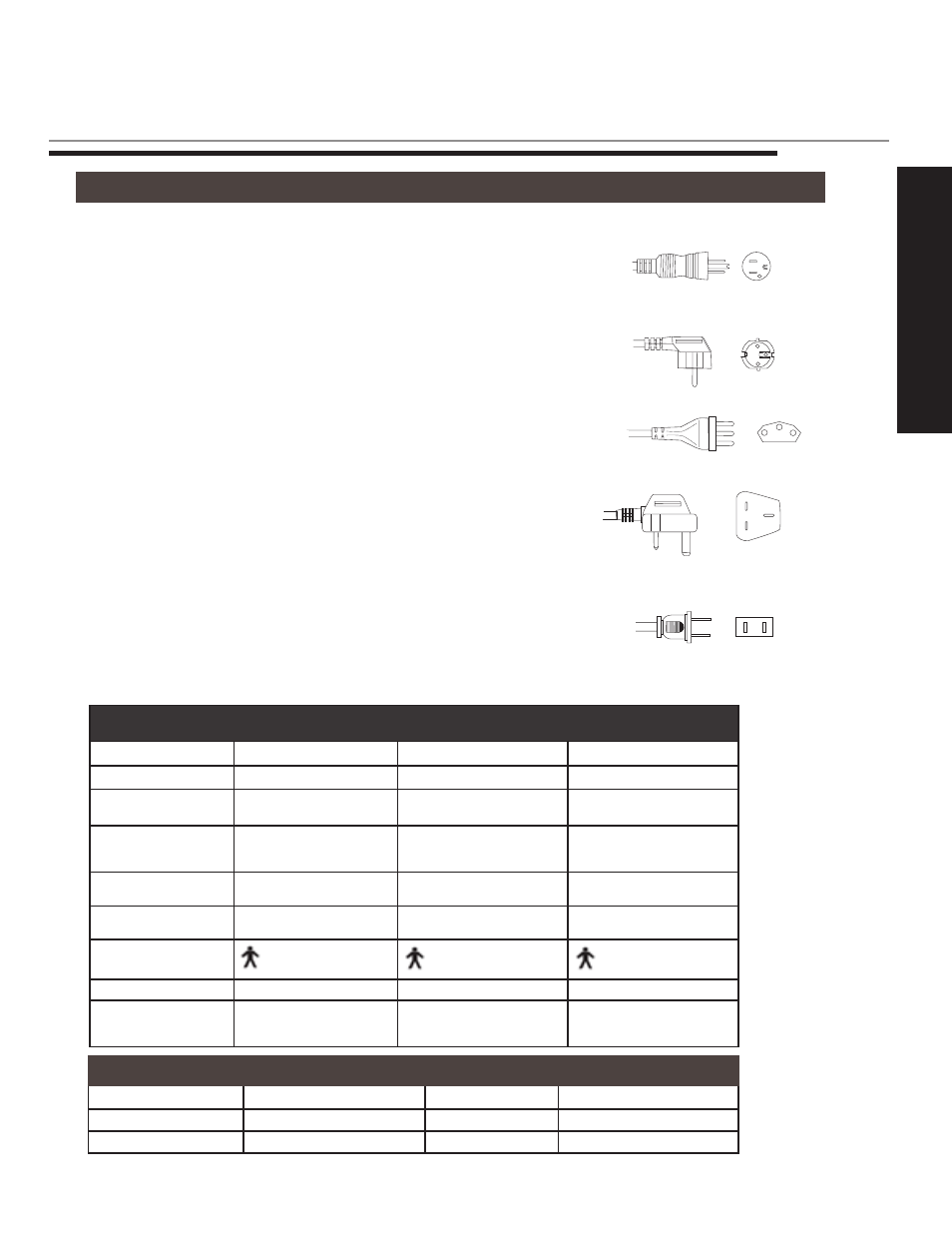

POWER LEAD PLUGS
PERMISSIBLE ENVIRONMENTAL CONDITIONS
Conditions Temperature Humidity Atmospheric Pressure
Normal Use 50° (10°C) to 100° (38°C) 20% to 60% RH 98 to 105 kPa
Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa
PERMISSIBLE ENVIRONMENTAL CONDITIONS
O
akworks ® Part #: Voltage (AC) Power Cord Plug
5097-11 120v 60 Hz 3 prong grounded
hospital grade;
North America
5097-3 220v 50/60 Hz Continental Plug; Europe
5097-4 220v 50 Hz Swiss plug; Switzerland
5097-2 220v 50 Hz British plug;
United Kingdom
N/A 100v 50 Hz 2 prong polarized plug;
Japan
(Plug comes w/
Control Box;
order Control Box
pn #4046-3)
Damaged power cords should be replaced by qualified service personnel.
18
MAINTENANCE
& SERVICE
MAINTENANCE & SERVICE
ELECTRICAL SPECIFICATIONS
Designed for: North America Europe Japan
Input Service 120 VAC/60Hz/15A 230 VAC/50-60Hz/10A 100 VAC/50Hz/15A
Current Draw 2.7 amps 1.5 amps 3.3 amps
Maximum
Momentary Current
Draw
9.0 amps 5.0 amps 11.0 amps
Voltage Output
(control box)
24 VDC 24 VDC 24 VDC
Electric Shock
Protection
Class 1 Equipment Class 1 Equipment Class 1 Equipment
Tabletop Applied Part Type B Applied Part Type B Applied Part Type B Applied Part
Table Top IEC 529 Rating IPXO IPXO IPXO
Mode of Operation Intermittent Operation
MAX 2 minutes ON
18 minutes OFF
Intermittent Operation
MAX 2 minutes ON
18 minutes OFF
Intermittent Operation
MAX 2 minutes ON
18 minutes OFF
