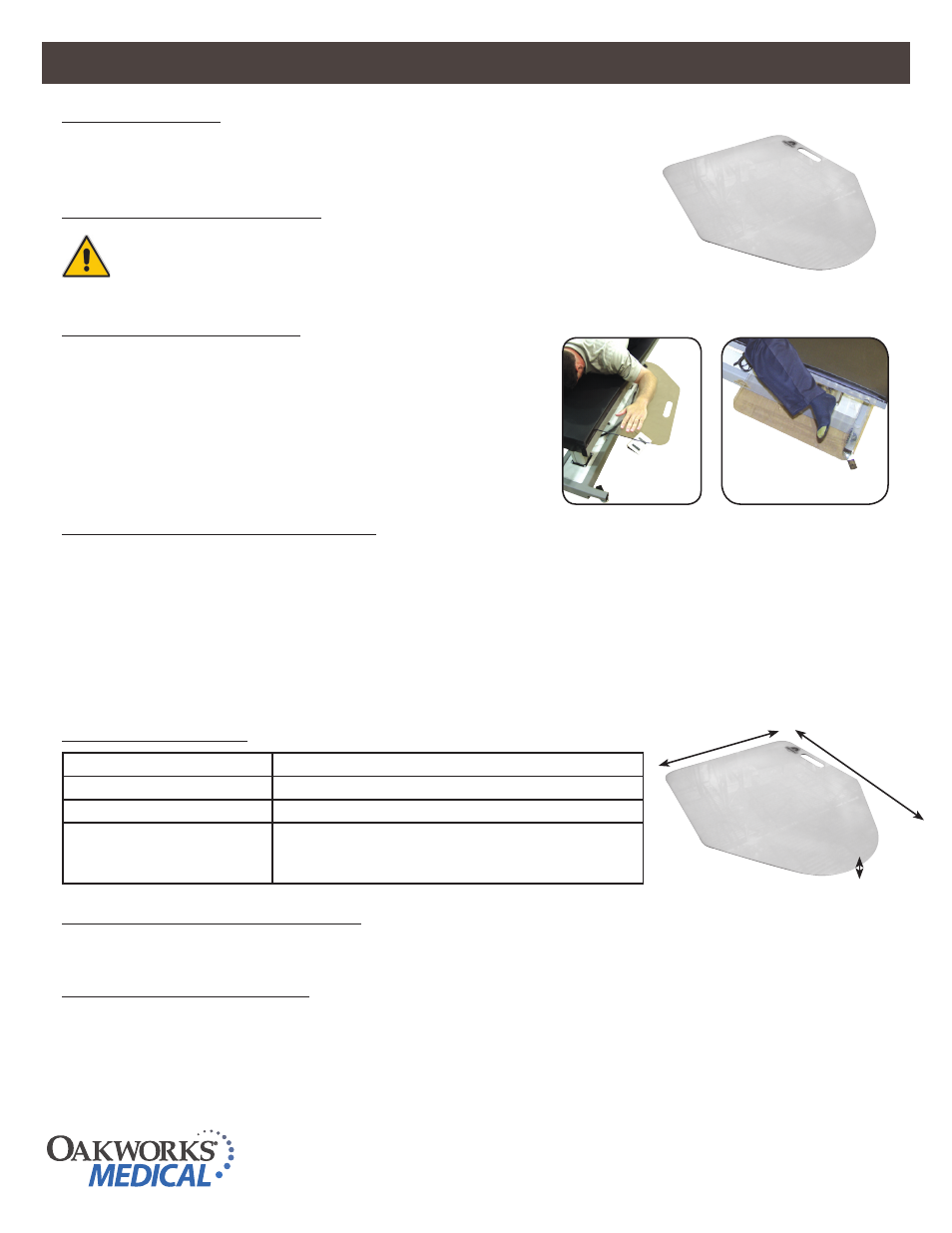

USER MANUAL - FLUORO EXTENDER

PRODUCT USE

The O

akwOrks

®

Fluoro Extender is radiolucent and offers extra width only

where you need it to achieve greater positioning accuracy for optimum imaging.

SAFETY INSTRUCTIONS

DO NOT place undue weight or downward pressure. It is a positioning

device for the arms or legs and should not be used as leverage to get on

or off the table. Injury can occur.

DIRECTIONS FOR USE

Slide the Fluoro Extender under the table top pad.
Ask the patient to lie down on the table. Position the patient to suit the

needs of the procedure. The weight of the patient will hold the Fluoro

Extender in place under the table top pad.
When finished, ask the patient to rise up enough for you to remove the

Fluoro Extender from under the table top pad.

CLEANING & DISINFECTION

Use appropriate sterilized field materials to isolate the patient from the Fluoro Extender. This also minimizes clean-

ing and disinfecting procedures Use a 10% sodium hypochlorite (bleach) solution or

Recommended Disinfectants on all

surfaces. Clean all sides of the extender. Follow the directions on the disinfectant and wipe off excess.
Recommended Disinfectants

Protex, MadaCide, Accell TB, Virox

®

Note: Damage caused by unapproved substances will not be covered under the warranty.

SPECIFICATIONS

Dimensions (X Y Z)

30” x 23-1/2” x 1/4” (76cm x 60cm x .6cm)

Maximum Weight Rating

30 lbs. (13.6 kg)

Radiolucency

Maximum of .85mm AL @ 100 kVp. HVL of 3.6mm

Environmental Conditions

Temperature: 50°F (10°C) to 100°F (38°C)

Humidity: 20% to 60% RH

Atmospheric Pressure: 98 to 105 kPa

MAINTENANCE & SERVICE

No maintenance required

REPLACEMENT PARTS

• PN 2005:

Fluoro Extender

foot

support

arm

support

X

Y

Z

Part No. MMINMD0002 Rev. A

Phone: 717-235-6807 www.oakworksmed.com

923 East Wellspring Rd. New Freedom, PA 17349
