ENGLISH
Chapter 1: Product Overview
DVR User’s Manual
9

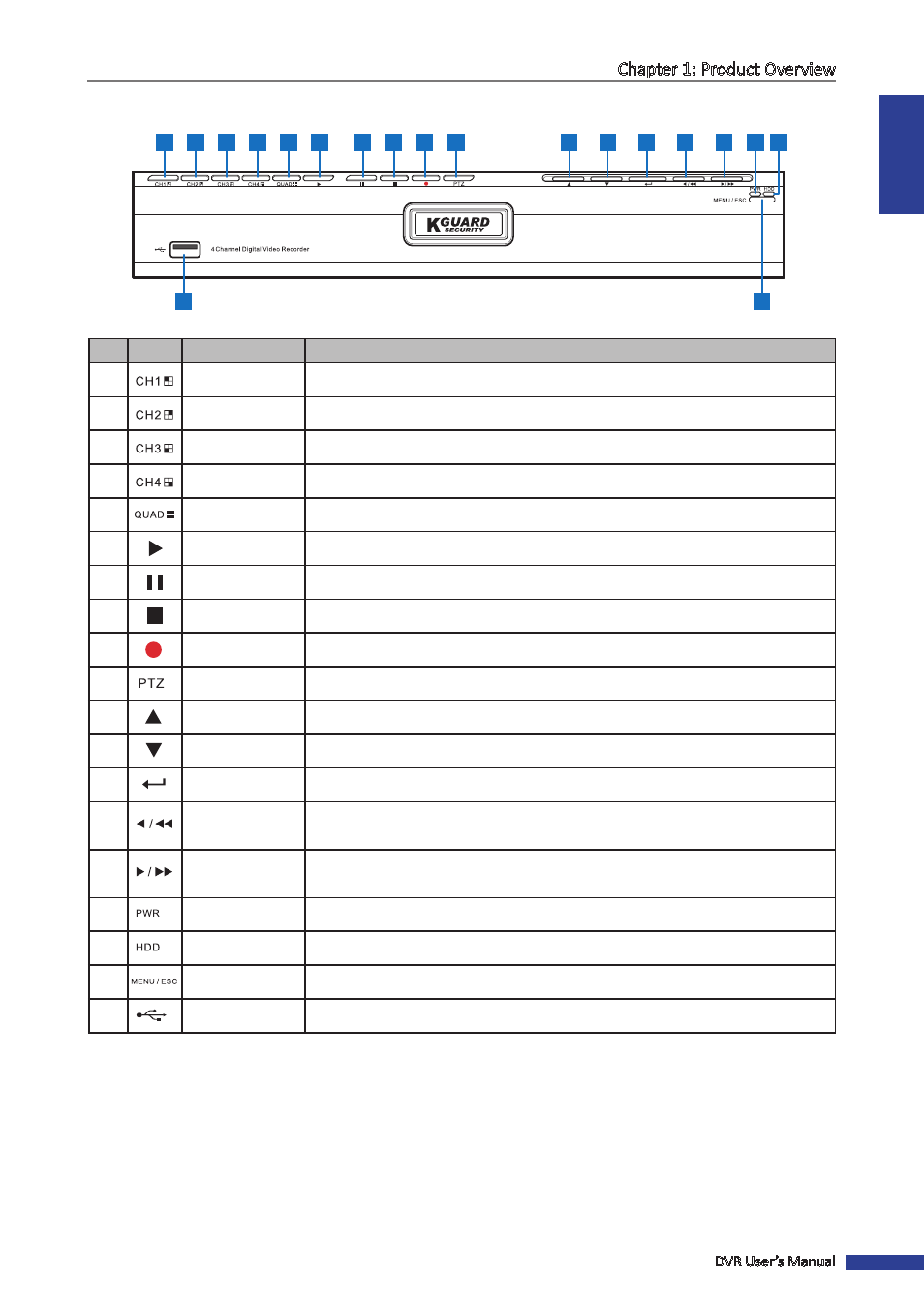

4-Channel DVR
1 2 3 4 5 6 11 12 13 14 15 16 17 7 8 9 10
19 18
No. Icon Item Description
1 Channel 1 Press to display Channel 1 into full screen.
2 Channel 2 Press to display Channel 2 into full screen.
3 Channel 3 Press to display Channel 3 into full screen.
4 Channel 4 Press to display Channel 4 into full screen.
5 Quad Press to switch to 4-window display.
6 Play Press to enter Playback mode or play recorded video.
7 Pause Press to pause the video playback or enter frame-playback mode.
8 Stop Press to stop the video playback or stop manual recording.
9 Record Press to start manual recording.
10 PTZ Press to enter PTZ mode.
11 Arrow Up Press to move up in OSD menu.
12 Arrow Down Press to move down in OSD menu.
13 Enter Press to enter the selected menu item and edit the setting.
14
Arrow Left /
Rewind Press to move left in OSD menu. During video playback, press to rewind video.
Can also be used for switching OSD control panel.
15
Arrow Right /
Fast Forward Press to move right in OSD menu.
During video playback, press to fast forward video.
16 Power Indicator Lights green to indicate the power is turned on.
17 HDD Indicator Blinks continuously to indicate the HDD is being accessed.
18 Menu / Escape Press to enter or exit the OSD menu.
19 USB port Connects to a USB device (flash drive, hard drive, recorder, etc).
