ENGLISH
Chapter 1: Product Overview
8
DVR User’s Manual
1.3 Parts and Functions

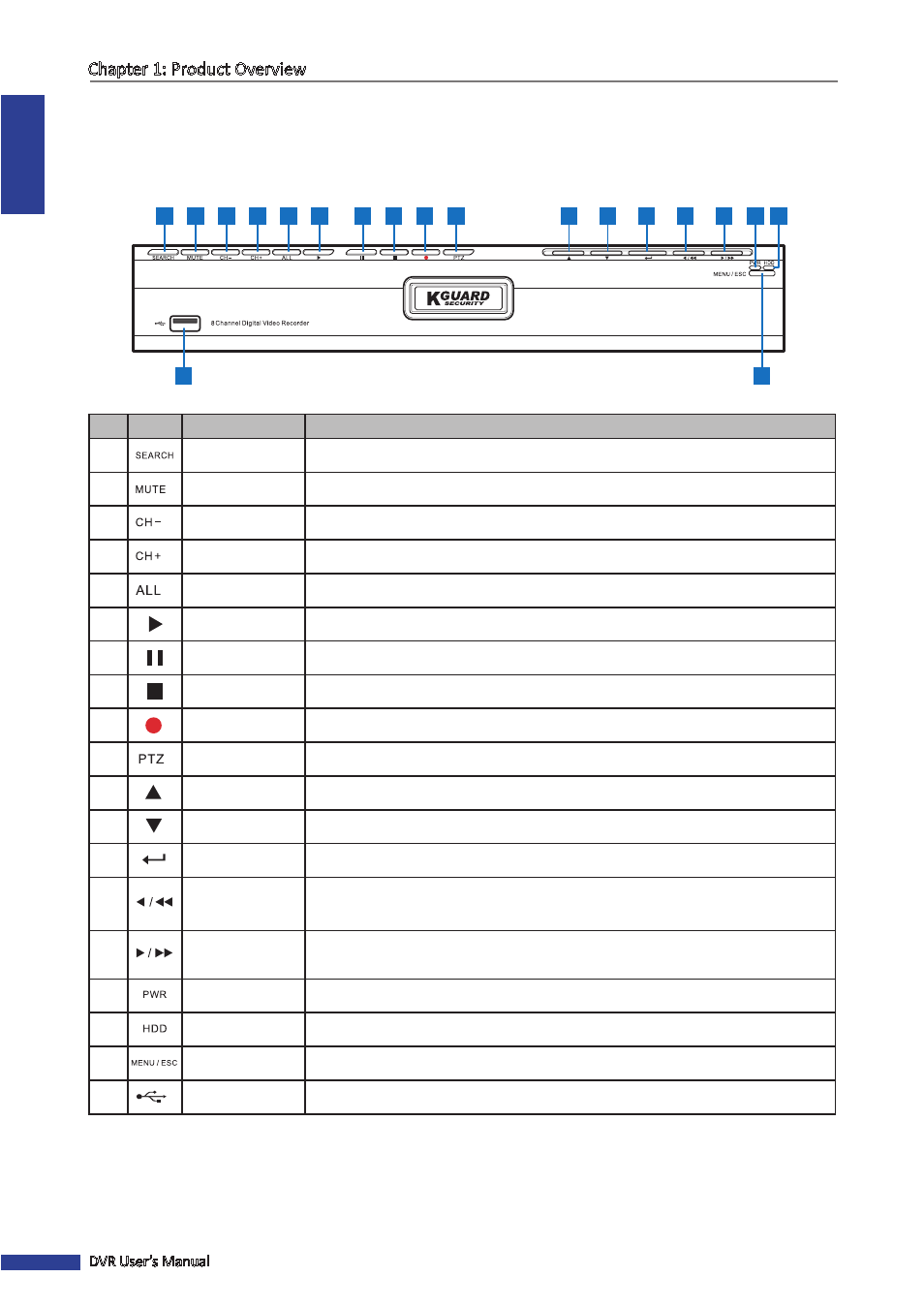

1.3.1 Front Panel
8-Channel DVR
1 2 3 4 5 6 11 12 13 14 15 16 17 7 8 9 10
19 18
No. Icon Item Description
1 Search Press to display the pop-up menu.
2 Mute Press to activate the mute function.
3 Previous channel Press to switch to the previous channel.
4 Next channel Press to switch to the next channel.
5 All Press to switch to 4-window or 8-window display.
6 Play Press to enter Playback mode or play recorded videos.
7 Pause Press to pause the video playback or enter the frame-playback mode.
8 Stop Press to stop the video playback or stop manual recording.
9 Record Press to start manual recording.
10 PTZ Press to enter PTZ mode.
11 Arrow Up Press to move up in OSD menu.
12 Arrow Down Press to move down in OSD menu.
13 Enter Press to enter the selected menu item and edit the setting.
14
Arrow Left /
Rewind Press to move left in OSD menu. During video playback, press to rewind the video.
Can also be used for switching OSD control panel.
15
Arrow Right /
Fast Forward Press to move right in OSD menu.
During video playback, press to fast forward the video.
16 Power Indicator Lights green to indicate the power is turned on.
17 HDD Indicator Blinks continuously to indicate the HDD is being accessed.
18 Menu / Escape Press to enter or exit the OSD menu.
19 USB port Connects to a USB device (flash drive, hard drive, recorder, etc).
