Instruction Manual
HK-D
HK-D-BA-e-1311 11

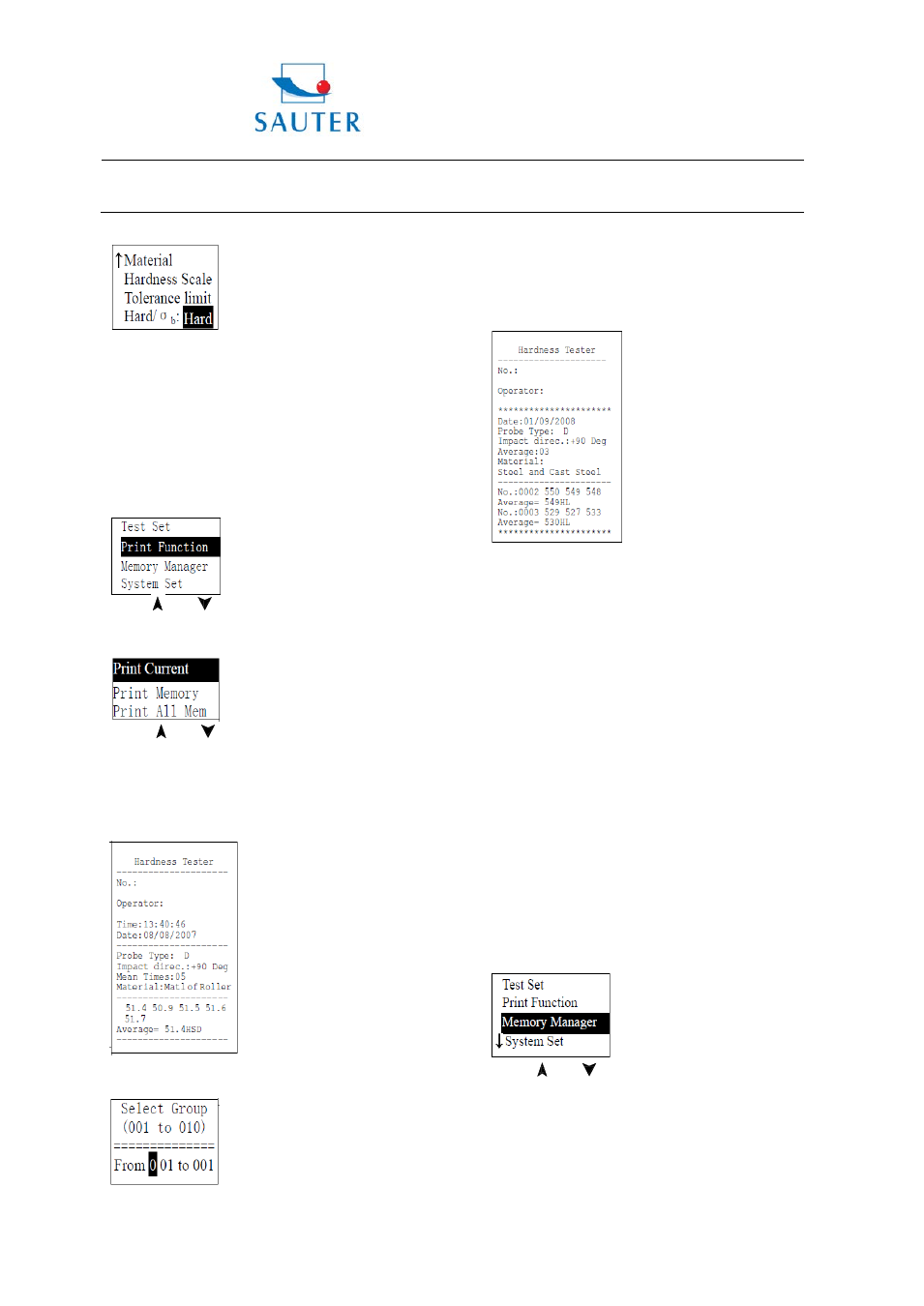

6.5.6 Hardness/
σ
b
setting
Press 【 ENTER】 key to perform the selection between
【 Hard/
σ
b
】 , and the cursor will exchange between
hardness and strength.
Note: Only D/DC type impact device is provided with
the function of strength measuring. Therefore, the item
can only be set to
【 Hard 】 if the impact device is not D
or DC type.
6.6 Print function
If it is in main display interface, press 【 MENU】 key to
enter main menu.
Press【 】 or【 】 key to move cursor to 【 Print
Function】 .
Press 【 ENTER】 key to enter 【 Print Function】 menu.
Press 【 】 or【 】 key to move the cursor to the print
function required, then press 【 ENTER】 to print.
6.6.1 Printing current value
Note: Information about serial number and operator
should be filled by manual.
6.6.2 Print Memory value
As for 【 Print Memory】 , the group range is necessary to
be selected firstly, and the group range which saved in
memory will be displayed at the same time.
Press number key to input the value, and the cursor can
move in circles to right automatically.
Press 【 ENTER】 key to confirm print.
Press 【 ESC】 key to cancel print.
Information to be printed includes: tester name, date, type
of impact device, impact direction, average times, material,
group No., single measured value and average value.
If the information in the group is as the same as that in the
previous group, such as date, type of impact device,
impact direction, average times, material and hardness
scale, only group No., single measured value and average
value can be printed, otherwise date and measuring
conditions can also be printed out.
Note: 1. Actual number of groups will be printed in
case of the number which had been set exceeds the
actual range.
2. No difference for the sequence to print the starting
and ending group, that is to say if 1~5 groups will be
printed, the sequence can be set from 1 to 5 or from 5
to 1.
3. Wider the range of groups, shows the nearer the
group from current; on the contrary, it will be further.
6.6.3 Print all memory
Press 【 Print All Mem】 key to print the values of all groups
in the memory in the same format.
6.7 Memory manager
When in the main display interface, press 【 MENU】 key to
enter the main menu.
Press 【 】 or【 】 key to move the cursor to 【 Memory
Manager】 .
Press 【 ENTER】 key to enter menu 【 Memory Manager】 .
If no data in the memory, “No Memory!” will be showed,
and return subsequently.
