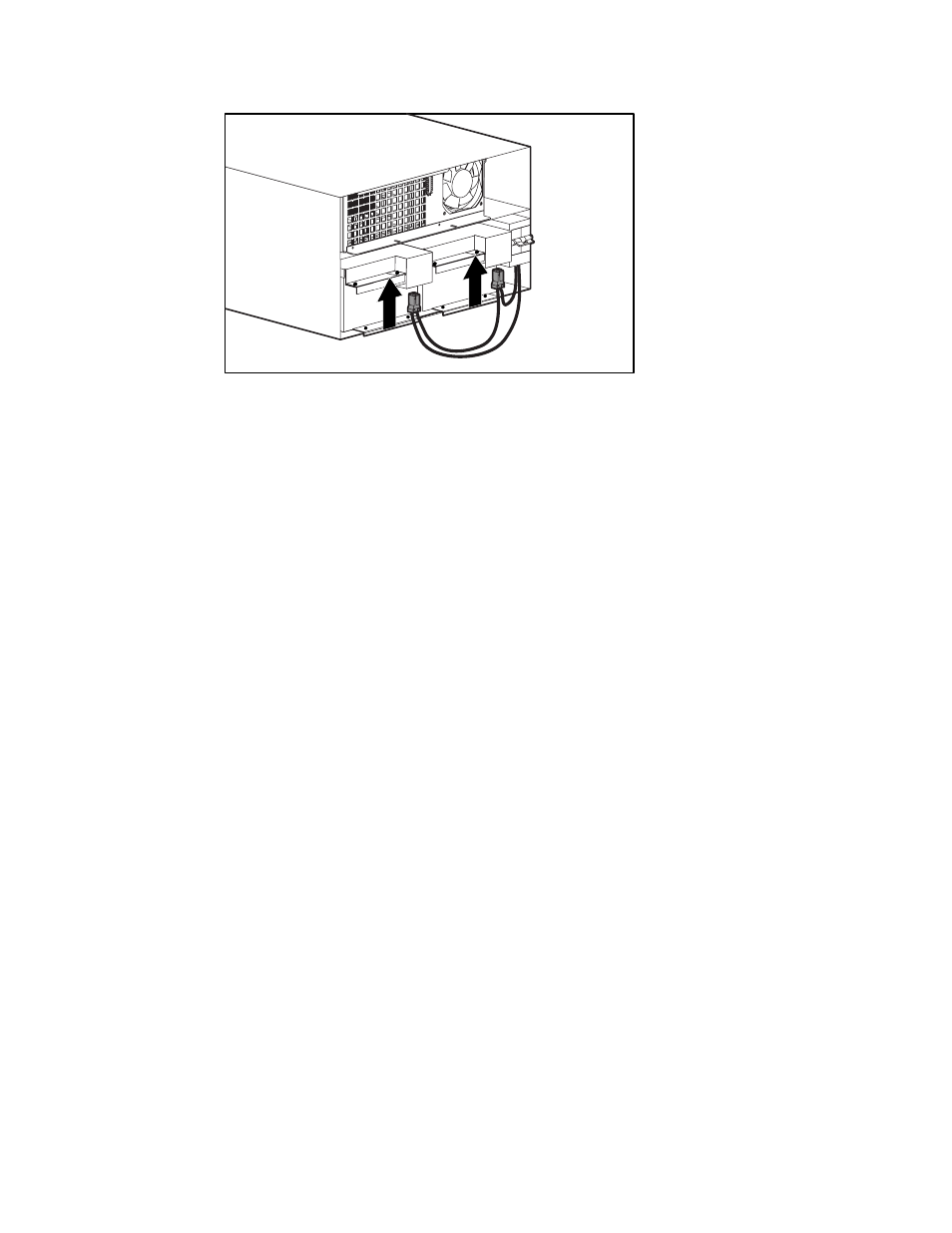

Figure 2-11. Connecting battery packs to the Compaq R6000 UPS
NOTE: When attaching battery cable connectors, the connectors will provide a positive
latch into place if the release tabs are left free during attachment.
