INSTALLATION
m
s
‘Hi
co'
Before you start... Connections
After unpacking the system, remove all protective material.
Before connecting the system to the power, first check
to see if the power voltage as shown on the type plate
corresponds to your local power voltage. If it does not, consult
your dealer or service organization.
If your set is equipped with a voltage selector, set this selector to
the local power voltage.
The typeplate is located at the rear of the system.
Place the system on a hard surface.
Do not cover the vents and make sure that you leave sufficient
room around the unit for ventilation.
Remote control:
Open the battery compartment and
insert the batteries supplied (type
R03, UM-4 or AAA) as indicated.
Remove the batteries if exhausted or
if they will not be used again for a
long period of time.

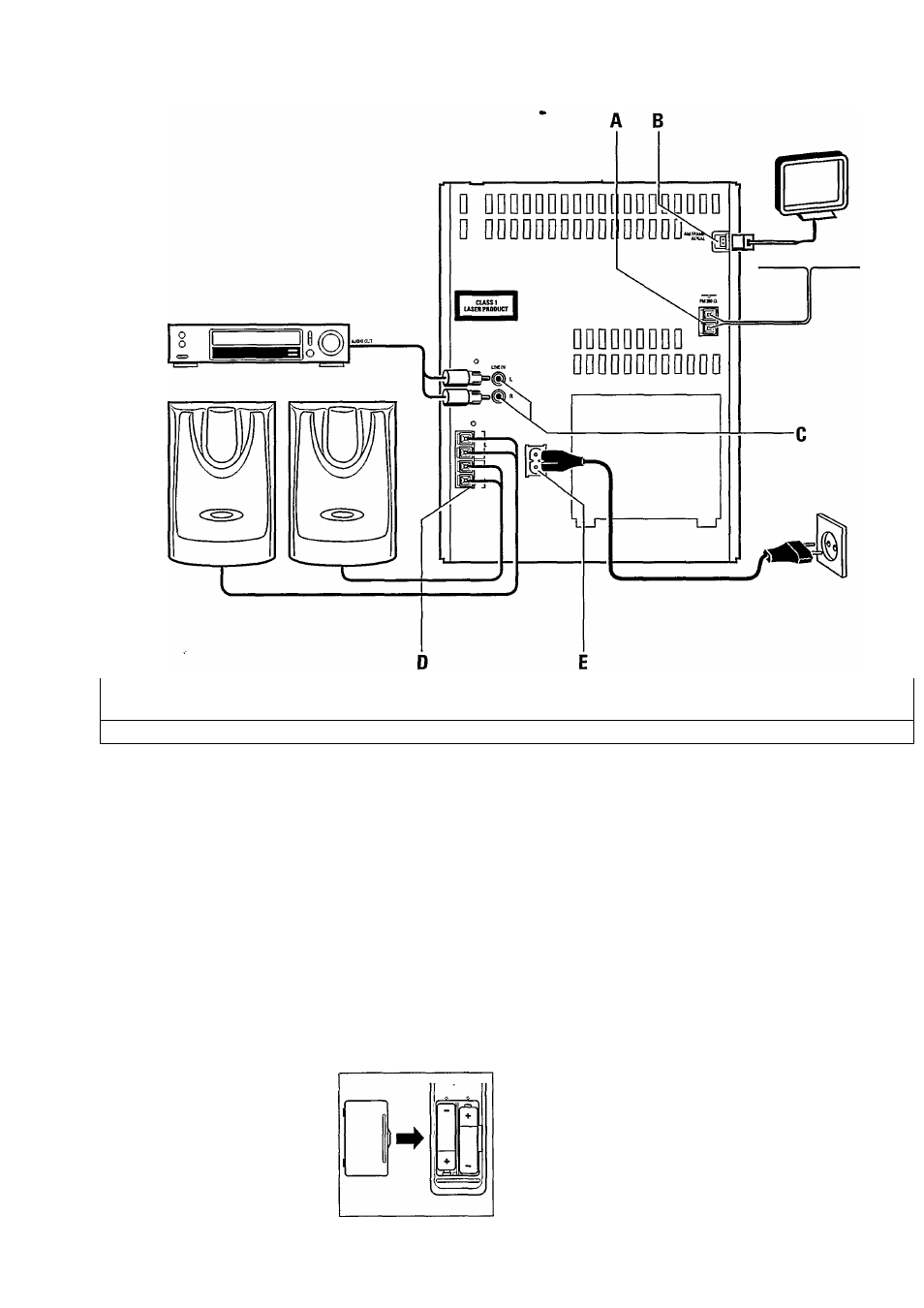

A FM 300 Q - Jack for a FM antenna, 300 Ohms.
Connect the supplied antenna wire with this jack. Find a position
for best reception. Then mount the antenna to the wall or a
window in a T-shape. Keep the dipole antenna away from the
system to avoid unwanted noise.
For good FM stereo reception, use an FM outdoor antenna or a
connection to your house distribution system.
B AM FRAME AERIAL - Connector for the supplied AM frame
antenna. Connect the plug of the AM frame antenna to this jack
and position the frame antenna for optimum reception. Do not
place the frame antenna too close to the units, the wires or the
boxes, as this may cause unwanted noise.
C LINE IN - Input jacks (Left/Right) for connecting other sound
sources (e.g. VCR, TV audio output etc.).
D Terminals for two speakers with an impedance of at least 6 ohms
(see SPEAKER CONNECTIONS).
E MAINS - Power jack. After all other connections have been
made, connect the AC power cord to the MAINS jack and the
wall jack.
