47

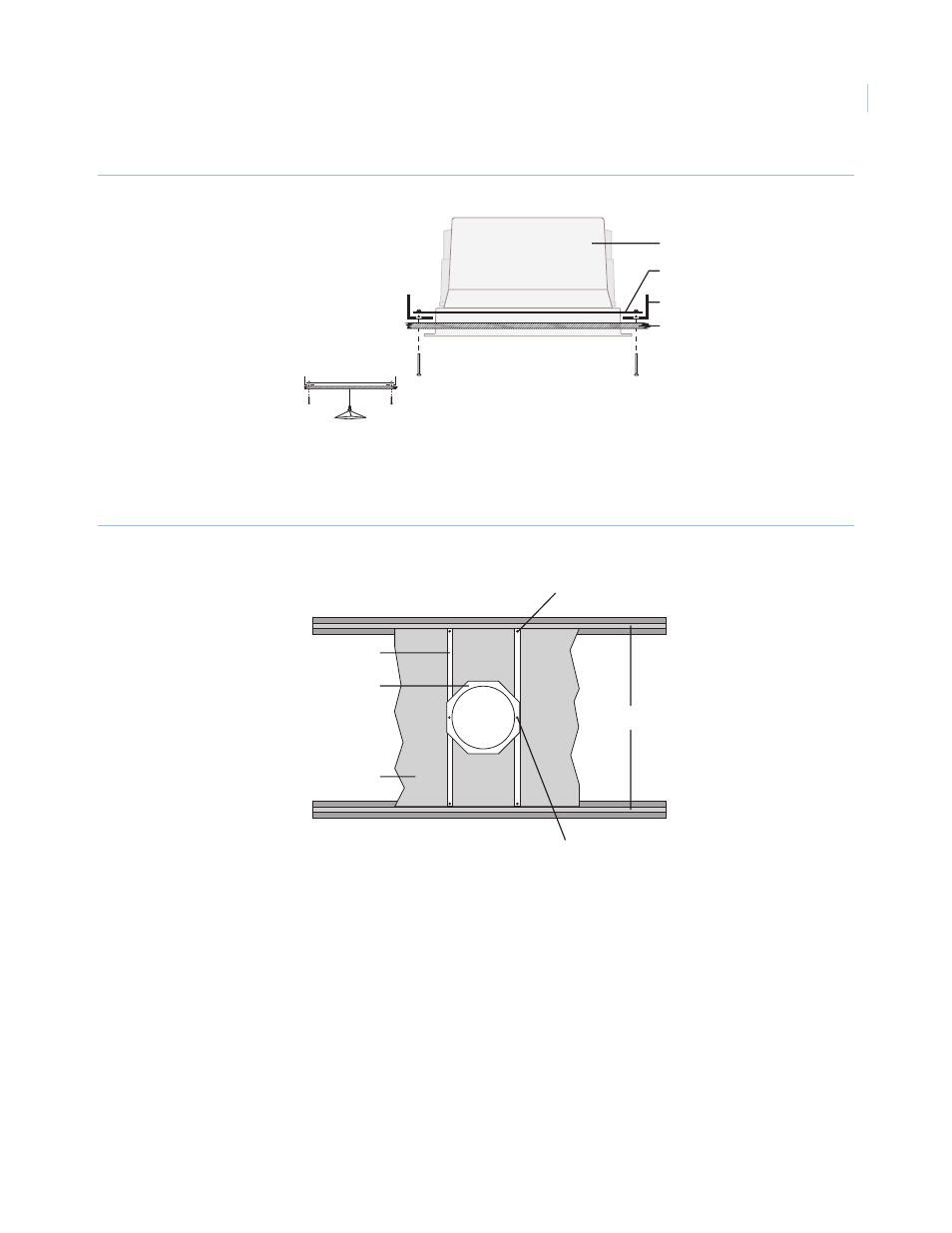

Figure 39. Fastening the support kit onto the removable ceiling panel
7. Using the last four of the fasteners provided, fasten the ends of the angle brackets to the ceiling panel.
8. Reinstall the panel in the ceiling (Figure 40).
Figure 40. Installed T-bar support kit
9. Return to Installing the housing on page 14 to finish installing the dome.
Flush-mount
housing
Ceiling ring
Angle brackets
Removable
ceiling panel
Viewed from side
(shown with housing)
Note: Adhere to minimum load
requirements. See Table 1 on page 4.
End mounting holes of
the angle brackets
Ceiling T-bars
Center mounting holes of
the ring and brackets
Housing
passthrough
Viewed from above
Angle
brackets
Ceiling
ring
Removable
ceiling
panel
