CyberDome II
Installation Manual
16
Fan installation
CyberDome II flush-mount housing kits come with a fan assembly, which you will need to install on the tilt
arm of the PTZ unit. If you are retrofitting an existing CyberDome I flush-mount housing with a
CyberDome II PTZ unit, you will also need to install a fan. You may use the fan from your CyberDome I PTZ,
or call Customer Service (see
Contacting us on page 38) to order a new one (part number 10556789A).
To install a fan on the PTZ unit, do the following:
1. Slide the slots on the fan bracket onto the mounting screws on the PTZ unit (Figure 14).

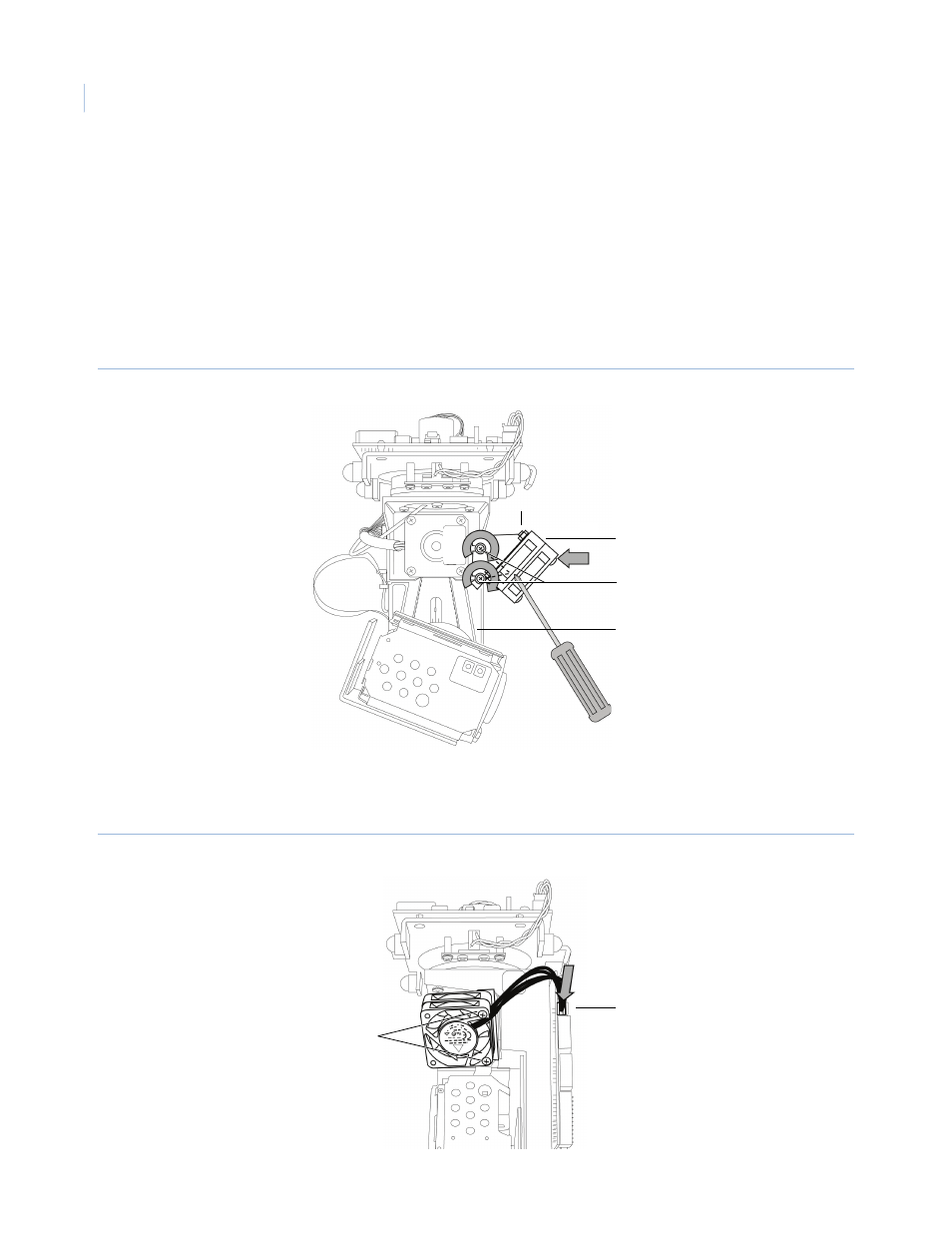

Figure 14. Installing the new fan on the PTZ unit
2. Tighten the mounting screws (clockwise) to secure the fan and bracket to the PTZ unit.
3. Connect the fan plug to the fan connector on the PTZ unit. (Figure 15).
Figure 15. Connecting the new fan cable
Fan and bracket
PTZ unit
Mounting screws
Slots
Fan plug
Mounting screws
