CyberDome II
Installation Manual
20
Components used for basic and advanced operation
Connect data, video, and power cables to the components in the dome for basic operation (Figure 17). How many
cables you will feed into the housing depends upon how many video, data, and power cables you will be using.
For pipe capacity, see
Power cable size and length requirements on page 6.
The dome uses RS-485 or RS-422 for data communication. See Cable requirements on page 6 for more
information on limitations.

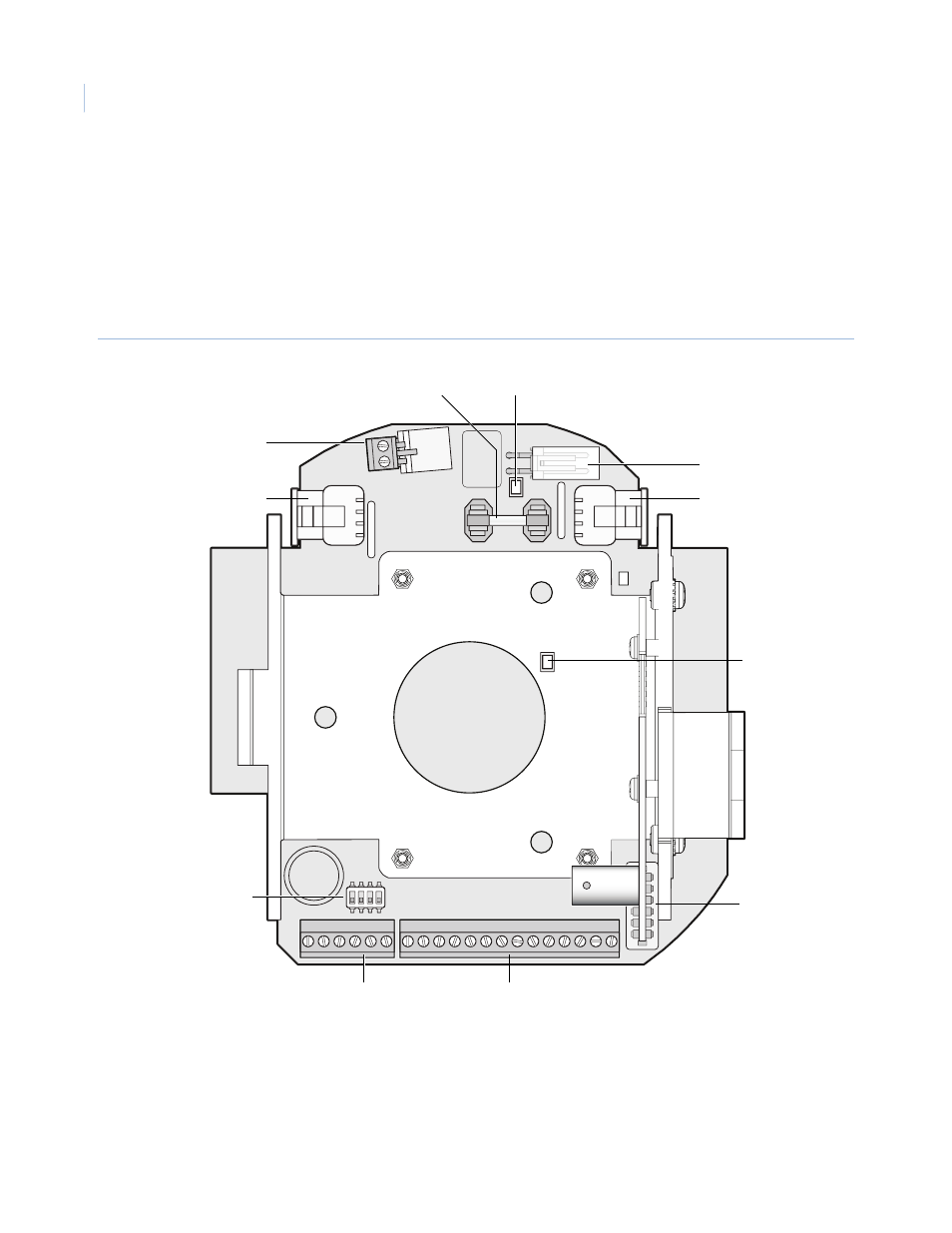

Figure 17. Housing board
Table 5 on page 21 explains the red and green LED activities for the housing board.
UTC LED
Edge connector
Alarm/contact connectors UTP/data connectors
Heater/fan connector Heater/fan connector
Power connector
Thermostat
Power LED 2 A fast-blow fuse
Data termination
DIP switches
