Chapter 1
Introduction
3
System requirements
For proper operation, adhere to the following operational, load, cable, and power requirements for
CyberDome II domes.
Operational requirements
CyberDome II contains a built-in receiver that decodes commands originating from a compatible controlling
device, such as a keypad or ASCII control software. A minimum of one controlling device is required for
operation, as shown in Figure 1. In this typical DVR system, an operator can pan, tilt, and zoom the camera,
find presets, and start preset and ShadowTours from the keypad.

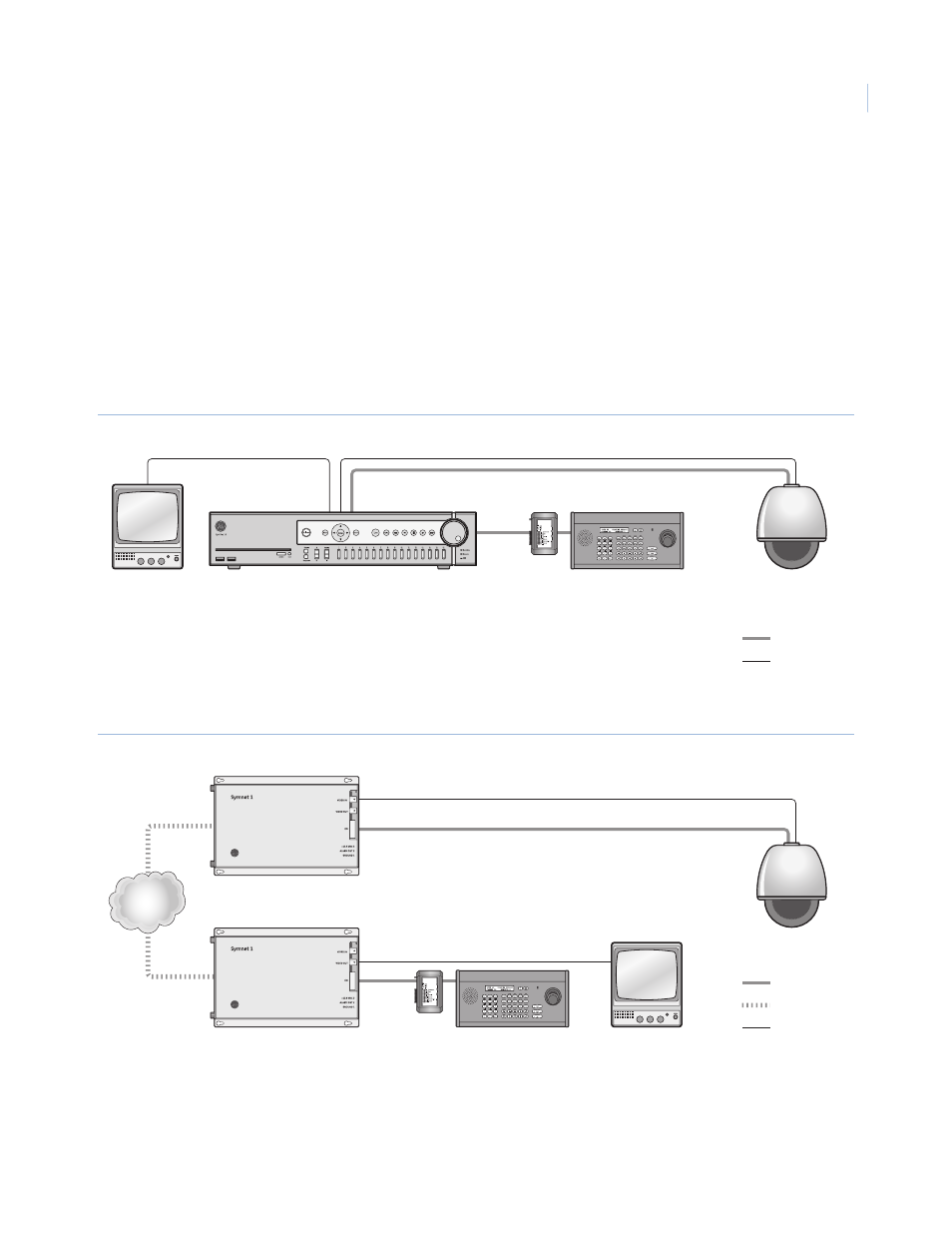

Figure 1. Typical DVR system
Figure 2 shows a typical network system, and Figure 3 on page 4 shows an enhanced system.
Figure 2. Typical IP system
SymDec 16 DVR
(IP digital video recorder)
I/O box KTD-405A
controller keypad
CCTV
monitor
RS-485
Video
CyberDome II
RS-485
SymNet
IP encoder/decoders
I/O box KTD-405A
controller keypad
CCTV
monitor
TCP/IP
Video
CyberDome II
