CyberDome II
Installation Manual
4

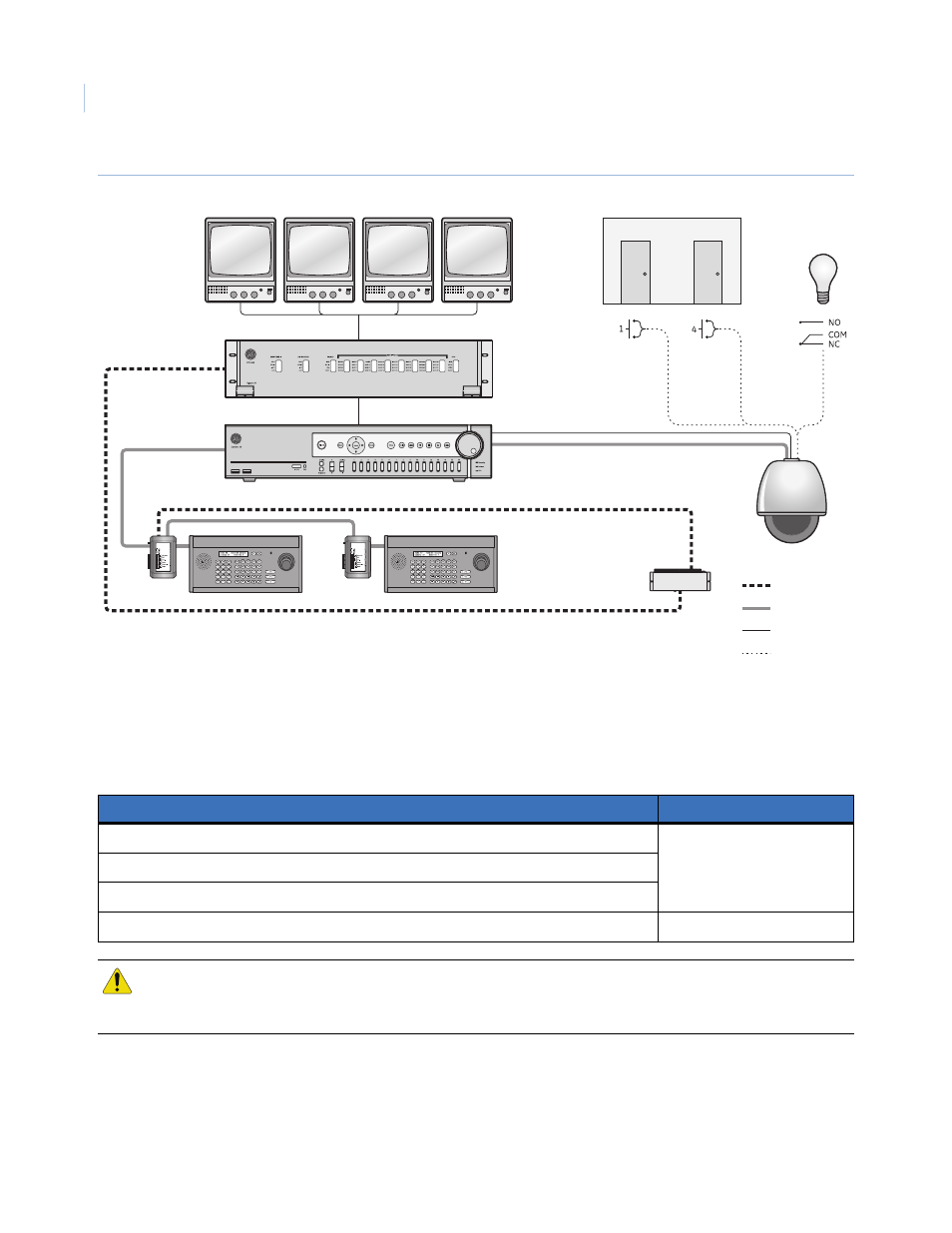

Figure 3. Typical enhanced system
Minimum load requirements
Table 1 lists the load requirements for all CyberDome II dome configurations.
Table 1. Minimum load requirements of dome configurations
Dome configuration Minimum load
Rugged, cast aluminum pendant-mount housing (with any mount) 100 lb.
Heavy-duty housing (with any mount)
Swing-arm mount (with any dome except heavy duty or flush-mount)
All other dome and mount configurations 50 lb.
CAUTION: For safety, the mounting surface, hardware, and procedure used for securing the dome must support
the weight of the dome, mount (if used), cables, and any structural or environmental vibration according
to local codes.
RS-485
Video I/O box KTD-405A
controller keypad
Alarms
CCTV monitors
I/O box KTD-405A
controller keypad
SymDec 16 DVR
KTD-83 data
distributor
CyberDome II
Example site ID #15
KTD-440 switcher
RS-422
Alarm inputs
(dry contacts)
Relay
outputs
