Setting the camera’s address
To set the DIP switches to indicate a site number, do the following:
1. Locate the site address DIP switch block (Figure 23).
2. Using Table 7, determine which DIP switches when turned on will add up to the site number for the
camera and set those switches to the on position. See Figure 24 for an example.
3. Place the switches that correspond to those values in the on position.

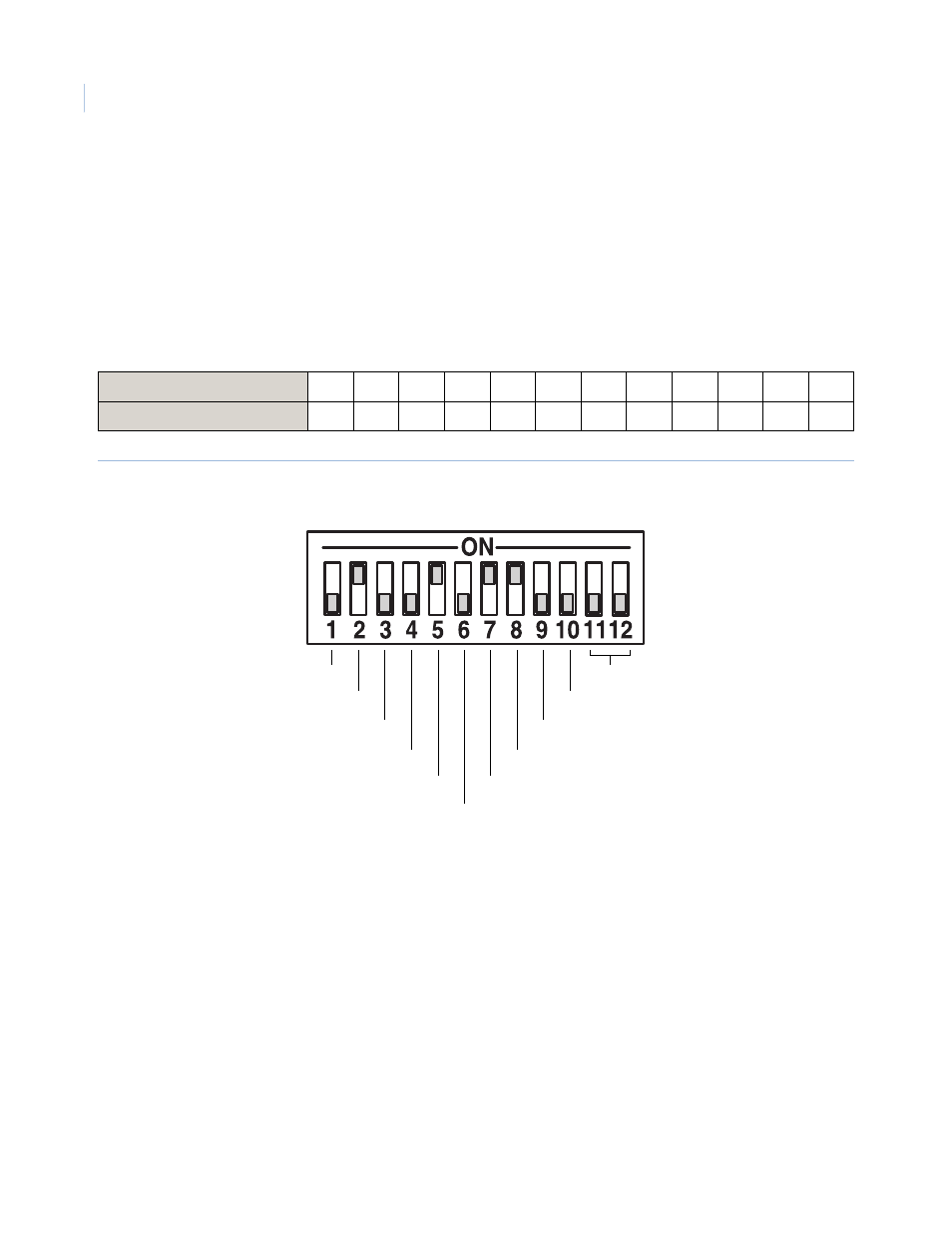

Figure 24. Address DIP switches (set to 210: 128 + 64 + 16 + 2)
Table 8 on page 29 shows the DIP switch settings for cameras 1 through 64.
Table 7. Dip switch positions and equivalent values
DIP switch position number 1 2 3 4 5 6 7 8 9 10 11 12
Equivalent value 1 2 4 8 16 32 64 128 256 512 -- --
2 1 = 2
2 2 = 4
2 3 = 8
2 4 = 16
2 5 = 32
2 6 = 64
2 7 = 128
2 8 = 256
Unused 2 0 = 1
2 9 = 512
Zone address 210 (128 + 64 + 16 + 2)
