Chapter 2

Housings and cables

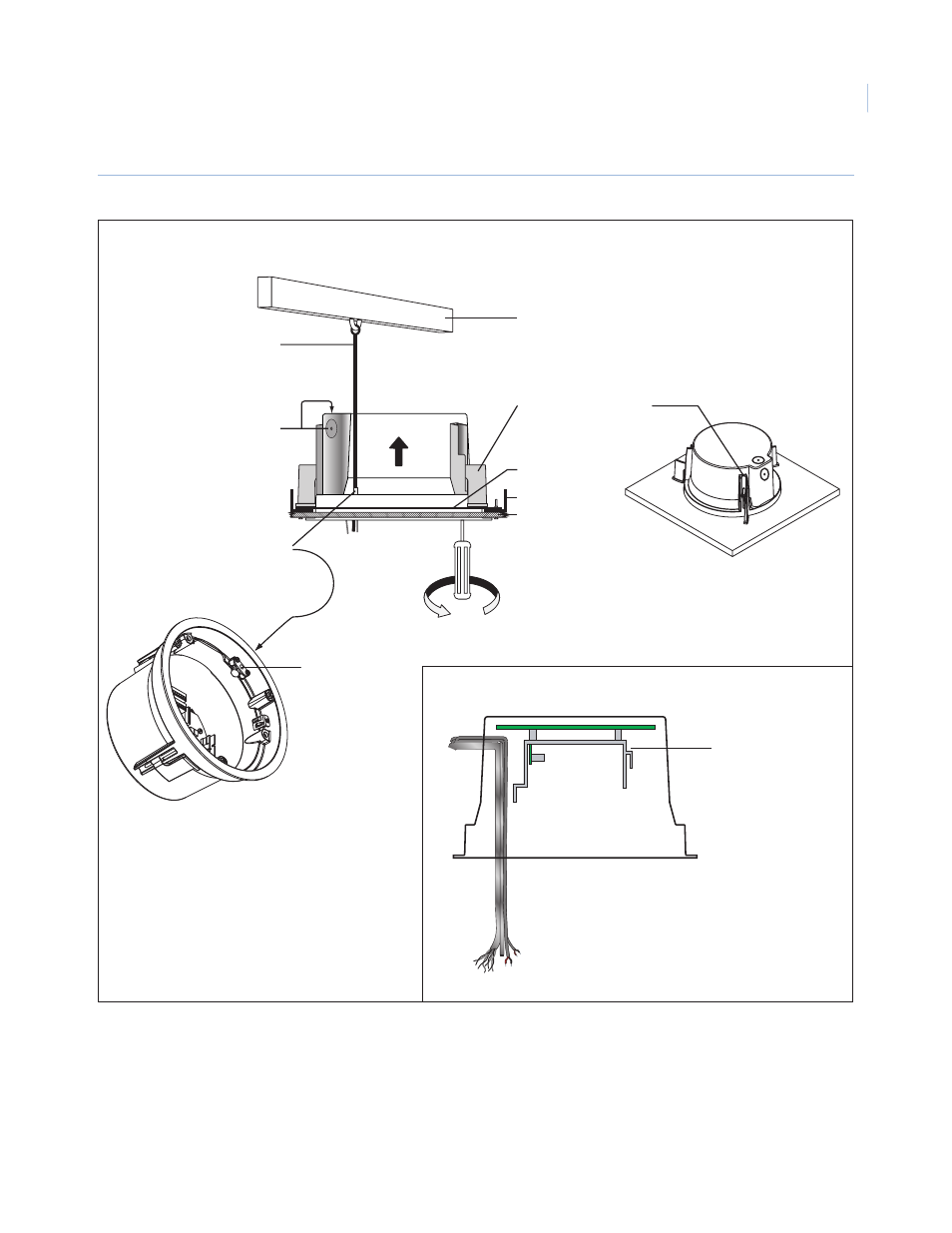

Figure 13. Installing the flush-mount housing

Nipple

(snipped off to access
the safety cable clip,
which is inside the housing)

3/4 in. conduit knockouts (2)

Cables fed

through mount

and housing

Ceiling ring

Ceiling

Angle brackets (2)

Housing tabs (3)

(screwed open and down
against the mount or ceiling)

Clip for safety cable

(inside housing)

Safety cable

Building superstructure

Cables are fed through: the cable entry hole in the
side (or top) of the housing. Route the wires through
the top or side of the housing and around the
camera bracket.

Upper bracket

Flush-mount cabling
