CyberDome II

Installation Manual

10

Flush-mount wire routing

Cables are fed through the cable entry hole in the side (or top) of the housing. Route the wires through the top
or side of the housing and around the camera bracket.

Note: Keep service loops out of housing area when possible.

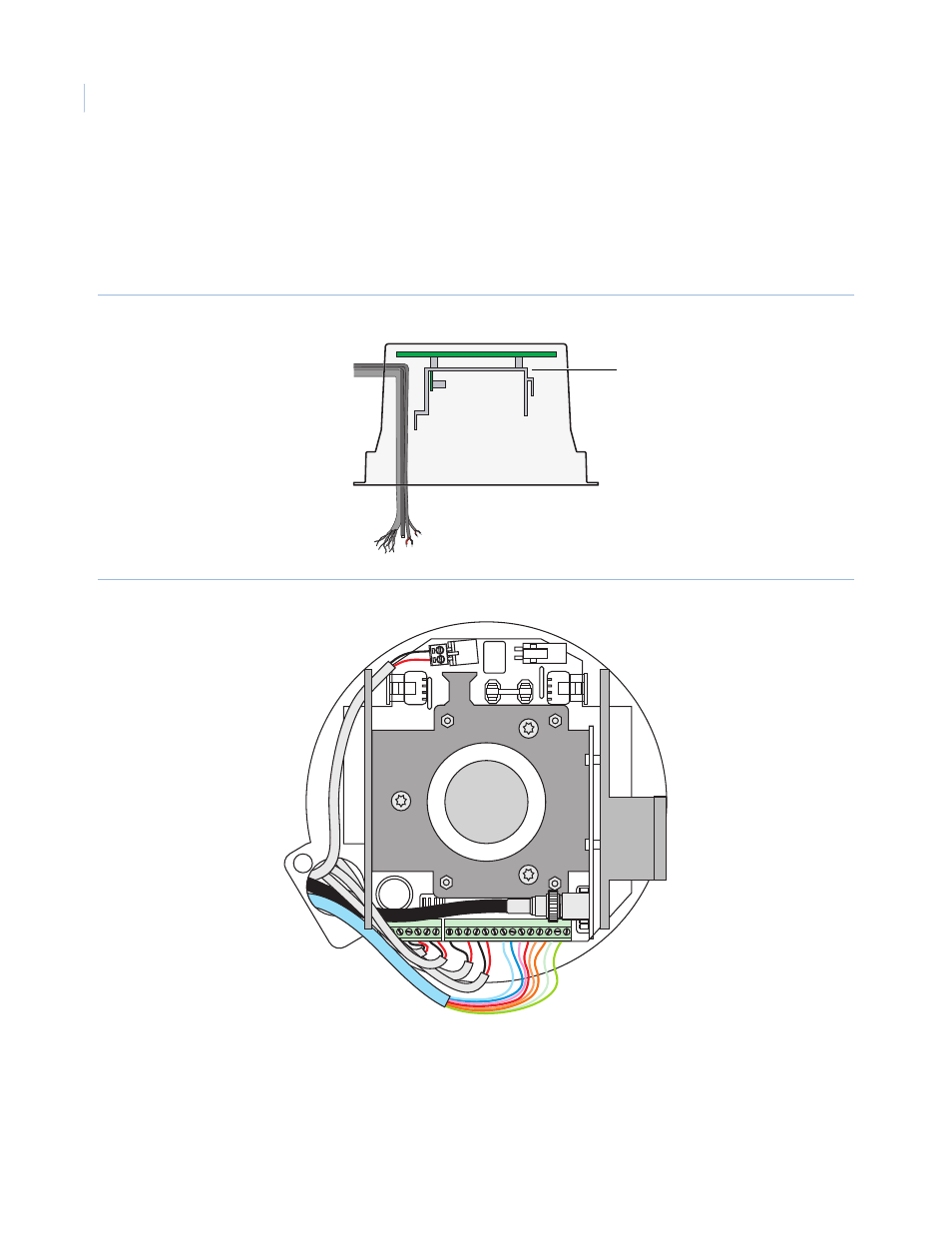

Figure 9. Side view of flush-mount cabling

Figure 10. Top view of flush-mount cabling

Upper bracket
