Speed Dome Camera Instruction Manual 33/57

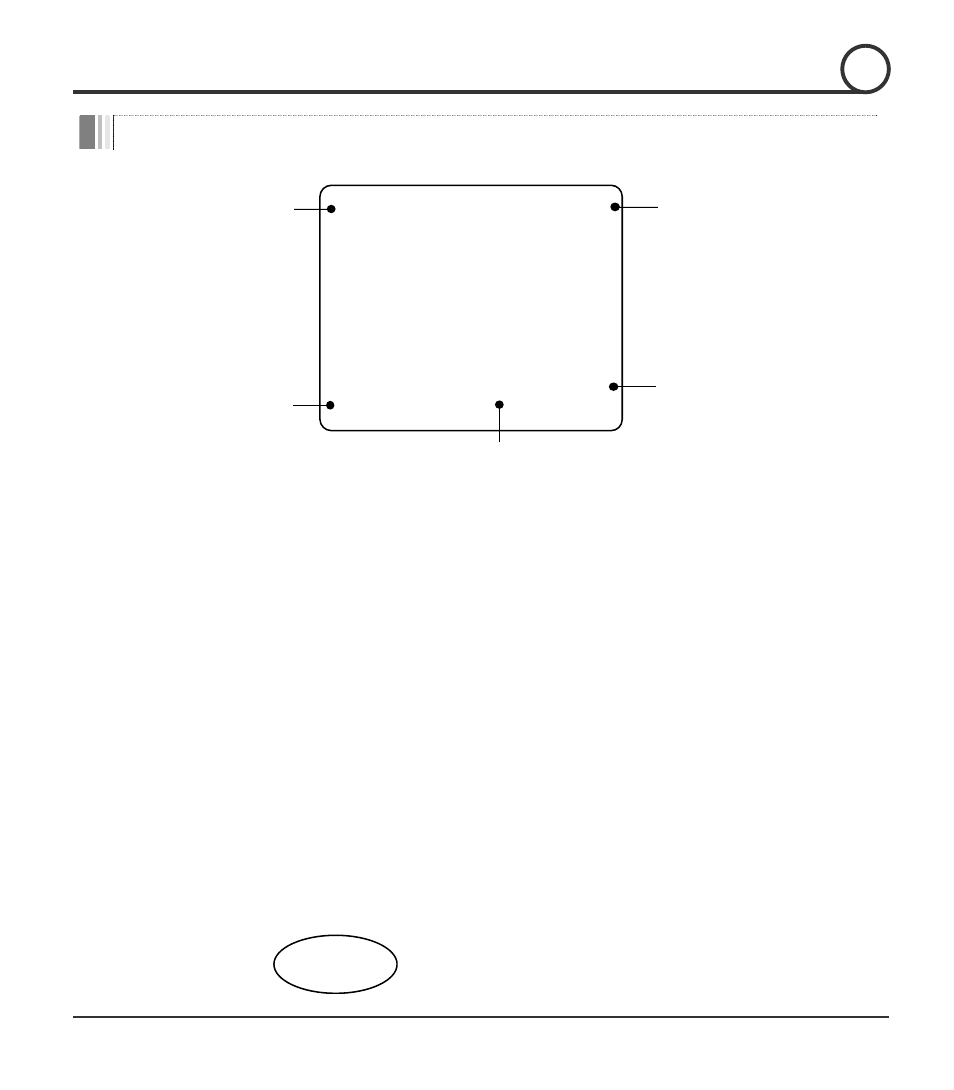

OSD Display
P/T/Z Information
Camera ID
Alarm Information
Action Title Preset Label
LABEL12345 PRESET1
I:-2- O:1
CAM 1 15/4/x1/N
z P/T/Z Information Displays the amount of pan from zero degree vertical, the amount of
tilt from zero degree horizontal and current compass direction. Also
identifies the amount of the zoom magnification.
z Camera ID Displays the selected Camera ID (Address).
Identfies Actions
"SET PRESET xxx"
When Preset xxx is memorized.
"PRESET xxx" When the camera reaches Preset xxx.
"PATTERN x" When Pattern x is in action.
"SWG×/PRESET xxx" When Swing x is in action. Displays both of Swing
number and Preset number.
z Action Title
"UNDEFINED" When a undefined function is called to run
z Preset Label Displays preset labels when the camera arrives at presets.
z Alarm Information Displays activated alarms. This information shows current state of
Alarm Inputs and Relay Outputs. If an Input point is ON state, it will
show a number corresponding to each point. If an Input point is OFF
state, '-' will be displayed.
Example) The point 2 & 3 of inputs are ON and Output is ON, OSD will
show as below.
I:-23 O:1
OPERATION
3
