Preset

z

Function

MAX. 127 positions are programmable. The Preset number can be

assigned from 1 to 128 except 95. Preset 95 is reserved for entering

into OSD menu. Camera parameters such as White Balance, Auto

Exposure and others can be set up independently and each preset

can have its own parameter values independently from the other

persets. When setting up presets with a controller, Label should be

blank and "Camera Adjust" should be set to "GLOBAL" as the default.

To change the parameters, enter into OSD menu.

z

Setting Presets

Set Preset [1~128]

z

Running Presets

Go Preset [1~128]

z

Deleting Presets

To delete Presets, enter into OSD menu.

Swing

z

Function

This function is that the camera moves repetitively between two

preset positions at programmed speeds. When a swing function runs,

the camera moves from the preset assigned as the 1st point to the

preset assigned as the 2nd point in CW(Clockwise) direction. Then

the camera moves from the preset assigned as the 2nd point to the

preset assigned as the 1st point in CCW(Counterclockwise)

direction.







In case that the preset assigned as the 1st point and the preset

assigned as the 2nd point are same, the camera turns on its axis by

360° in CW(Clockwise) direction and then it turns back on its axis by

360° in CCW(Counterclockwise) direction. The Swing speed is

defined from 1°/sec to 180°/sec.

z

Setting Swings

To set Swing, enter into OSD menu.

z

Running Swings

Method 1) [Swing NO. + 10]
Method 2) [Swing NO. + 140]

ex) Run Swing 3 : [13]
ex) Run Swing 3 : [143]

z

Deleting Swings

To delete Swings, enter into OSD menu.

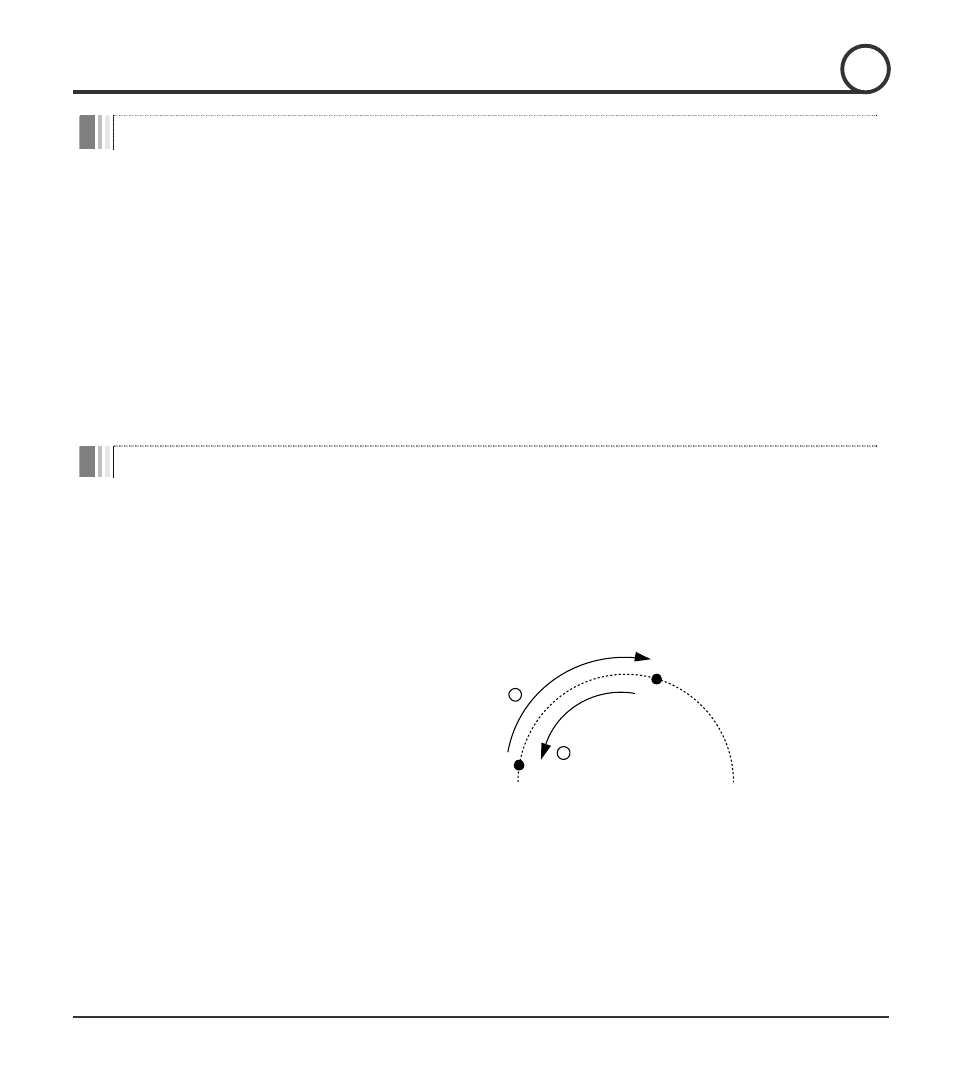

1st Preset

2nd Preset

1

CW

Di

rec

tio

n

2

CC

W

Dir

ec

tio

n

OPERATION

3
