Speed Dome Camera Instruction Manual 23/57

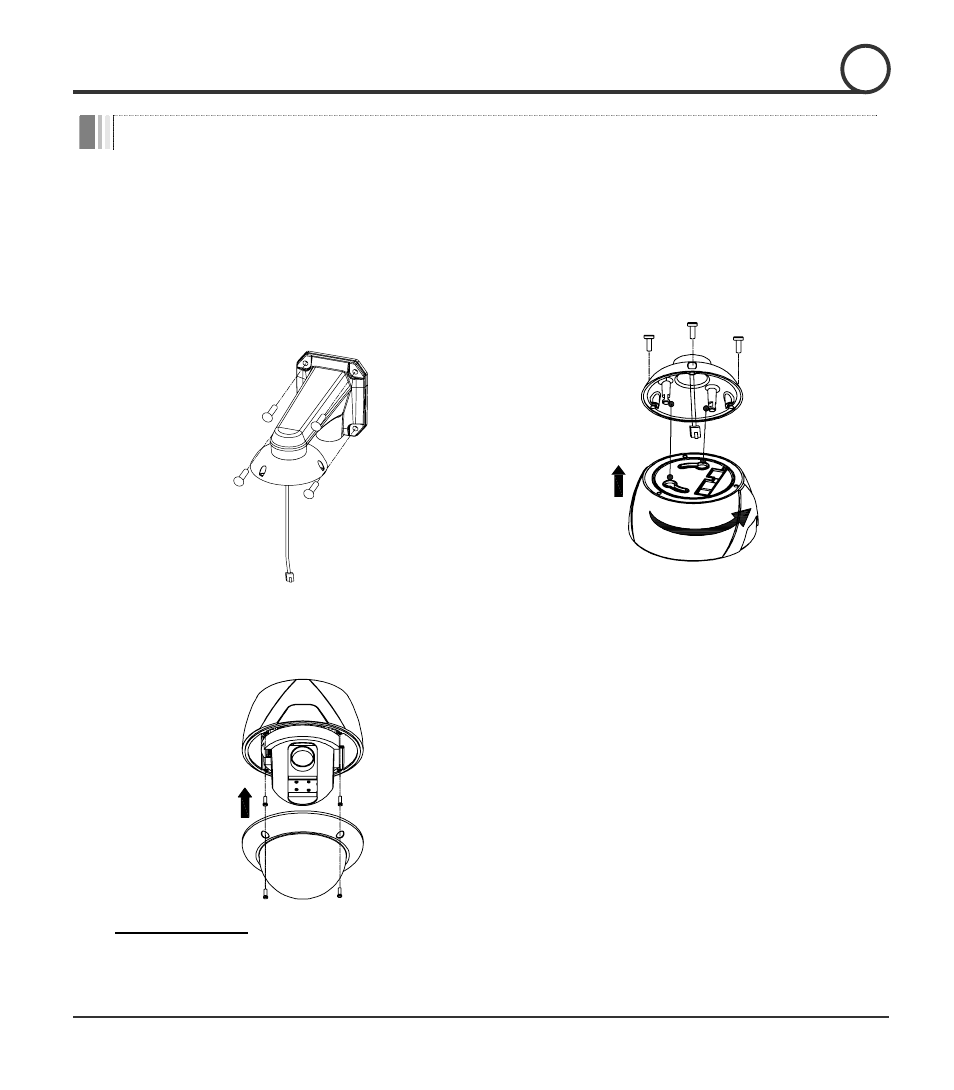

Installation with Wall Mount Bracket
① Make a hole whose diameter is 30~40mm
on the mounting surface to pass the
wire(s) and cable(s) through the mounting
surface. (In case of the wiring and cabling
through the mounting surface only) Then
prepare the wall mount bracket. Pull the
wire(s) and cable(s) for the system as
below. Attach the wall mount bracket to
the mounting surface. (Hex Lag #14×50)
② Pull the wire(s) and cable(s) for the
system as below. Wire the cable(s) to the
ports. Insert the mounting hooks into the
holes on the surface of the main body and
turn the main body. Assemble the main
both with the camera mount adaptor with
the 3 screws. (Machine M5×15)
③ Screw the dome cover to the main body
and remove the protection vinyl from the
dome cover.
Important Notice
z
Before starting the installation, make sure that the Camera ID and Protocol are set up properly.
INSTALLATION
2
