Offset mounting – IC Realtime The Sentinal WDR 36x Optical Zoom, 32x Digital Zoom IR PTZ Camera User Manual
Page 9

9

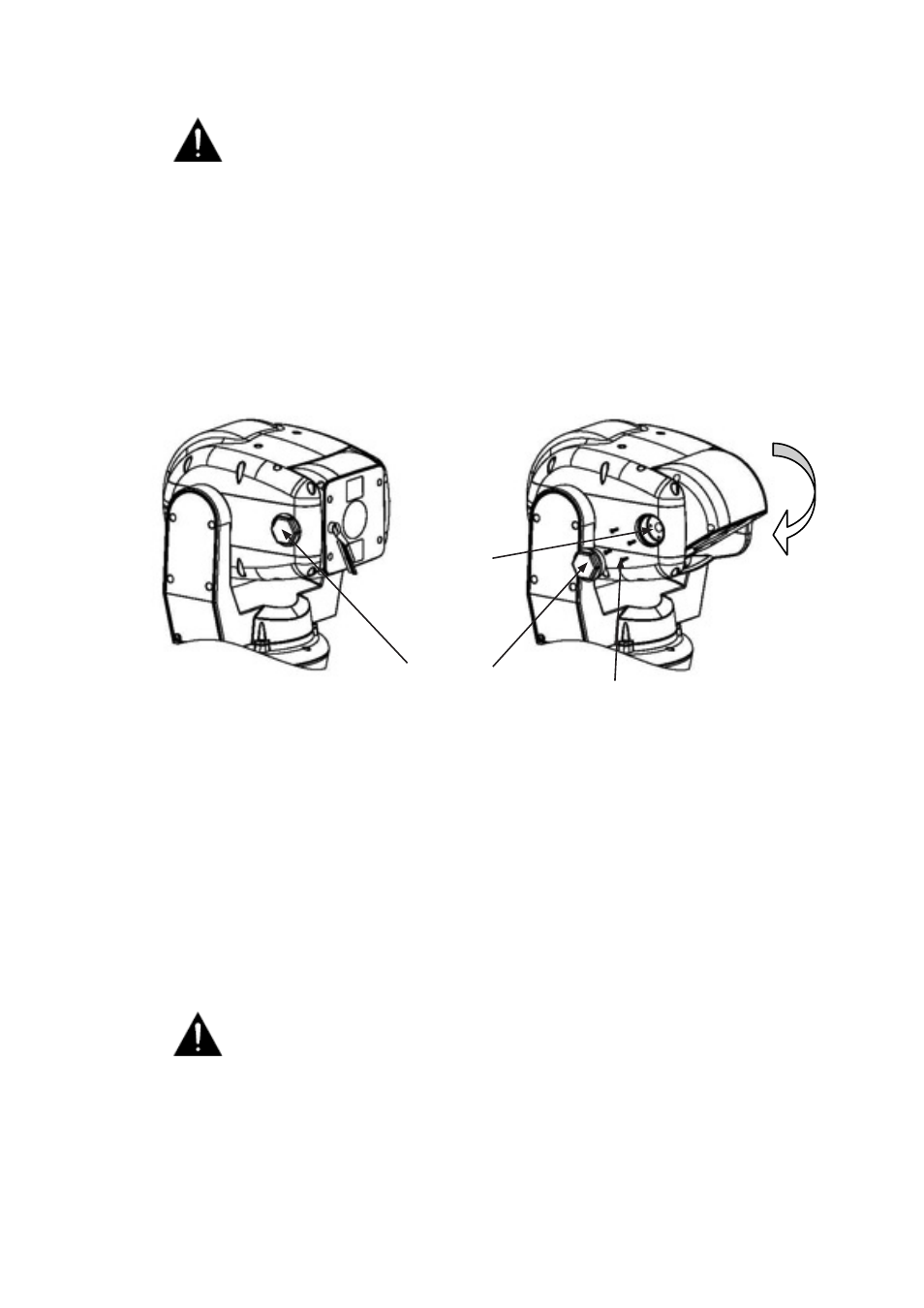

• Offset Mounting
When an installation requires the camera module to be tilted down – to obtain an angle of view
immediately below Robo PTZ – the following procedure
MUST be followed. We recommend using a local
test monitor to check the viewing angle before finally fixing the module into position.
Undo the Hex Bolt, using a 36mm Spanner, when the camera is in 0° Tilt.
Then, using a screwdriver, undo the 4 x M3 Retaining Screws.
Completely remove the silver Master Keylock Cog – failure to do so will result in irreparable
damage to the camera head.
After tilting down the camera module to the required angle, replace the Master Keylock Cog (this is
keyed and only can be located in a unique position), the M3 Retaining Screws and the Hex Bolt. The
Torque setting for the Hex Bolt is 0.84Kg/m.
A Safety Wire, made from stainless steel, is provided for securing the Robo PTZ
during installation and maintenance visits; to prevent damage and injury.
During installation and maintenance visits, please make sure the Safety Wire is
firmly connected to a secure fixing.
DO NOT excessively tighten the Retaining Screws or Hex Bolt.
Master
Keylock
Hex Bolt
Retaining M3 Screw
Tilt 90°
