IC Realtime The Sentinal WDR 36x Optical Zoom, 32x Digital Zoom IR PTZ Camera User Manual
Page 43
43
MENU Shift: UP, DOWN
MENU Open: IRIS OPEN KEY
MENU Close: IRIS CLOSE KEY
•
POWER ON RESET
The unit is initialised.
•
PAN/TILT INIT
1. PAN/TILT MENU is initialised.
2. PAN/TILT location is initialised.
•
CAMERA INIT
Only the CAMERA setting menu is initialised.
•
AUTO SEQ INIT
1. Only the AUTO SEQ menu is initialised.
2. PRESET information and PATTERN memory are not initialised.
•
PRIVACY ZONE INIT
PRIVACY ZONE is initialised.
•
FACTORY INIT
All Menu set ups are reset to factory defaults.

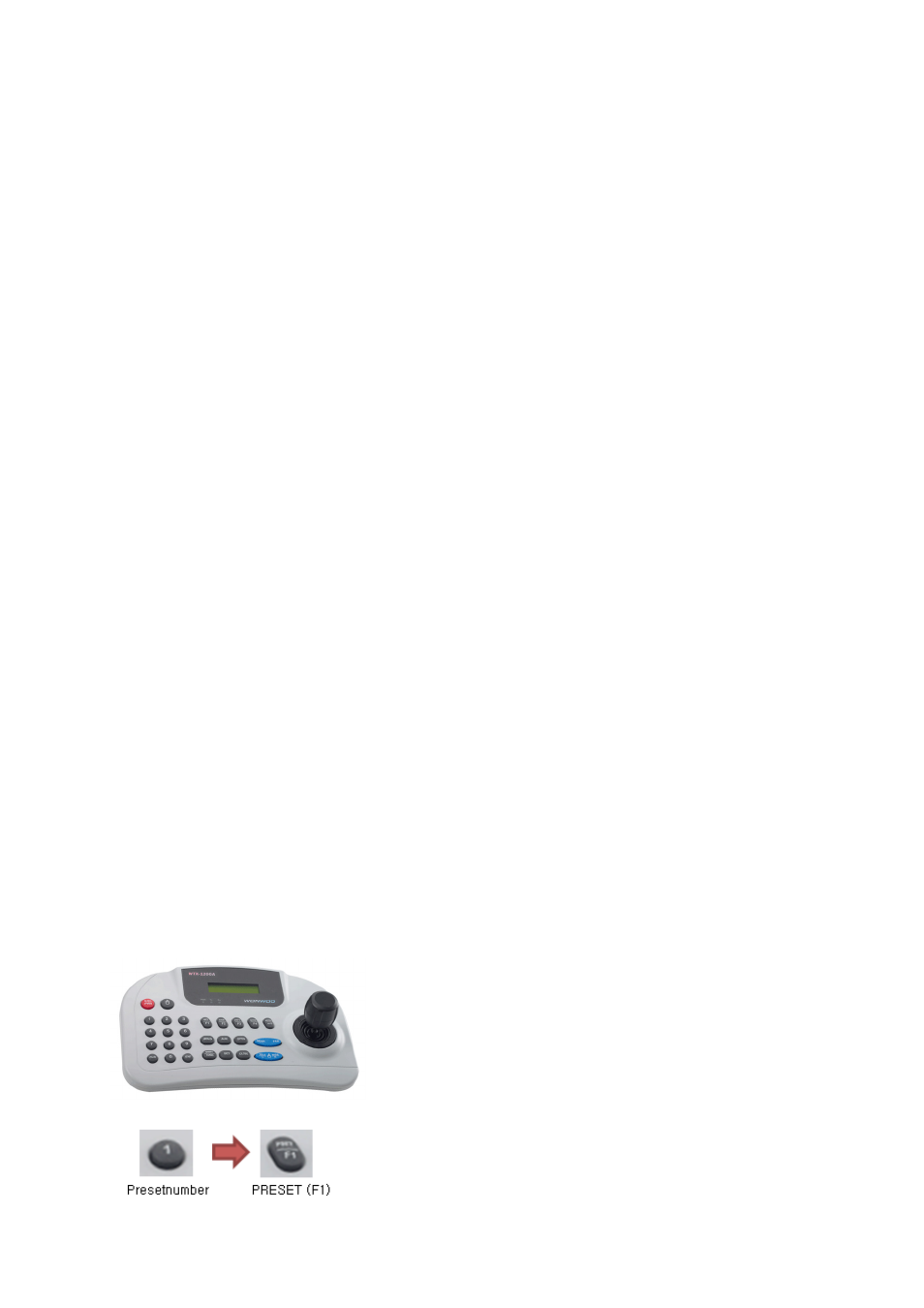

WTX-1200A – Simple PRESET Setting
The following keyboard controller can be used for camera commands when the OSD MENU is not
activated.
How to set up a PRESET
