16

z

When the activation mode is NC (normal close), dome alarms
when there is high voltage. Low voltage will not activate the
alarm.

Note:
z

Dome alarm input message is ground mode.

z

Dome alarm input signal are two modes: normal open and

normal close.


3.2.1 System

Layout

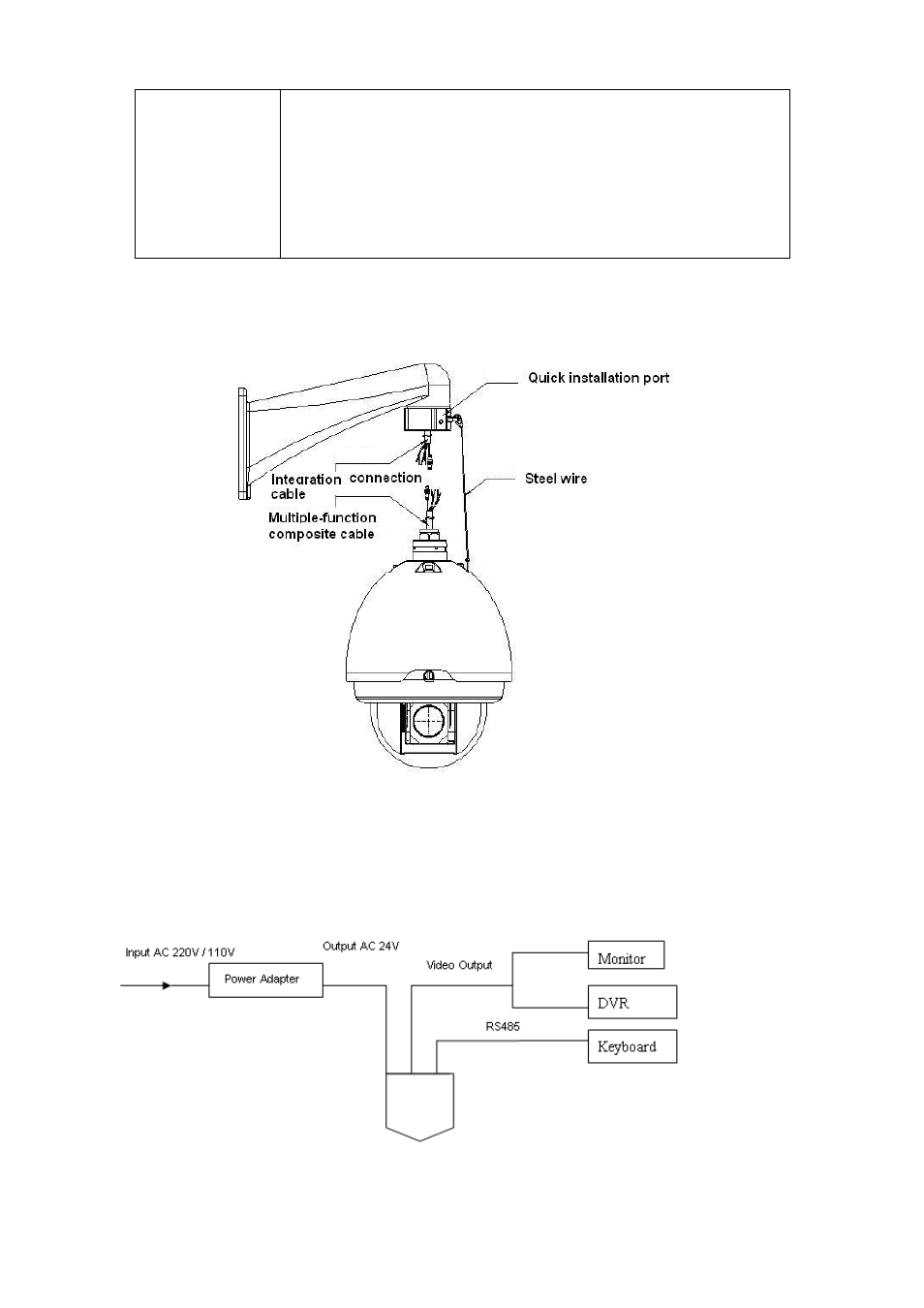

The system installation layout is shown as below. See

Figure 3-1

.

Figure 3-1


3.2.1.1 BUS connection

Please refer to Figure 3-2 and Figure 3-3 for BUS cable connection.

Figure 3-2
