13

2 Protocol, Baud Rate, Address setup

Before you operate, you need to set protocol, baud rate and address. Otherwise you can

not control the product!

2.1 Protocol and Baud Rate Setup

Please configure the following settings before begin controlling dome:
z

Protocol

z

Baud

rate

z

Address

Note: Please reboot the speed dome to get all the setups activated!

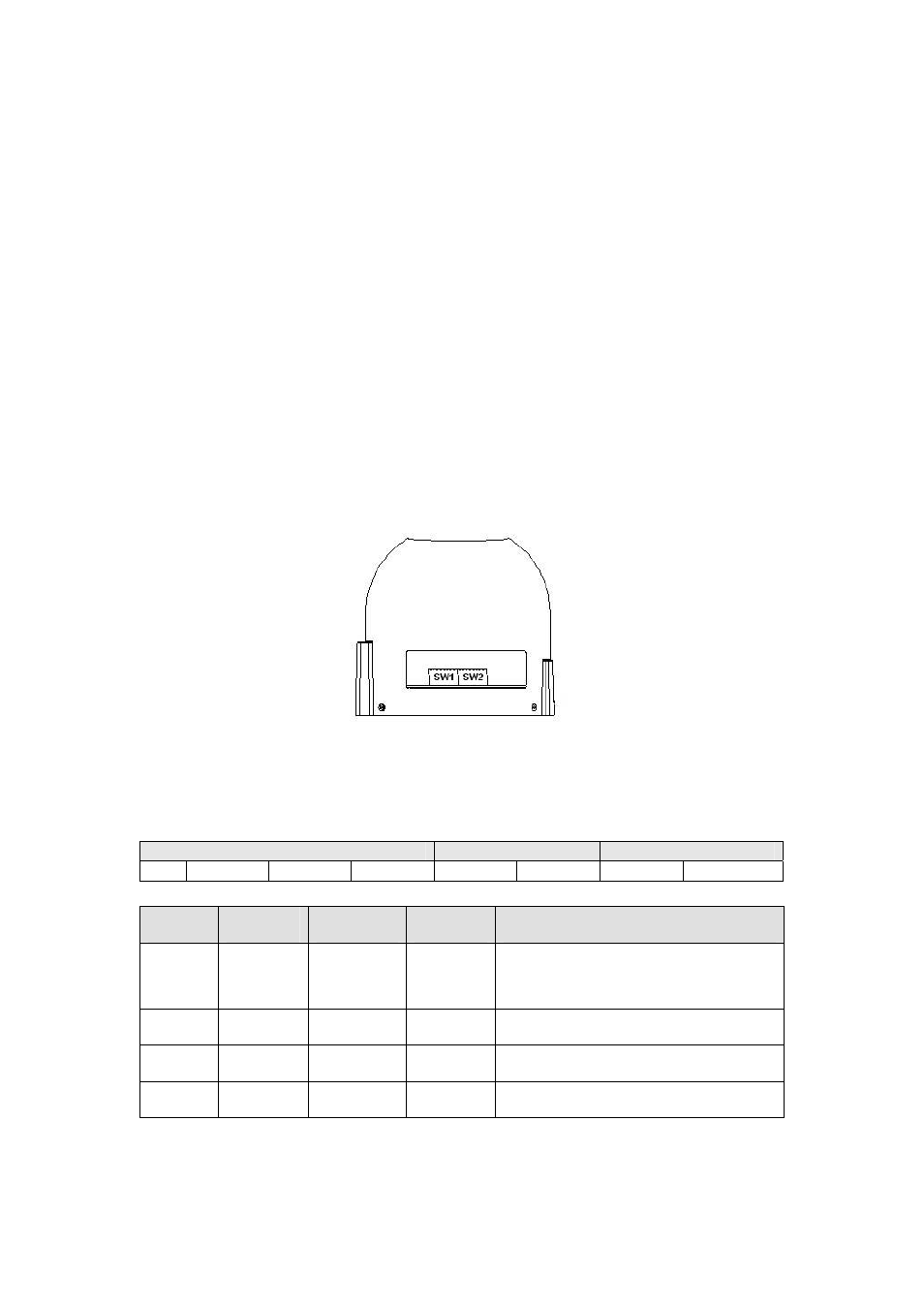

Open the lower dome, the interface is shown as below. See Figure 2-1.
The two dial switches of the quick installation speed dome are SW1 and SW2. These are to
specify the speed dome parameter such as protocol, baud rate, address and etc. When the
button is ON, it is 1. In the SW1 and SW2, 1 is the lowest bit and the 8 is the highest bit.

Please note this series speed dome cans automatically recognize the DH-SD, PELCO-D.

PELCO-P. usually you do not need to set the protocol.

Figure 2-1

Please refer to the protocol sheets for detailed information.

Protocol

Baud rate

Parity

1

2 3 4 5 6 7 8

1

2

3

4

Communication Protocol

OFF OFF OFF

OFF

DH-SD ( Compatible with China

industrial standard protocol)

ON OFF OFF OFF PELCO-D

OFF ON

OFF

OFF PELCO-P

X X X

X Reserved

Please refer to the baud rate sheet for detailed information.
