74

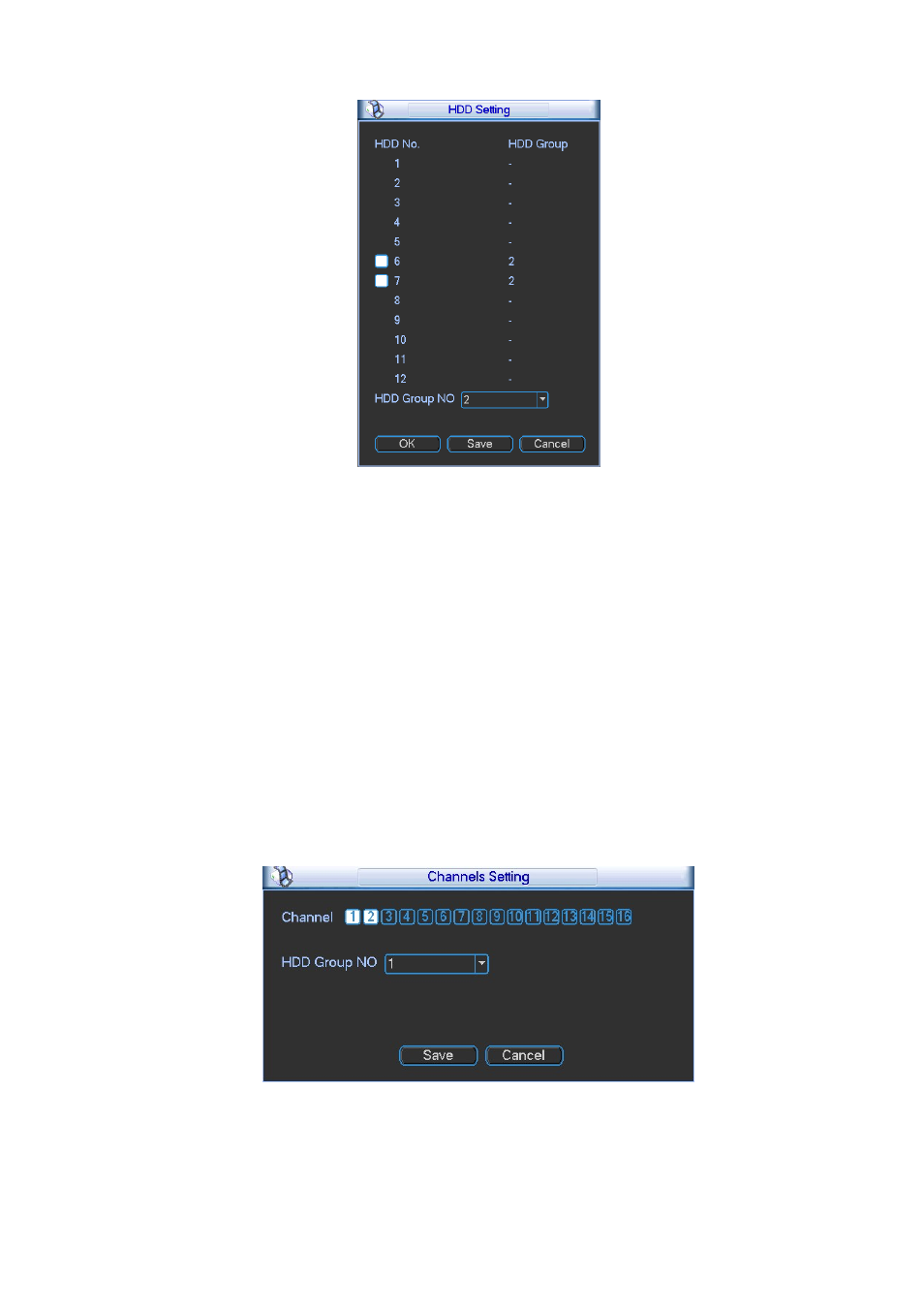

Figure 6-80
Channels Setting
Click the button named with “Channels Settings” at the top right corner of the Figure 6-77, system
will pop up an interface shown as in Figure 6-81.
When you are setting the configurations of the channels setting, please select relevant channels
first (such as channel 1 to 16), and then select the HDD Group NO. Please click the Save button
to save current setup.
The Figure 6-81 and Figure 6-82 show that channels 1 to 16 are associated to HDD Group NO 1,
and channels 17 to 32 are associated to HDD Group NO 2. Therefore the records of channels 1 to
16 are stored into the hard disk(s) which belong to HDD Group NO 1, and the records of channels
17 to 32 are stored into the hard disk(s) which belong to HDD Group NO 2.
Important
Once you change the HDD Group settings, system will pack the records and snapshots, and then
reboot.
Figure 6-81
