IC Realtime 4/8/16/32 Channel 2U Network Video Recorder User Manual
Page 78
69

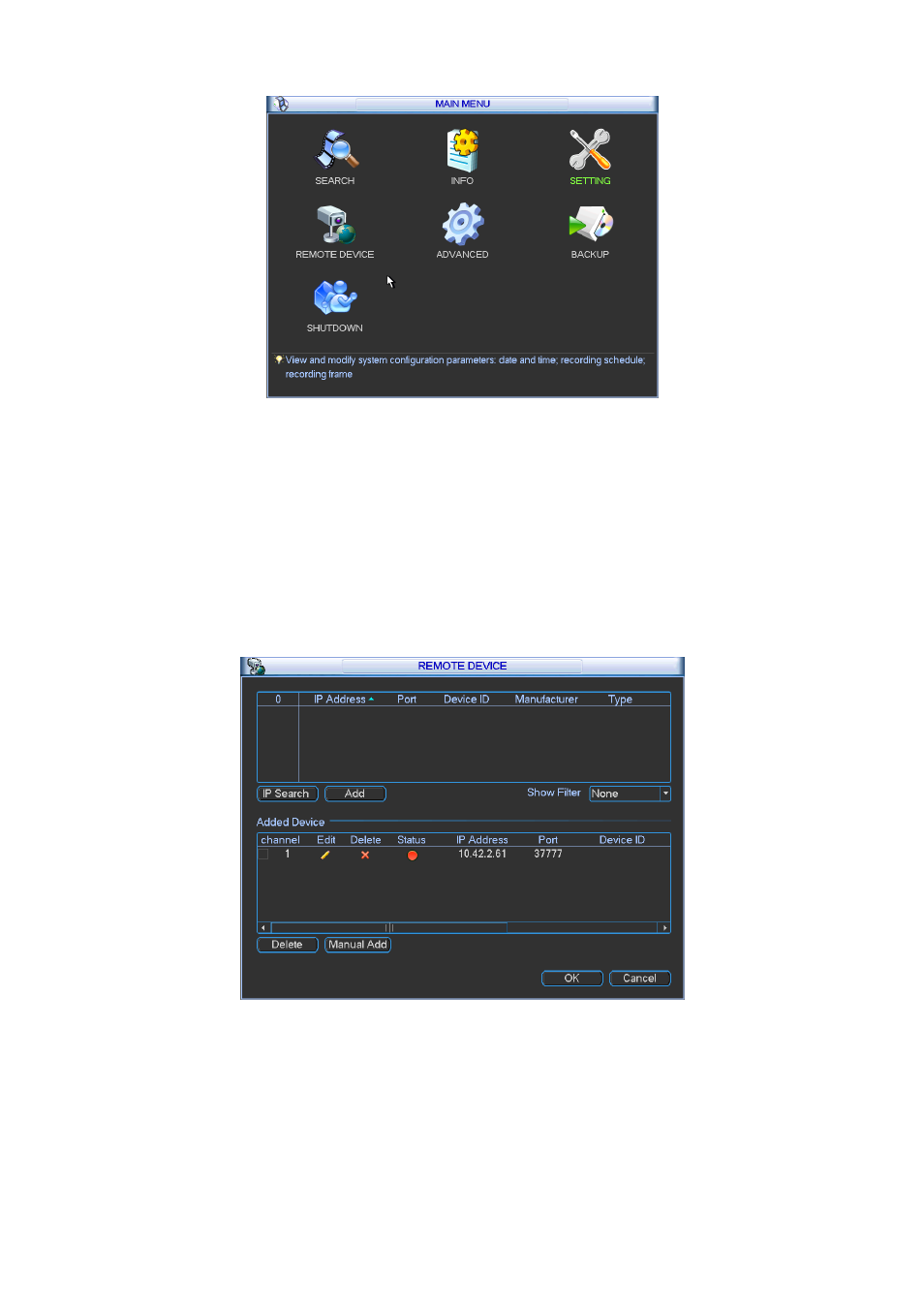

Figure 6-71
The remote device interface is shown as in Figure 6-72.
z
IP search: Click it to search IP address.
z
Add: Click it to connect to the selected device and add it to the Added device list. Support
Batch add.
z
Show filter: You can use it to display the specified devices from the added device.
z
Delete: Please select one device in the Added device list and then click it to remove.
z
Manual add: Click it to add the IPC manually. The port number is 37777. The default user
name is admin and password is admin.
Figure 6-72
Click the Manual Add button; you can go to the following interface. See Figure 6-73.
This series product max supports 16-channel standard definition video/high definition
non-real-time video and the transmission rate is 1mbps per channel. It can also max supports
4-channel high definition video and the transmission rate is 8mbps. The delay time of each
channel is below 500ms.
