14

Port Name

Connection Function

VIDEO OUT

Video input
port

CVBS

output

MIC IN

Audio input
port

Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as mike phone, pickup.

MIC OUT

Audio output
port

Audio output port. It is to output the analog
audio signal to the devices such as the sound
box.

2.2.2 NVR6XXV

Series

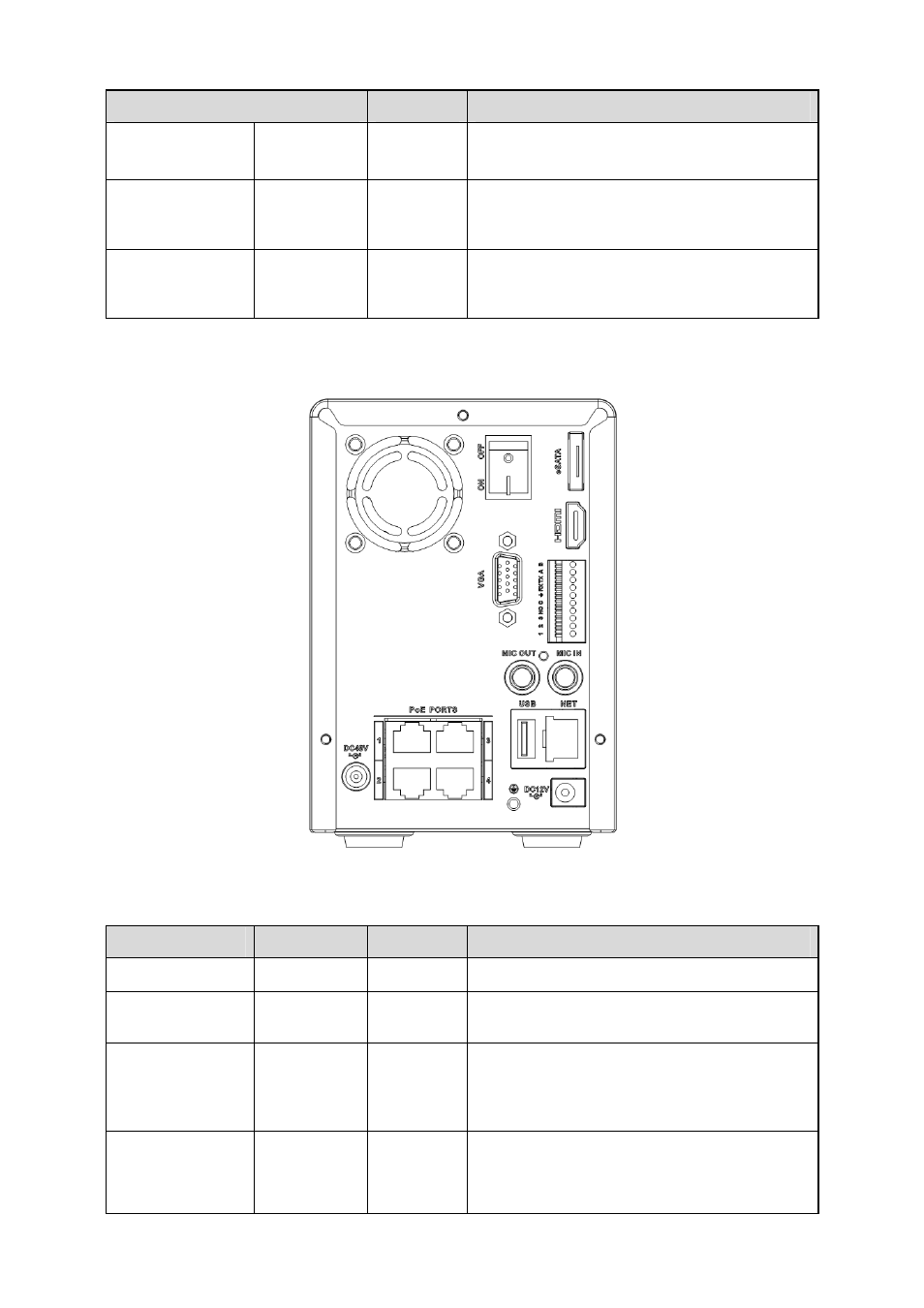

The rear panel is shown as below. See Figure 2-5.

Figure 2-5

Please refer to the following sheet for detailed information.

Port Name

Connection Function

USB

USB port.

Connect to USB mouse.

NET

Network port

10M/100M/1000M self-adaptive Ethernet port.
Connect to the network cable.

HDMI High

Definition
Media
Interface

High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI
port of the display device.

VGA

VGA video
output port

VGA

VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
