IC Realtime 4/8 H.264E HD SDI High Definition DVR User Manual
Page 92
82
There are three statuses: schedule/manual/stop. Please highlight icon“○” to select
corresponding channel.
z
Manual: The highest priority. After manual setup, all selected channels will begin ordinary
recording.
z
Schedule: Channel records as you have set in recording setup (Main Menu->Setting-
>Schedule)
z
Stop: All channels stop recording.

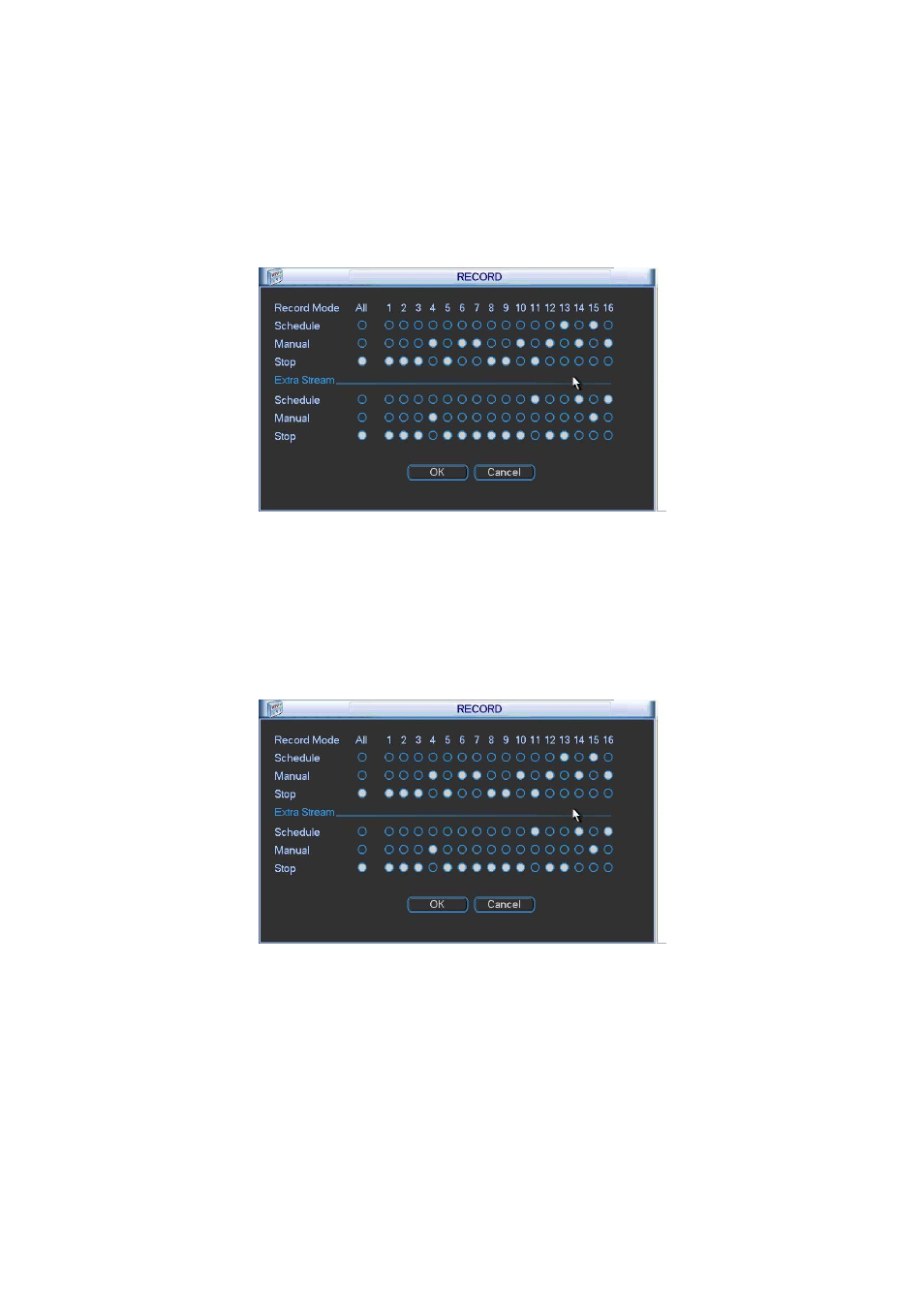

Figure 4-7
4.3.3 Enable/disable record
Please check current channel status: “○” means it is not in recording status, “●” means it is in
recording status.
You can use mouse or direction key to highlight channel number. See Figure 4-8.
Figure 4-8
4.3.4 Enable all channel recording
Highlight ○ below All, you can enable all channel recording.
z
All channel schedule record
Please highlight “ALL” after “Schedule”. See Figure 4-9.
When system is in schedule recording, all channels will record as you have previously set
(Main menu->Setting->Schedule).
The corresponding indication light in front panel will turn on.
