42
2.2 Rear Panel
2.2.1 1U series

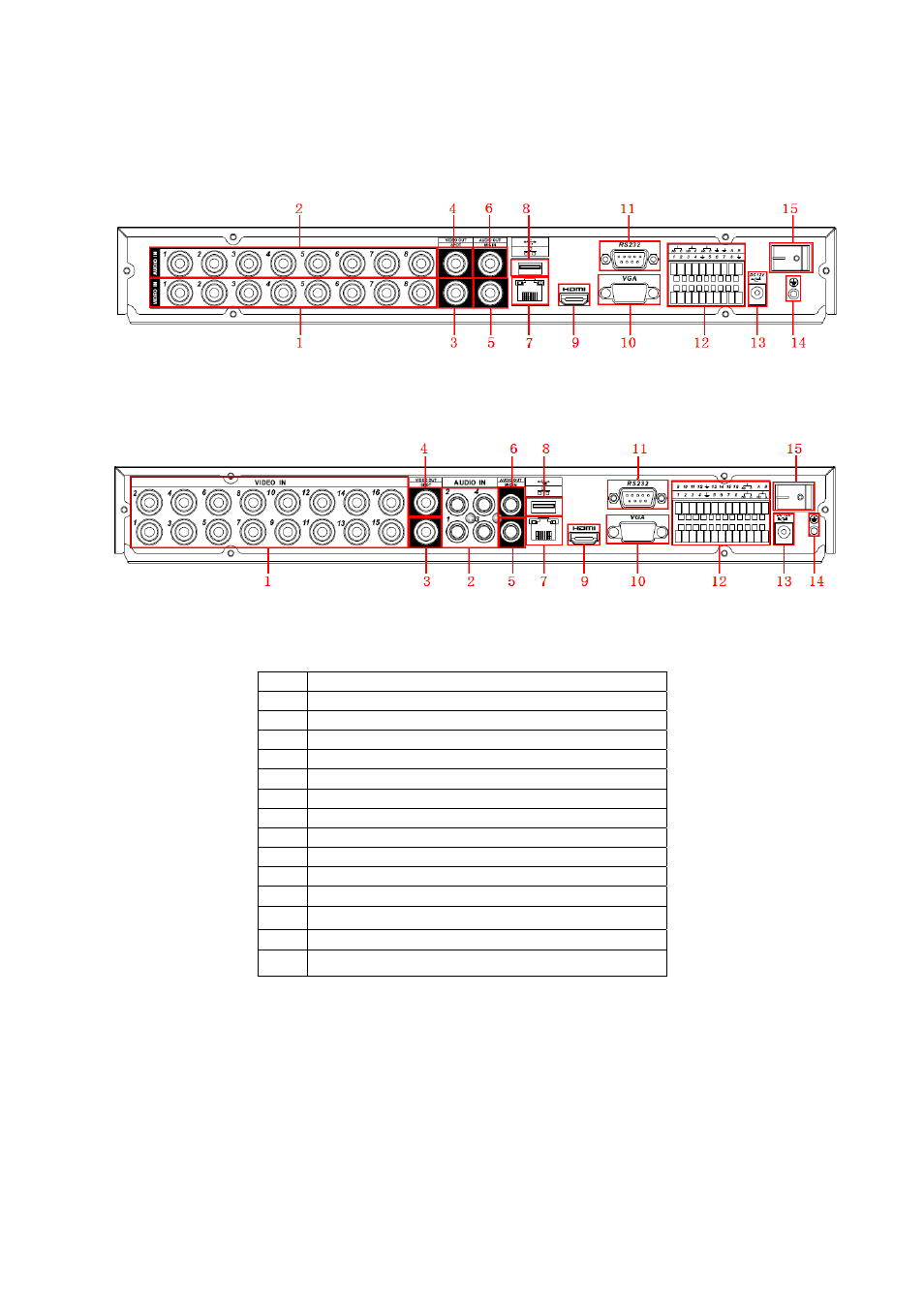

The 4/8-channel series DVR rear panel is shown as below. See Figure 2-4.
Figure 2-4
The 16-channel series DVR rear panel is shown as below. See Figure 2-5.
Figure 2-5
Please refer to the following sheet for detailed information.
1 Video input
2 Audio input
3 Video spot output
4 Video CVBS output
5 Bidirectional talk input
6 Audio output
7 Network port
8 USB port
9 HDMI port
10 Video VGA output
11 RS232 port
12 Alarm input/alarm output/RS485 port
13 Power socket
14 GND port
15 On/off button
2.2.2 960H 1U Series
The 8-channel series DVR rear panel is shown as below. See Figure 2-6.
