IC Realtime 4/8 H.264E HD SDI High Definition DVR User Manual
Page 125
115

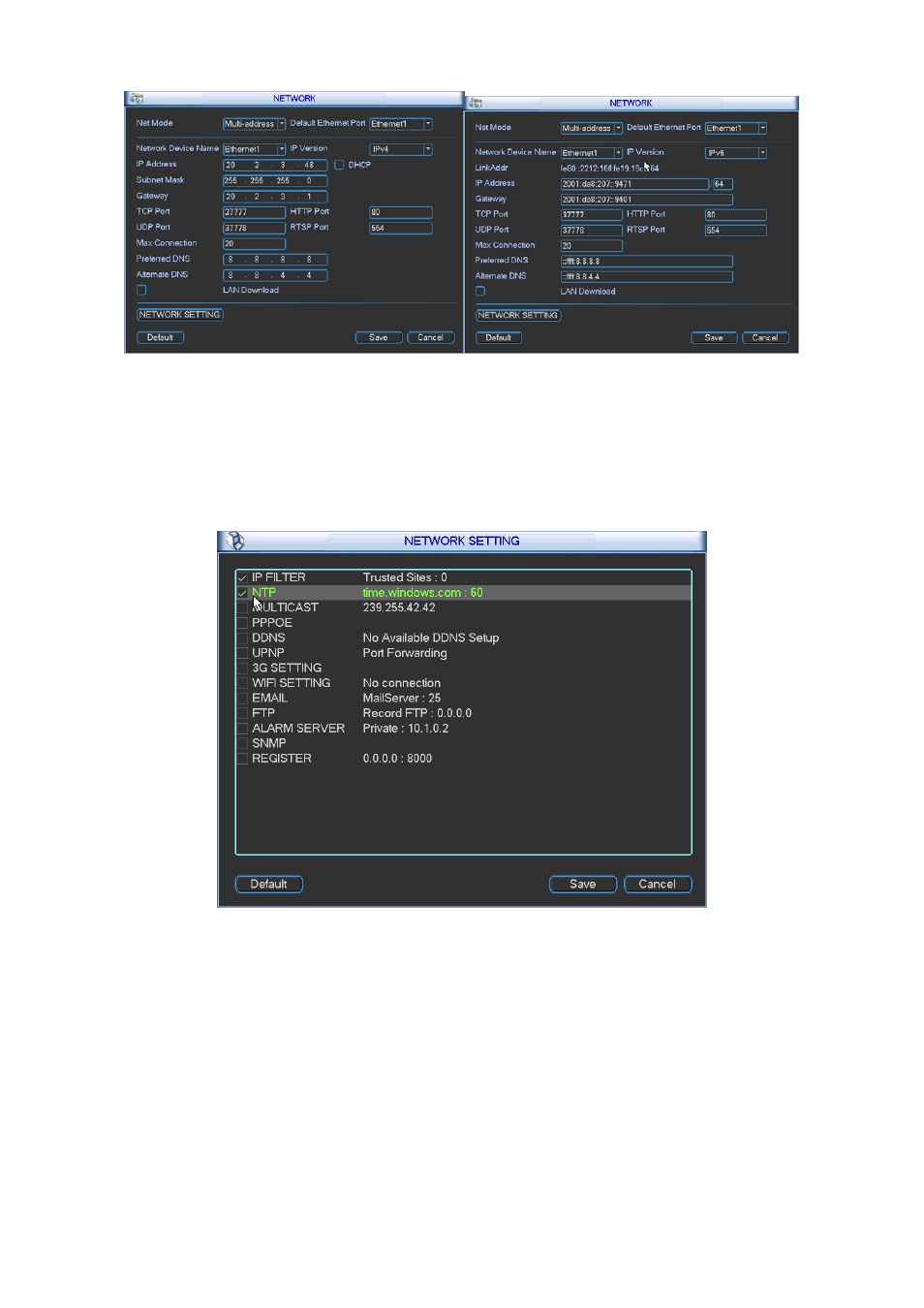

Figure 5-12
5.3.5.1 Network Setting
Network setting interface is shown as in Figure 5-13. Please check the box to enable
corresponding function and then double click current item to go to setup interface.
Figure 5-13
5.3.5.2 IP Filter
IP filter interface is shown as in Figure 5-14 (IPv4) and Figure 5-15 (IPv6). You can add IP in the
following list. The list supports max 64 IP addresses.
Please note after you enabled this function, only the IP listed below can access current DVR.
If you disable this function, all IP addresses can access current DVR.
The system supports IPv4 and IPv6 address format.
Please note:
z
If you input the IPv6 address format, system needs to check its validity and optimize its
format. For example, it can optimize IP:”fe80::0054:0cff:fefa:1682” to ”fe80::54:cff:fefa:1682”.
