11 other interfaces – IC Realtime 4/8 H.264E HD SDI High Definition DVR User Manual
Page 86
76
Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This
series DVRs support multiple protocols such as Pelco-D, Pelco-P.
To connect PTZ devices to the DVR:
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.
3.11 Other Interfaces

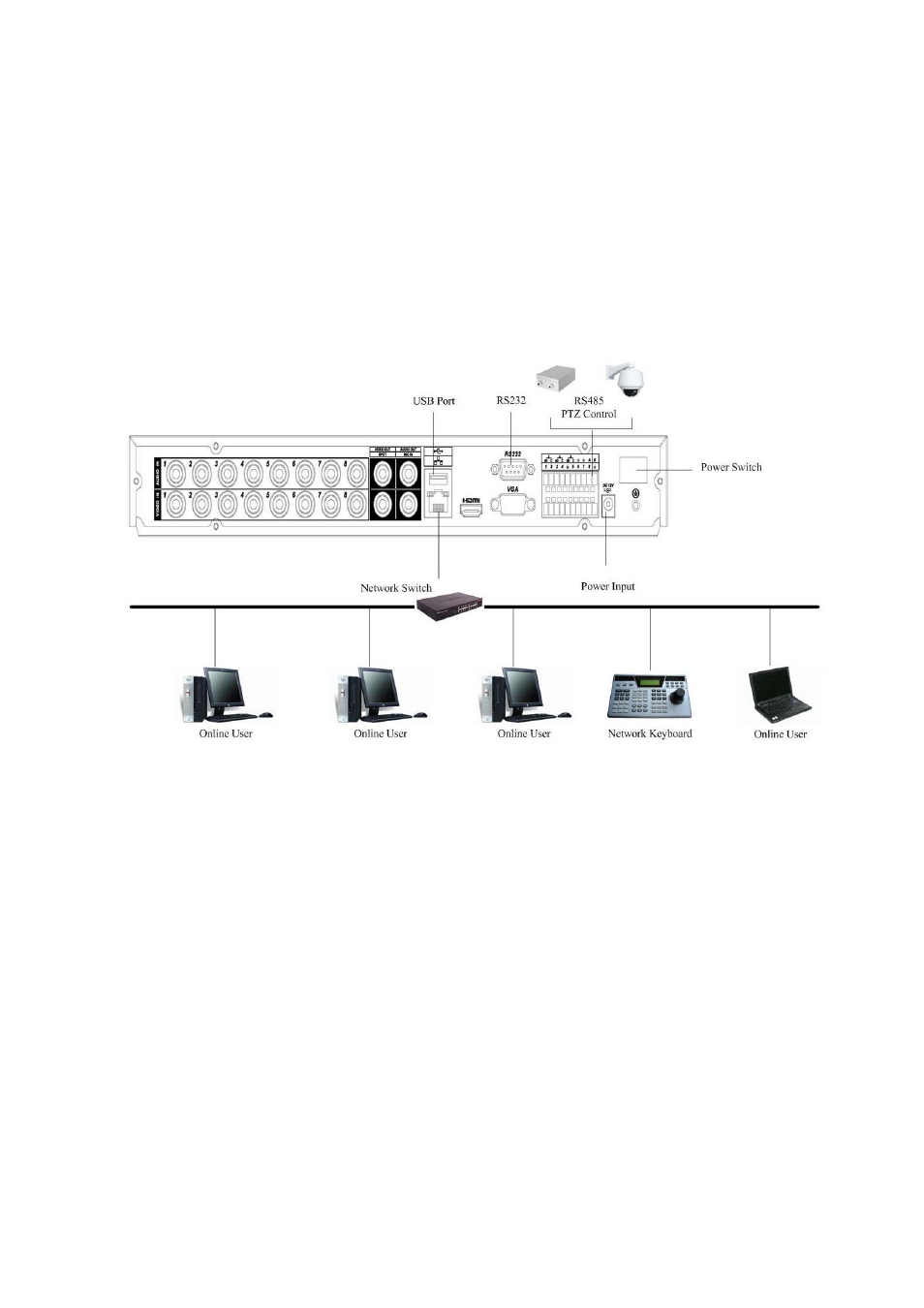

There are still other interfaces on the DVR, such as USB ports. You can refer to the Figure 3-12 for
more information.
1U series
