73

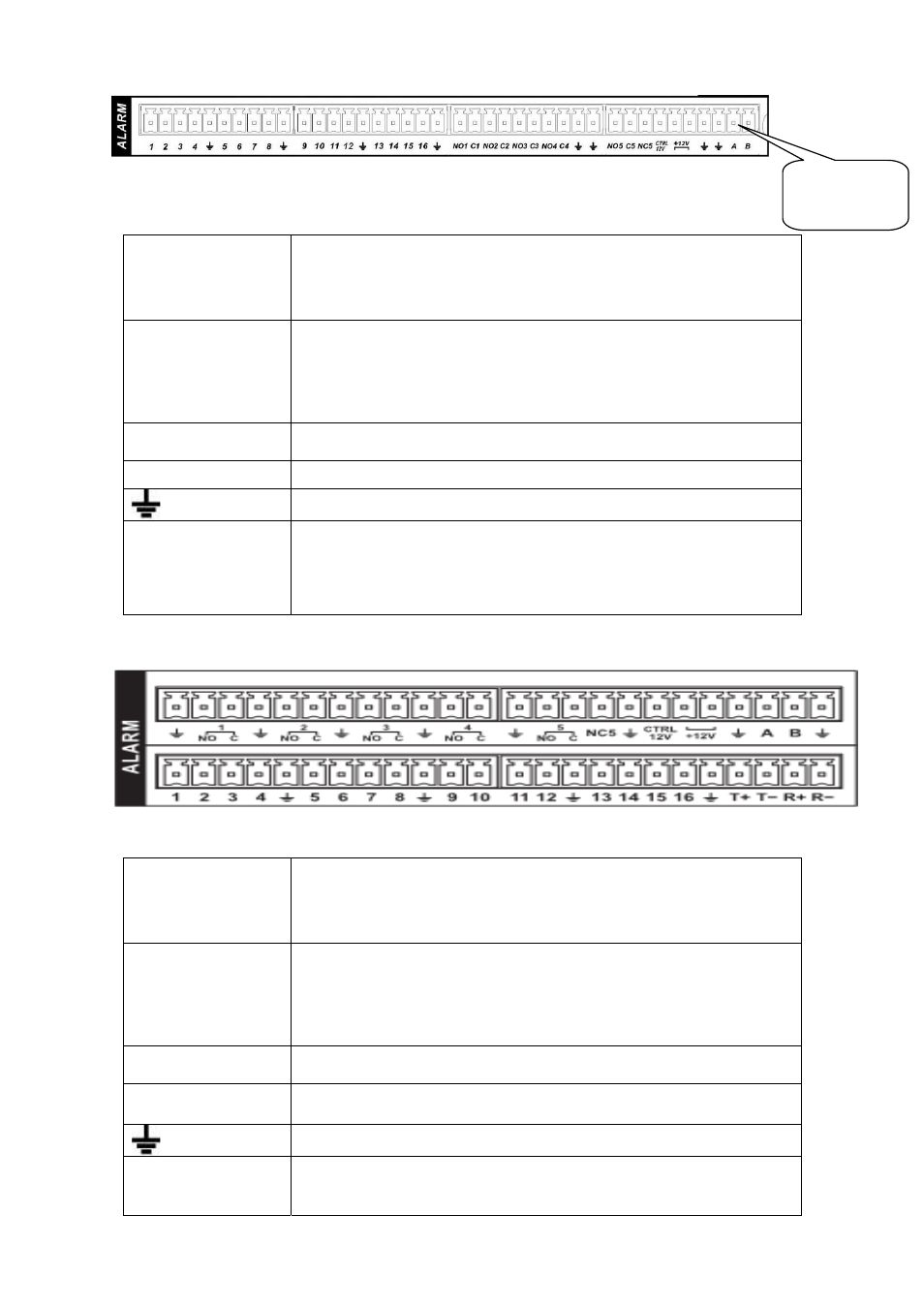

Figure 3-8
You can refer to the following sheet for alarm input and output information.
1，2，3，4，5，
6，7，8，9，10，
11，12，13，14，
15，16 ALARM 1 to ALARM 16. The alarm becomes active in low voltage.
NO1 C1，
NO2 C2，
NO3 C3，
NO4 C4,
NO5 C5 NC5 The first four are four groups of normal open activation output
(on/off button)
NO5 C5 NC5 is a group of NO/NC activation output (on/off button)
CTRL 12V Control power output. The power output is off when the alarm is
canceled.
+12V It is rated power output.
Earth cable.
485 A/B 485 communication port. They are used to control devices such as
PTZ. Please parallel connect 120TΩ between A/B cables if there are
too many PTZ decoders.
3.8.1.8 HD-SDI 1080P 2U Series
HD-SDI 1080P 2U series interface is shown as below. See Figure 3-9.
Figure 3-9
You can refer to the following sheet for alarm input and output information.
1，2，3，4，5，
6，7，8，9，10，
11，12，13，14，
15，16 ALARM 1 to ALARM 16. The alarm becomes active in low voltage.
NO1 C1，
NO2 C2，
NO3 C3，
NO4 C4,
NO5 C5 NC5 The first four are four groups of normal open activation output
(on/off button)
NO5 C5 NC5 is a group of NO/NC activation output (on/off button)
CTRL 12V Control power output. The power output is off when the alarm is
canceled.
+12V It is rated power output.
Earth cable.
485 A/B 485 communication port. They are used to control devices such as
PTZ. Please parallel connect 120TΩ between A/B cables if there are
too many PTZ decoders.
AB cable
connection
