49
2.2.9 HD-SDI 1080P 2U Series

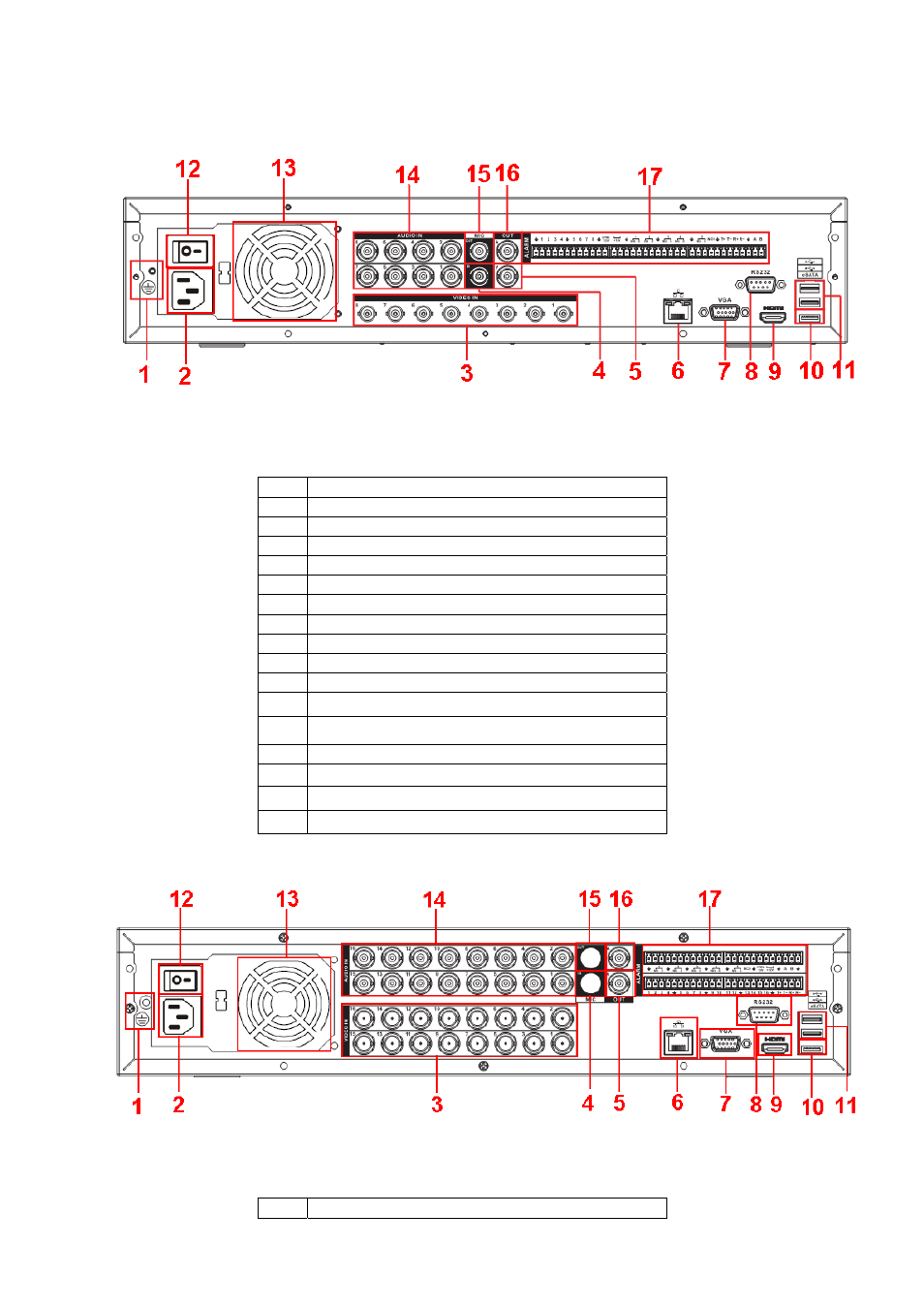

The rear panel 4/8-channel series product is shown as in Figure 2-15.
Figure 2-15
Please refer to the following sheet for detailed information.
1 GND port
2 Power input port
3 Video input
4 Bidirectional talk input port
5 Video output
6 Network port
7 Video VGA output
8 RS232 port
9 HDMI port
10 eSATA port
11 USB port
12 Power button
13 Fan
14 Audio input
15 Bidirectional talk output port
16 Audio output
17 Alarm input/Alarm output/RS485 port
The rear panel of the 16-channel series product is shown as in Figure 2-16.
Figure 2-16
Please refer to the following sheet for detailed information.
1 GND port
