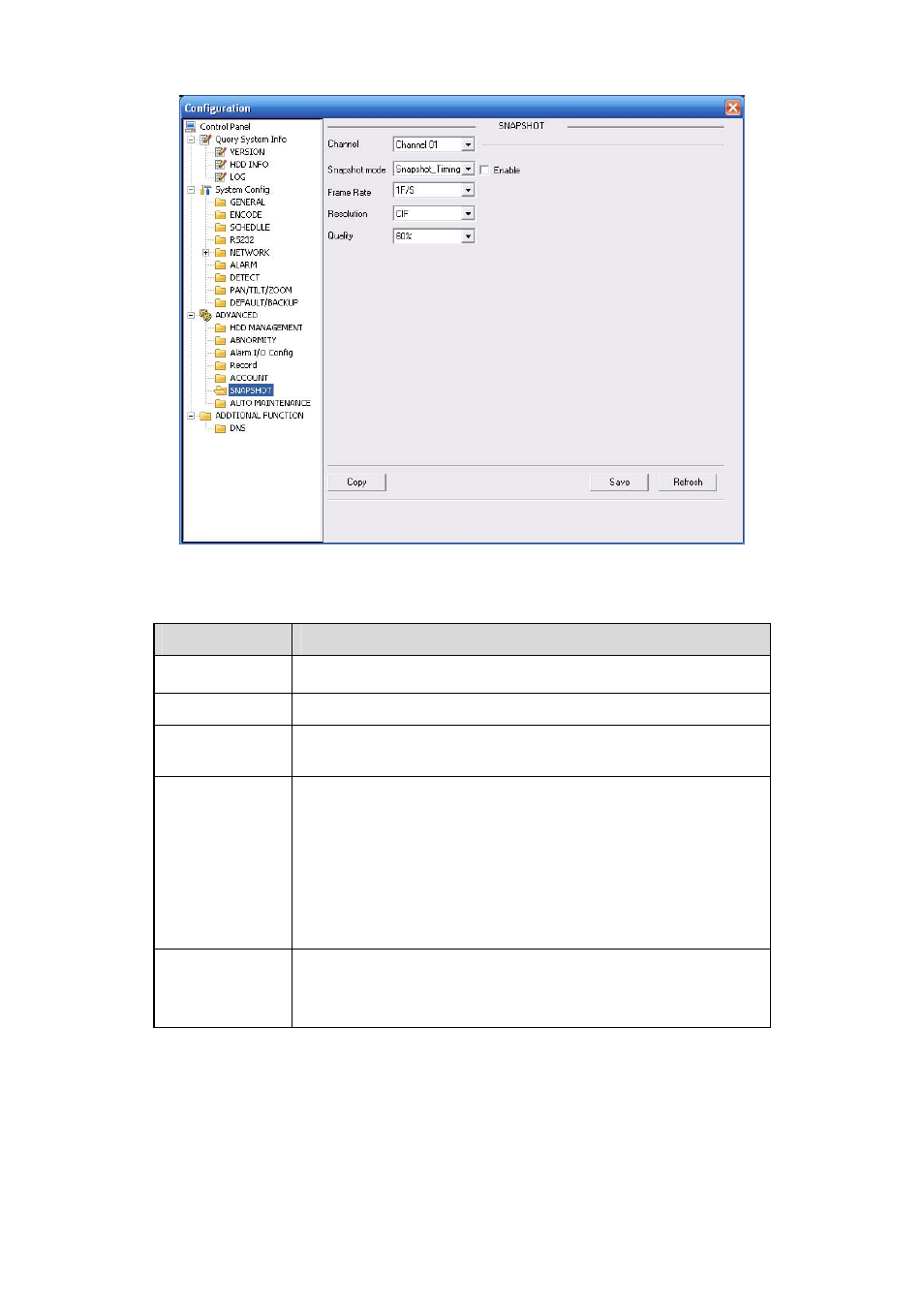

Figure 7-56
Please refer to the following sheet for detailed information.
Parameter Function
Channel It is the monitor channel.
Snapshot mode
There are two modes: Timing and activation.
Frame rate You can select from the dropdown list. The value ranges from
1f/s to 7f/s.
Resolution
You can select from the dropdown list.
The 1-Channel 1 and the 9-channel support
D1/HD1/2CIF/CIF/QCIF.
Channel 2 to channel 8, channel 10 to channel 16 supports
CIF/QCIF.
Note:
z
HD-SDI series product supports 1080P,720P,D1,HD1、
2CIF,CIF, QCIF.
z 960H series supports 960H/D1/HD1/2CIF/CIF/QCIF.
Quality
You can select from the dropdown list. Here is for you to set
video quality.
There are six options: 10％, 30％, 50％, 60％, 80％, 100％.
100% is the best quality.
7.5.3.7 Abnormity
The abnormity interface is shown as below. See Figure 7-57.
