43

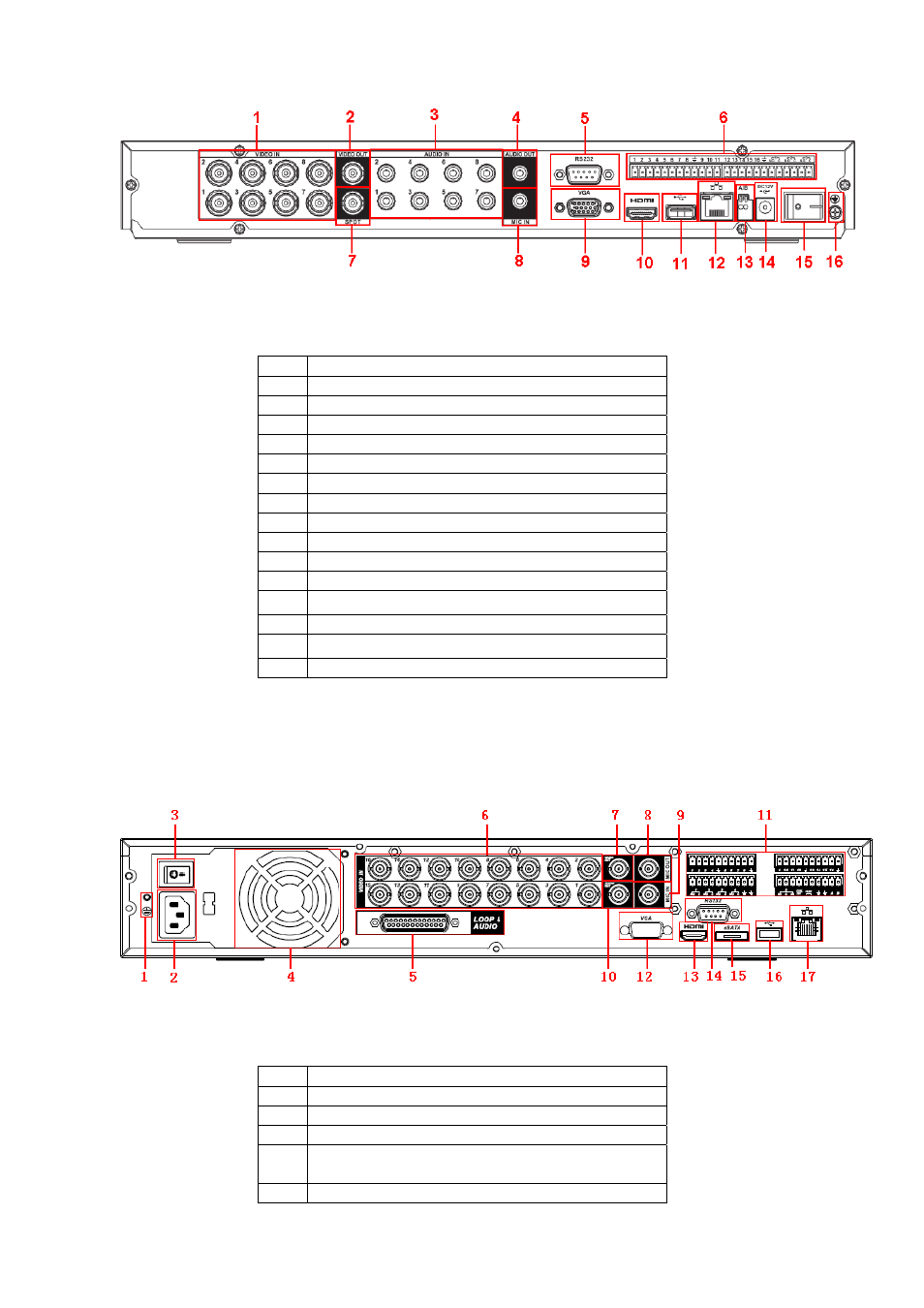

Figure 2-6
Please refer to the following sheet for detailed information.
1 Video input
2 Video output
3 Audio input
4 Audio output
5 RS232 port
6 Alarm input/alarm output
7 Video SPOT output
8 Bidirectional talk input
9 Video VGA output
10 HDMI port
11 USB port
12 Network port
13 RS485 port
14 Power input port
15 Power button
16 GND port
2.2.3 Full-D1 1.5U series
The rear panel is shown as in Figure 2-7.
The following figure is based on the 16-channel series product.
Figure 2-7
Please refer to the following sheet for detailed information.
1 GND port
2 Power input port
3 Power button
4 Fan
5
Audio input /Matrix video output/Loop video
output
6 Video input
