111
— Channel display: You can select system displays channel number or not when you playback.
Please click set button and then drag the title to the corresponding position in the screen.
— Copy：After you complete the setup, you can click Copy button to copy current setup to
other channel(s). You can see an interface is shown as in Figure 5-8. You can see current
channel number is grey. Please check the number to select the channel or you can check
the box ALL. Please click the OK button in Figure 5-8 and Figure 5-6 respectively to
complete the setup. Please note, once you check the All box, you set same encode setup for
all channels. Audio/video enable box, overlay button and the copy button is shield. See
Figure 5-9.
Please highlight icon to select the corresponding function.

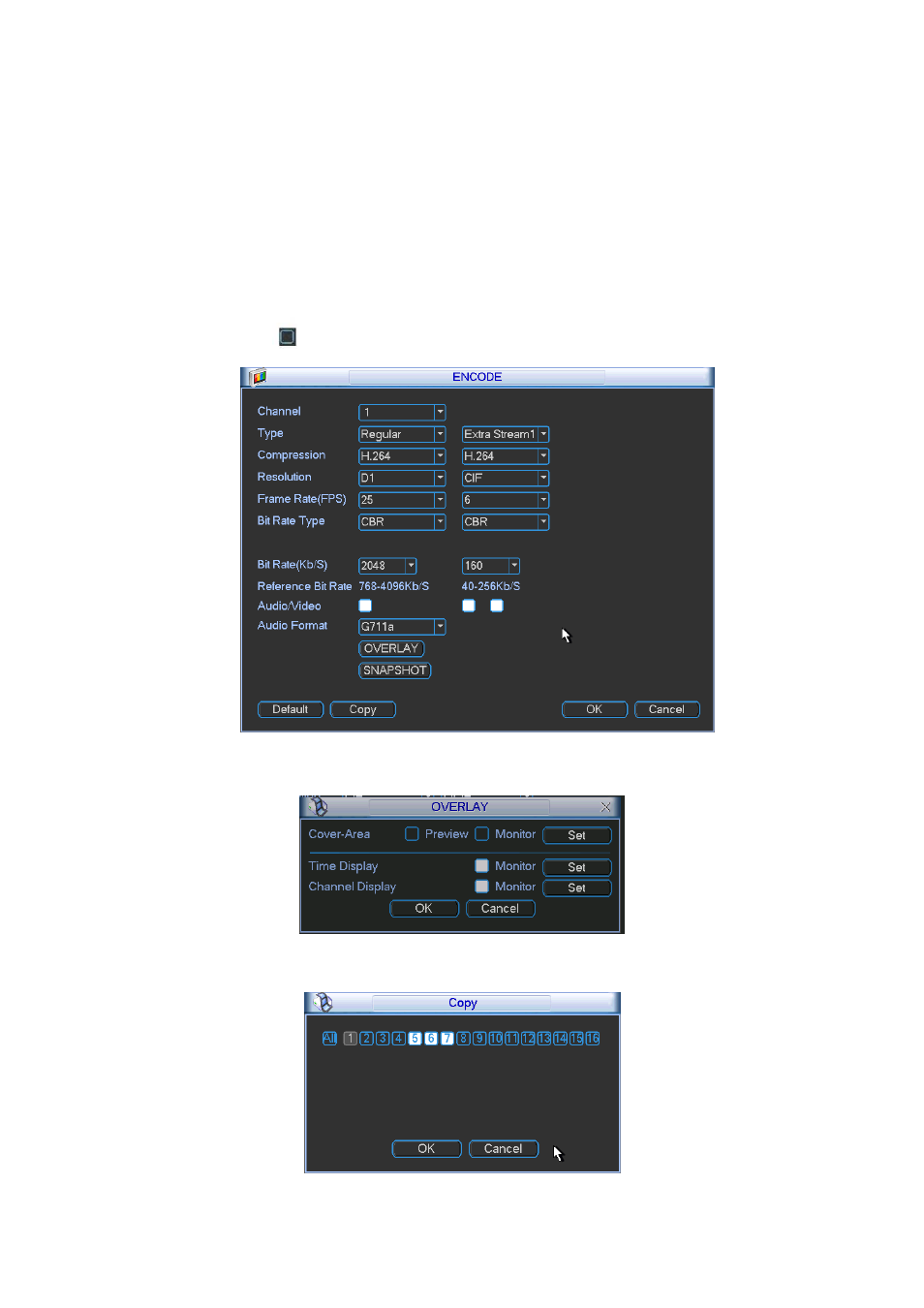

Figure 5-6
Figure 5-7
Figure 5-8
